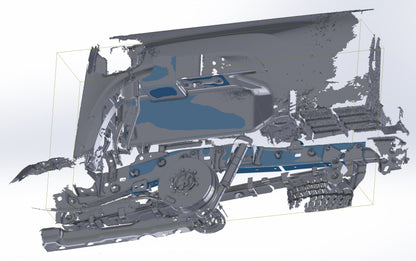

3D Scan: 2016-2023 Toyota Tacoma Rear Wheel Well and Suspension (TRD Off-Road)

3D Scan data is from a 2020 TRD Off-Road Toyota Tacoma. Scanning was completed with the axle on a jack stand, so the axle is approximately shown at ride height position.

Files Included:

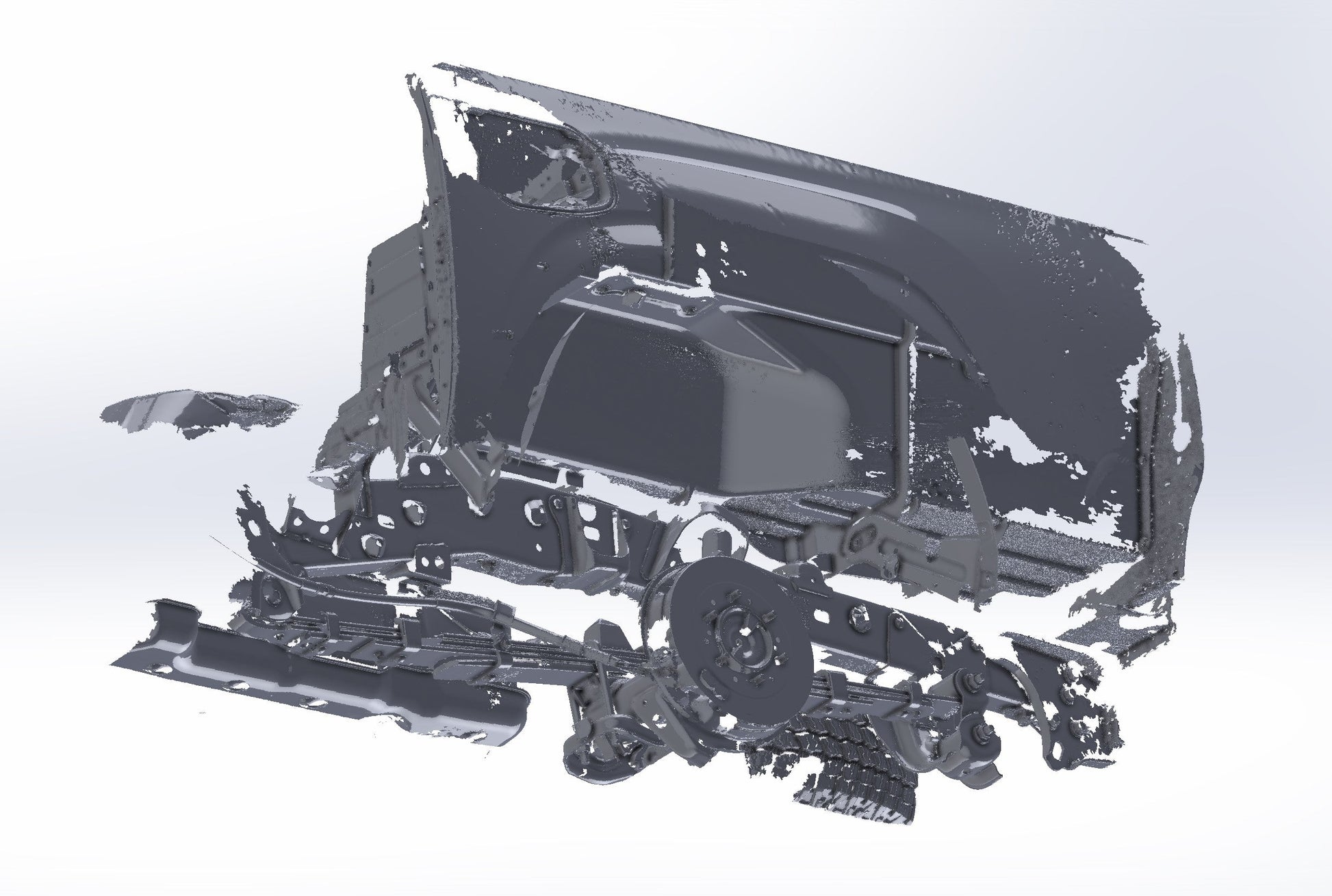

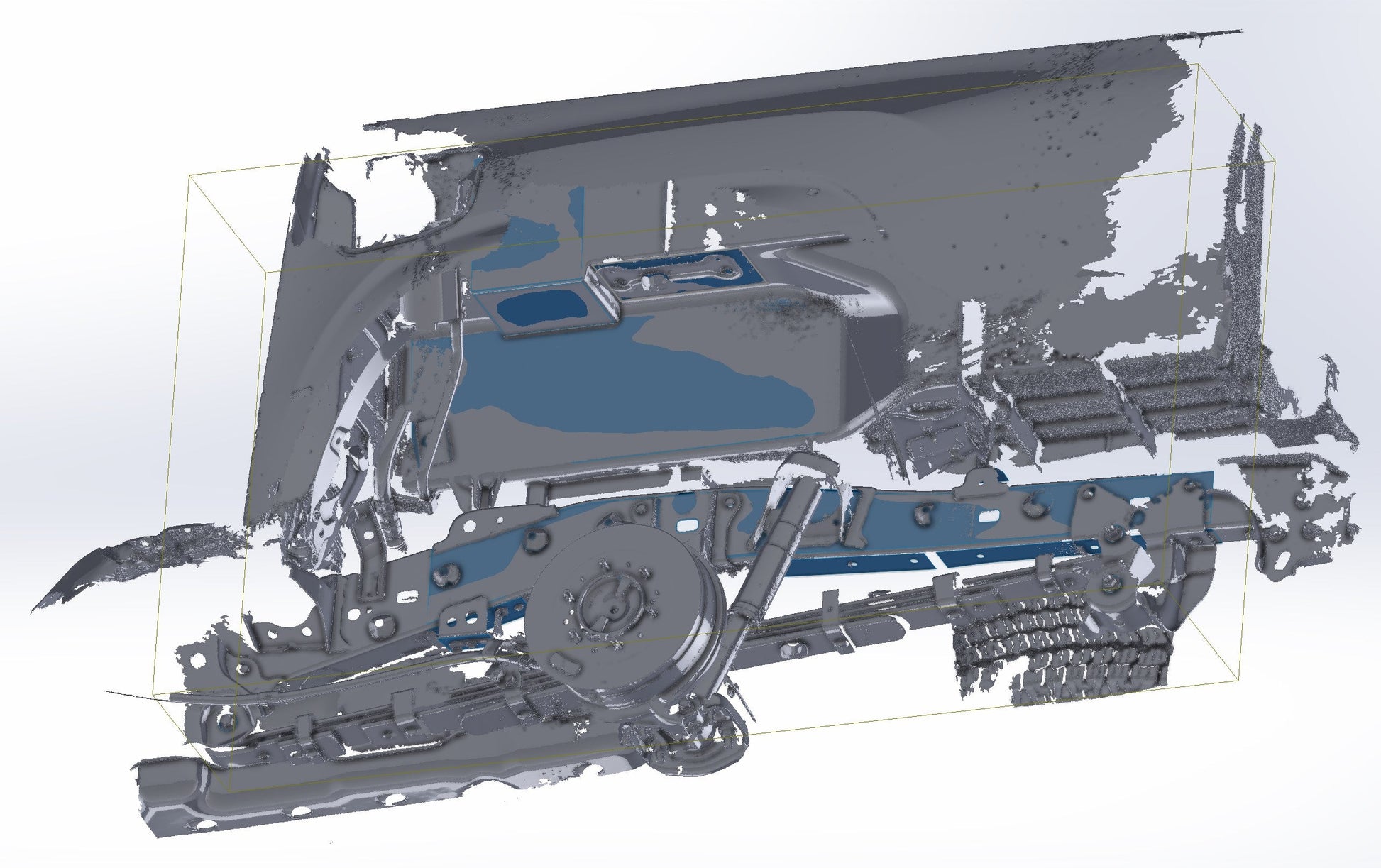

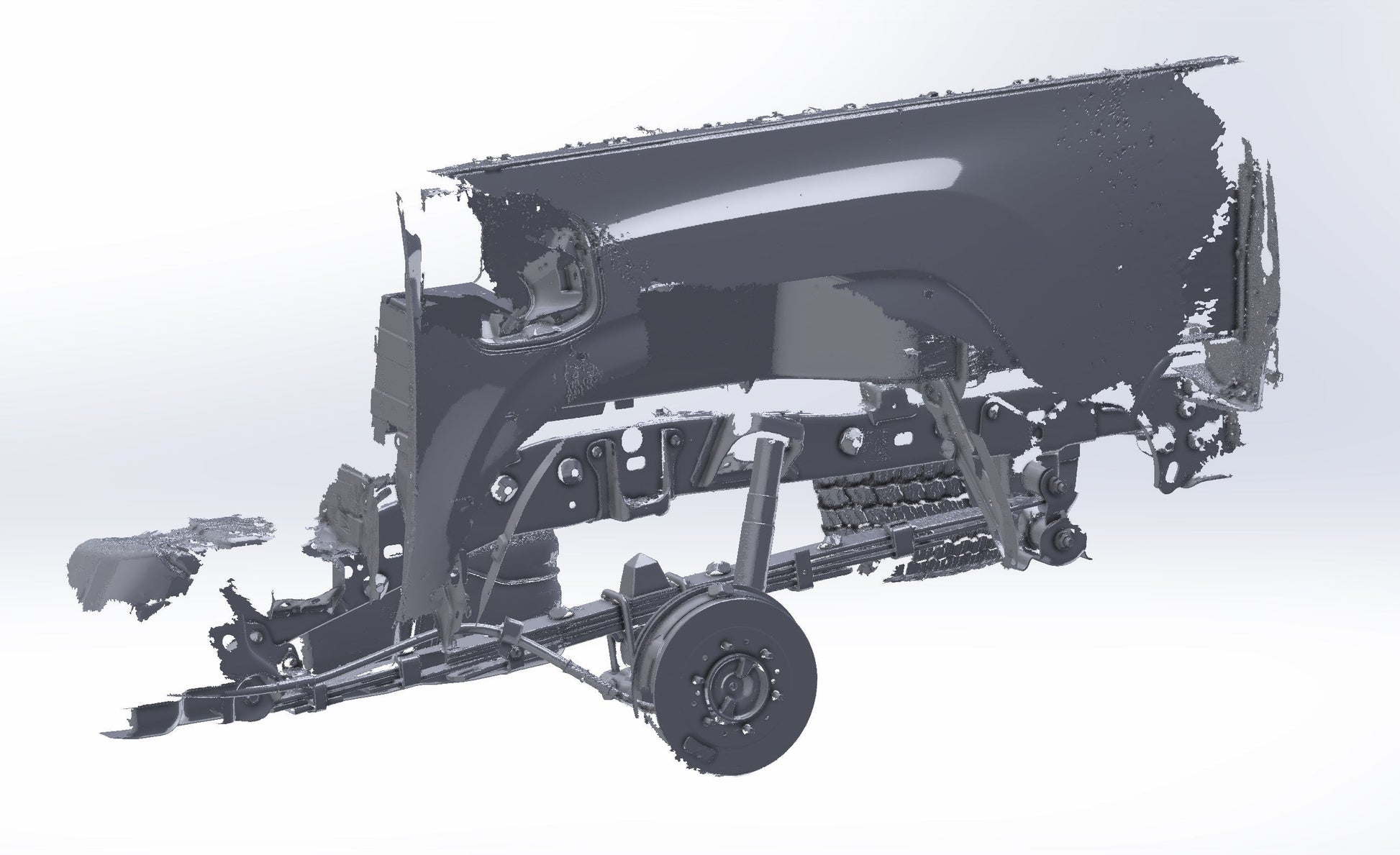

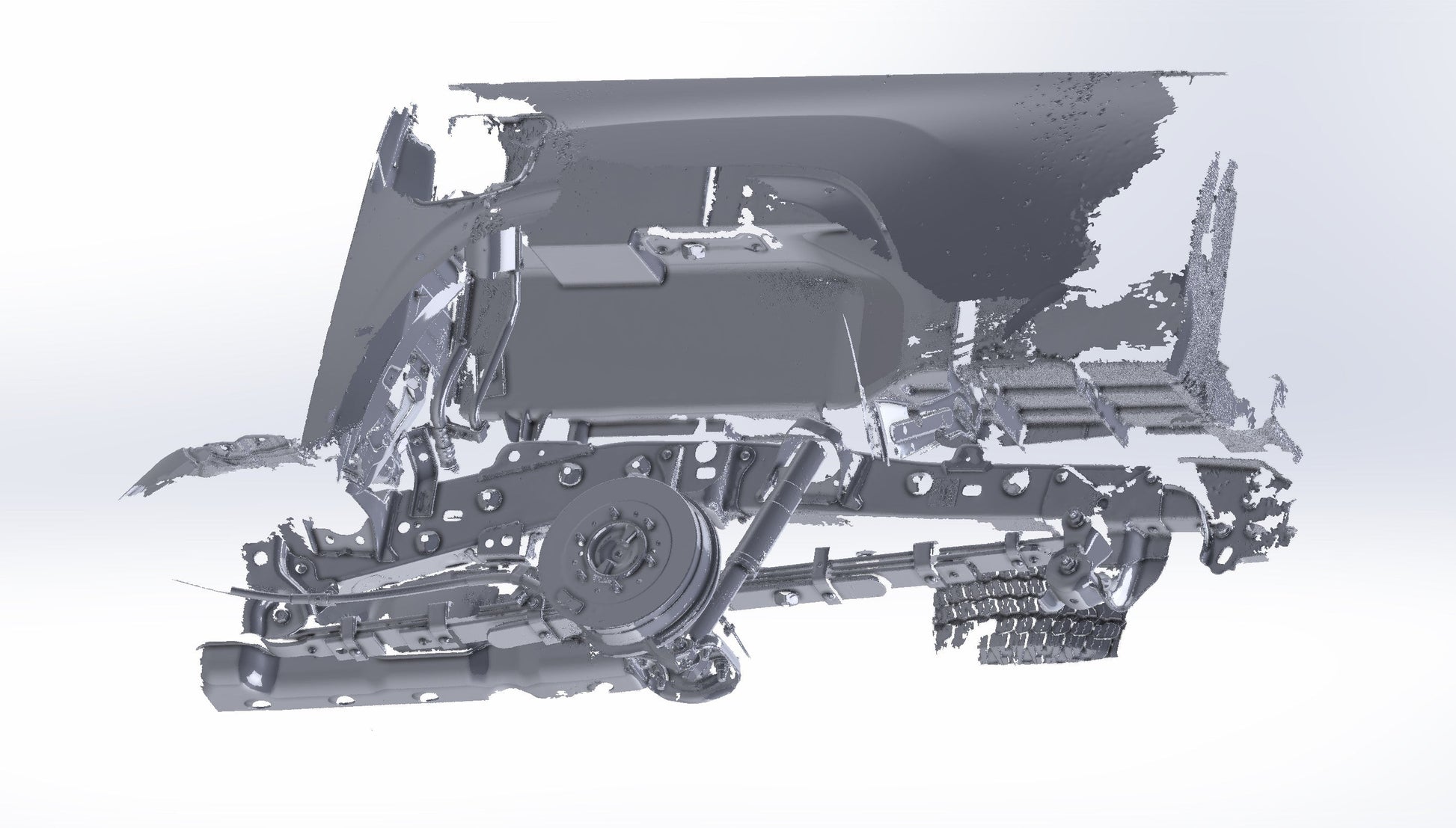

3GTAC-SURS-SD02-REAR WHEEL WELL.STL

• 3D scan file of outer rear axle, leaf springs, driver chassis frame rail, and partial fuel tank. Accuracy within 1/4" across chassis. Recommended to use OE chassis file when designing high tolerance components.


3GTAC-SURS-SD02-SOLIDS AND SURFACES.STEP

• Solid and surface body file defining planar geometry.
