3rd Gen Tacoma(16-23) - Stainless Brake LInes
3rd Gen Tacoma(16-23) - Stainless Brake LInes
Classic Mini DIY
Part #
HEL-TACOMA-BRAKES-OEM-CARBON
UPC #
Couldn't load pickup availability
Product Description
Product Description

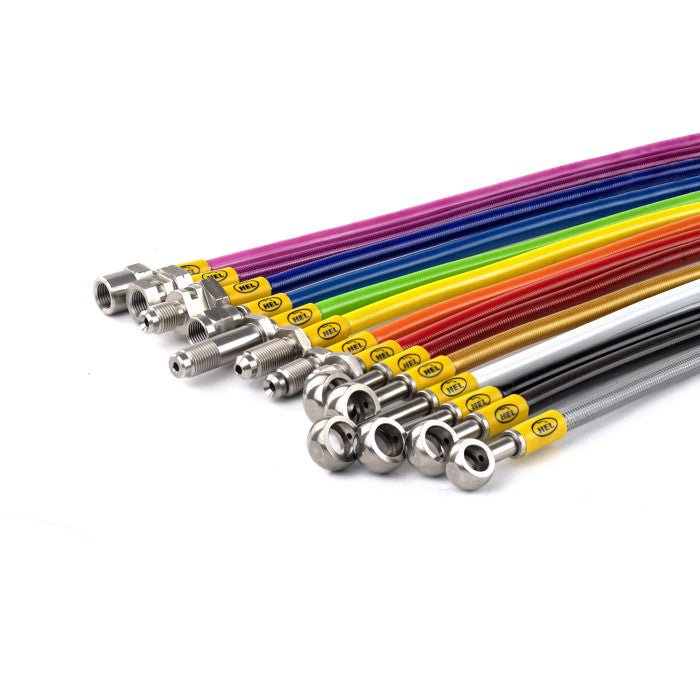

Classic Mini DIY is proud to carry an ultra-high quality HEL Braided 3rd Gen Tacoma stainless brake lines. Convert your 3rd Gen Tacoma to a beautiful, stylish, and reliable braided line that supports a variety of truck lifts. Offered in a wide array of colors with the OEM style fittings on each end.
These lines meet all brake line certifications for various locations across the world including being DOT Certified for use in the USA on road. Note this expects lines are installed per manufacturer specifications.
https://us.helperformance.com/certification

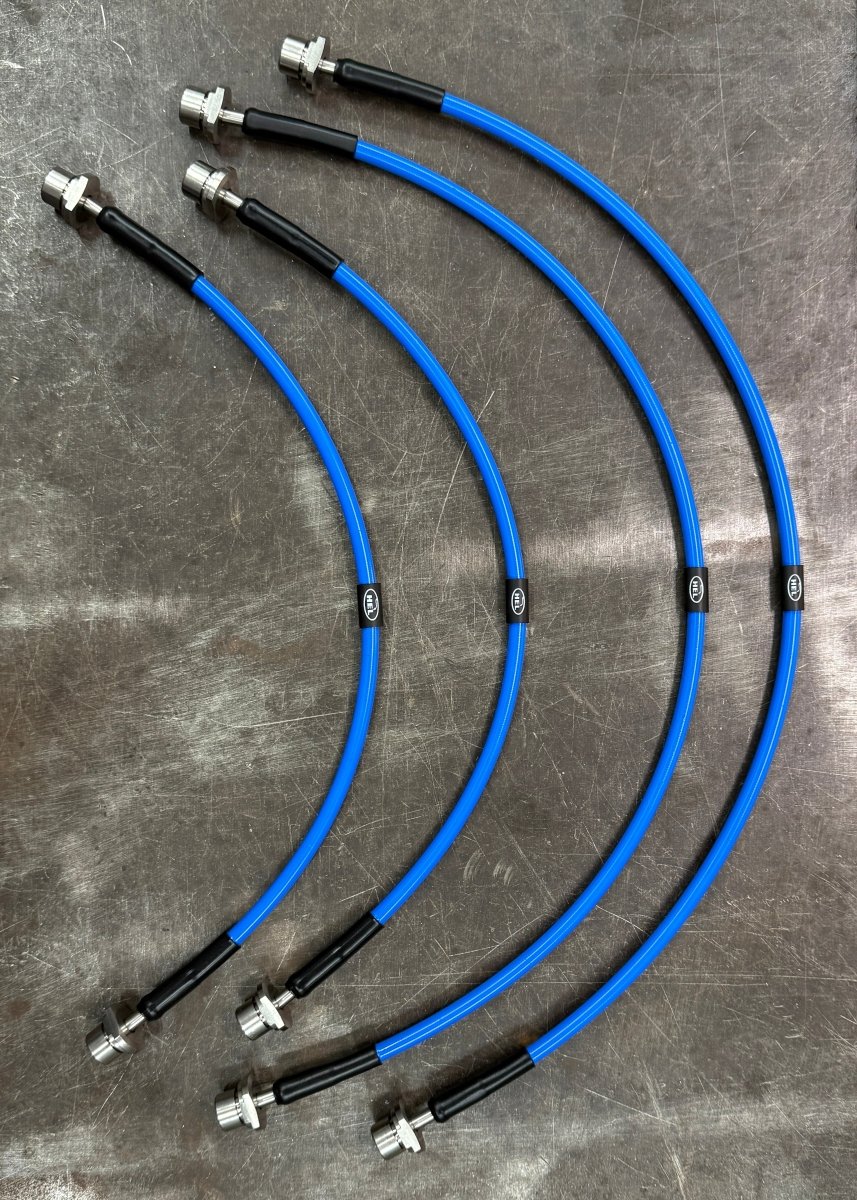

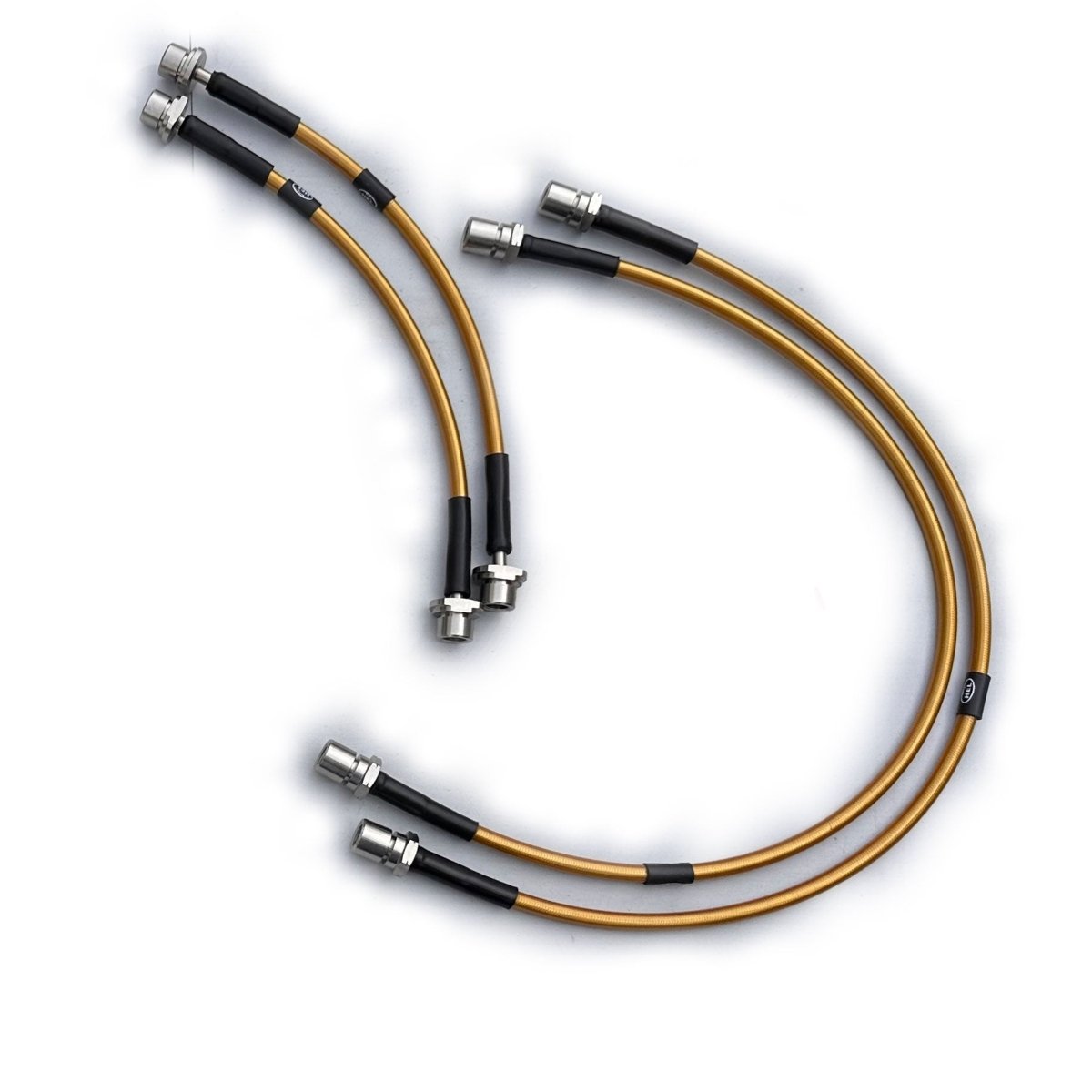

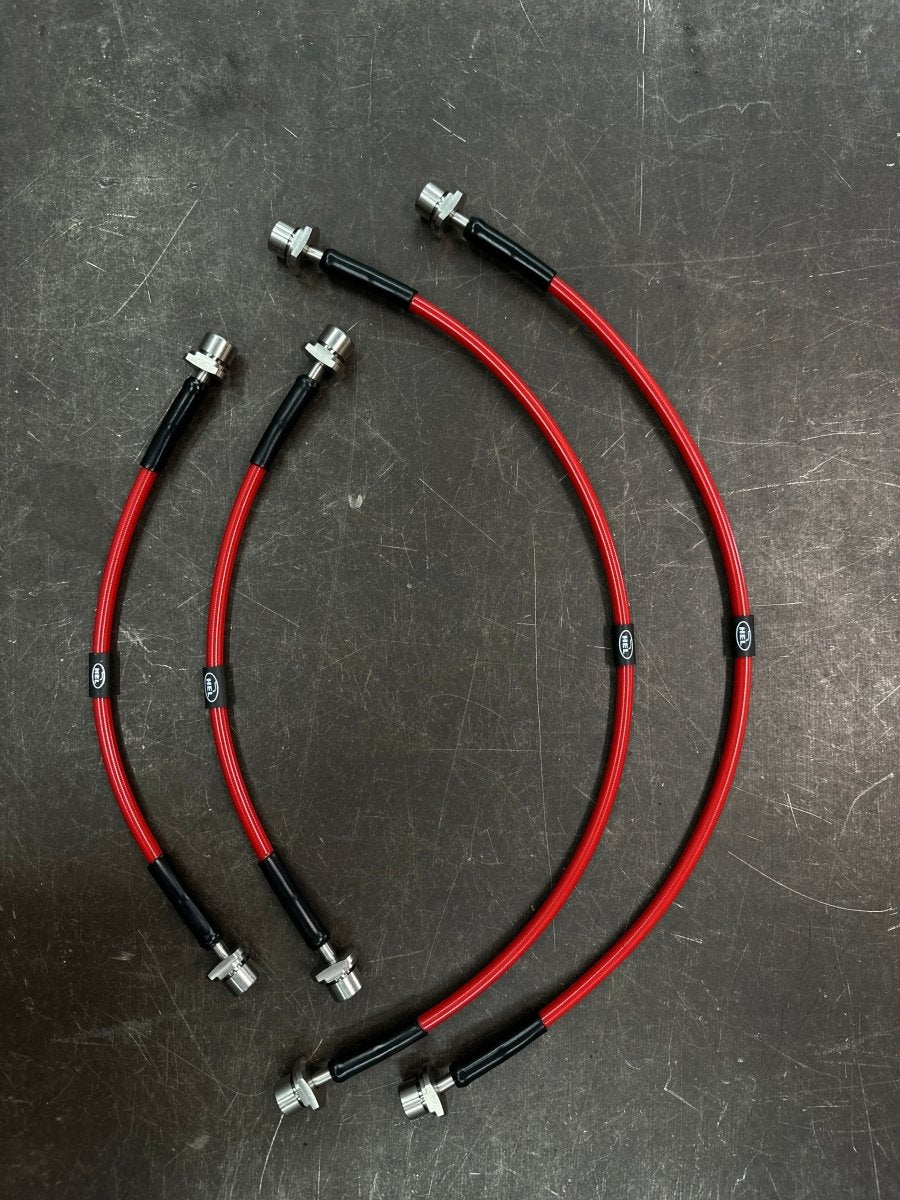

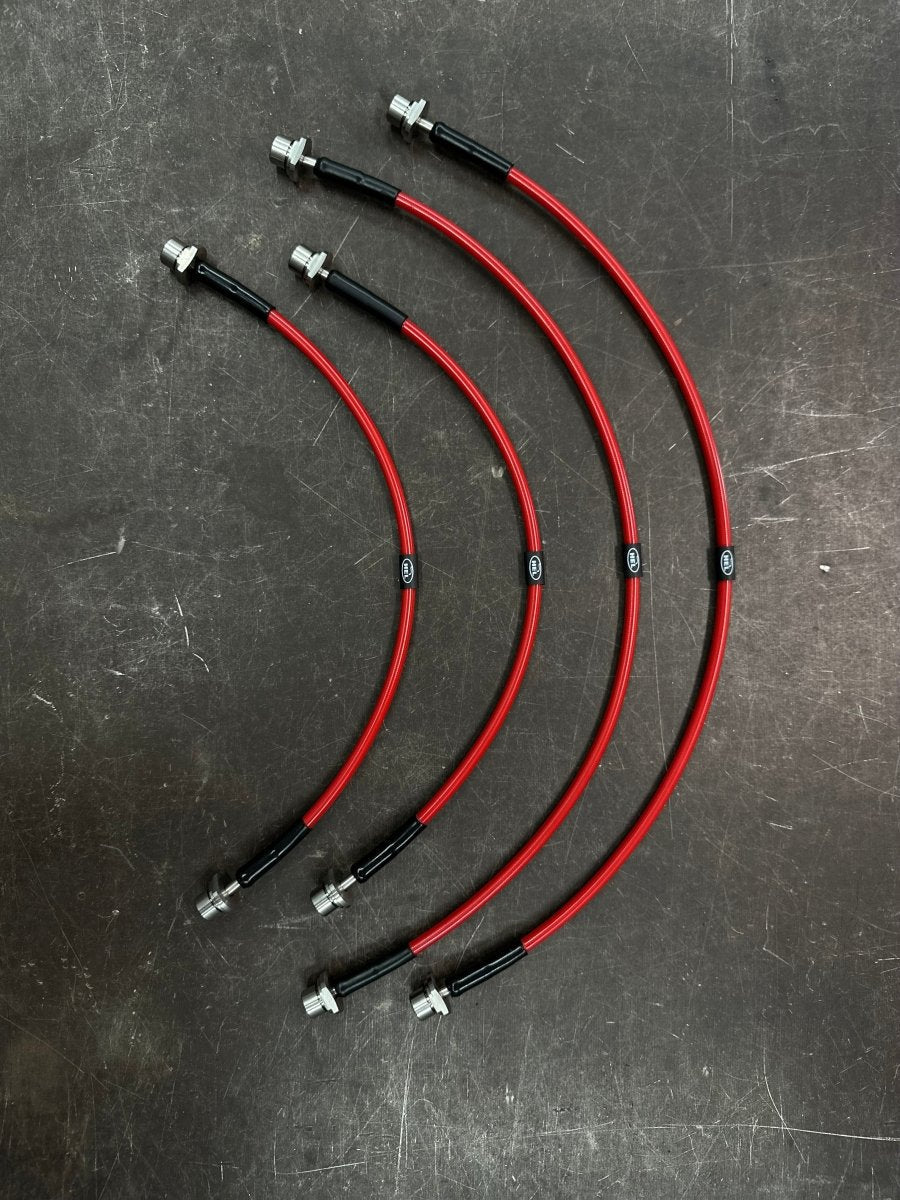

Kit Includes:
- Stainless Steel braided conversion lines
- 2 Front Lines
- 2 Rear Lines
- Existing Retainer Clips are reused
Which Lines do I need?
- OEM Ride Height - OEM Length (Can sometimes accommodate 2-2.5in lifts)
- Up to 4inch Lift - Extended
- Over 4inch Lift- Super Extended
Line Lengths
- OE Front - 12in
- OE Rear -20in
- Extended Front - 16.75in
- Extended Rear - 24in
- Ultra Extended Front - 20in
- Ultra Extended Rear - 29in
Specifications:
| Line inner material | PTFE |
| Line outer material | Stainless steel (303/304) and protective PVC cover |
| Fittings material | Stainless steel (303/304) |
| Temperature range | -70¡C to 260¡C (-94¡F to 500¡F) |
| Inside diameter | 3.5mm (0.138") |
| Outside diameter | 7.5mm (0.295") |
| Maximum working pressure | 290 Bar (4206 PSI) |
| Burst pressure | 870 Bar (12618 PSI) |
| Minimum bend radius | 38mm (1.496") |
Note: All HEL Stainless lines are built to order their normal turnaround time is approx 1-2 weeks depending on their current demand.
