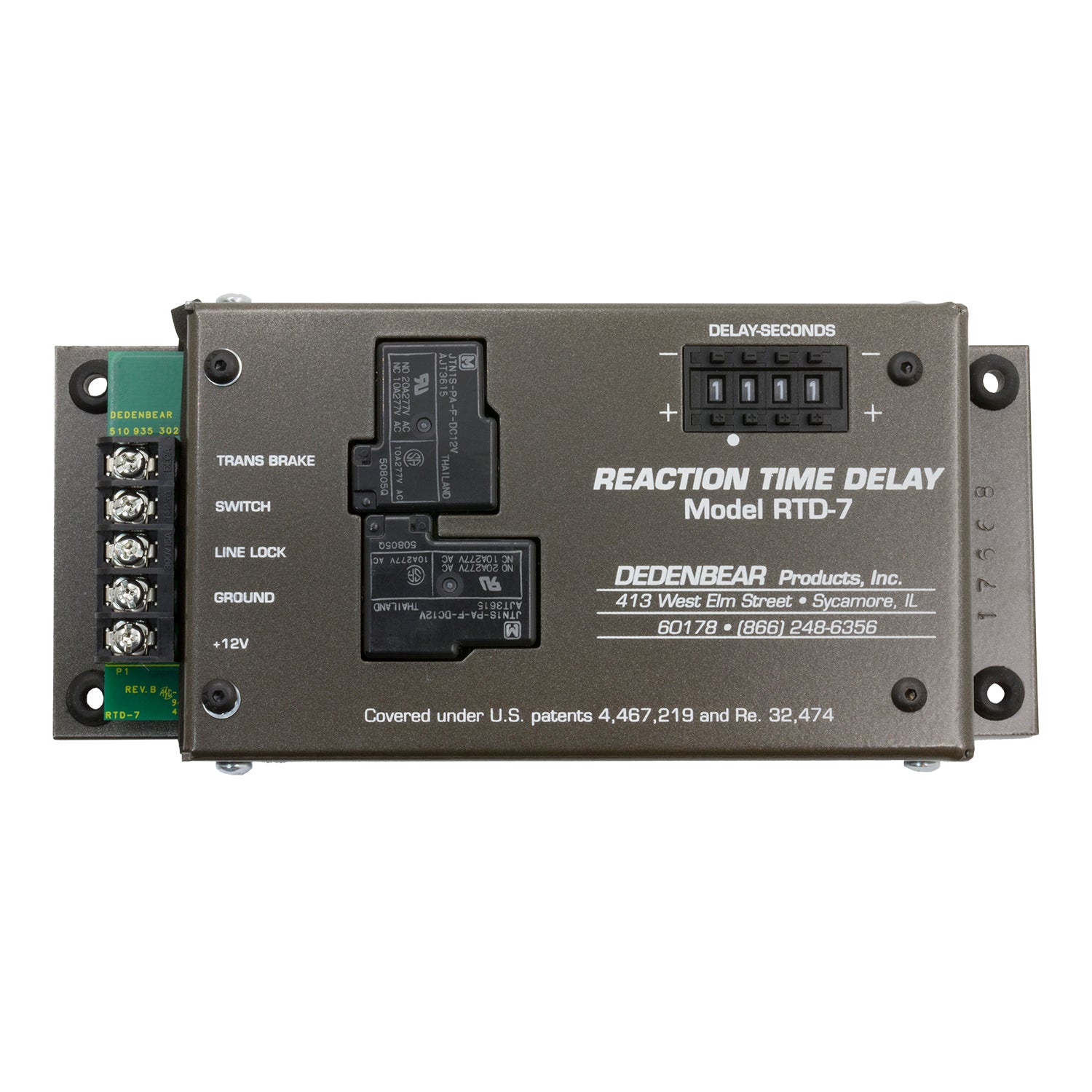

Dedenbear 4 DIGIT REACTION TIME DELAY RTD7

The Dedenbear RTD7 is the standard of the industry from the company that invented delay boxes - and holds the US patent on the whole theory! Engineered for use with 12 or 16 volt electrical systems, splicing into your existing transbrake and/or roll control circuits.

• Dedenbears Quartz Crystal Timer Ensures Optimum Accuracy Under All Conditions.
• Four push button thumbwheels let you quickly select any delay up to 9.999 seconds.
• Early release protection standard.
• Full 12V to transbrake with no voltage drop through the delay box
• Complete wiring diagram and delay setting tips included.
• Mountable in any position, even upside down for overhead locations. Measures 7.57 in. W x 3.38 in. H x 1.25 in. D.
• No special wiring or batteries required.
• Dedenbears Exclusive Ignition Noise Filters Permit Use With Solid Core Plug Wires And All Types Of Ignition Systems, Including Magnetos!
• The Rtd7S 30A Capability Will Easily Handle Any Transbrake.

Attributes:

• GTIN: 00046074164705
• Brand Name: Dedenbear
• Add-On: SC2;SC3;SC4
• Size - Metric - MM: 193mm x 86mm x 32mm
• Size - Standard - IN: 7.57in x 3.38in x 1.25in

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 12 x 4 inches
• Weight: 1.55 lb
