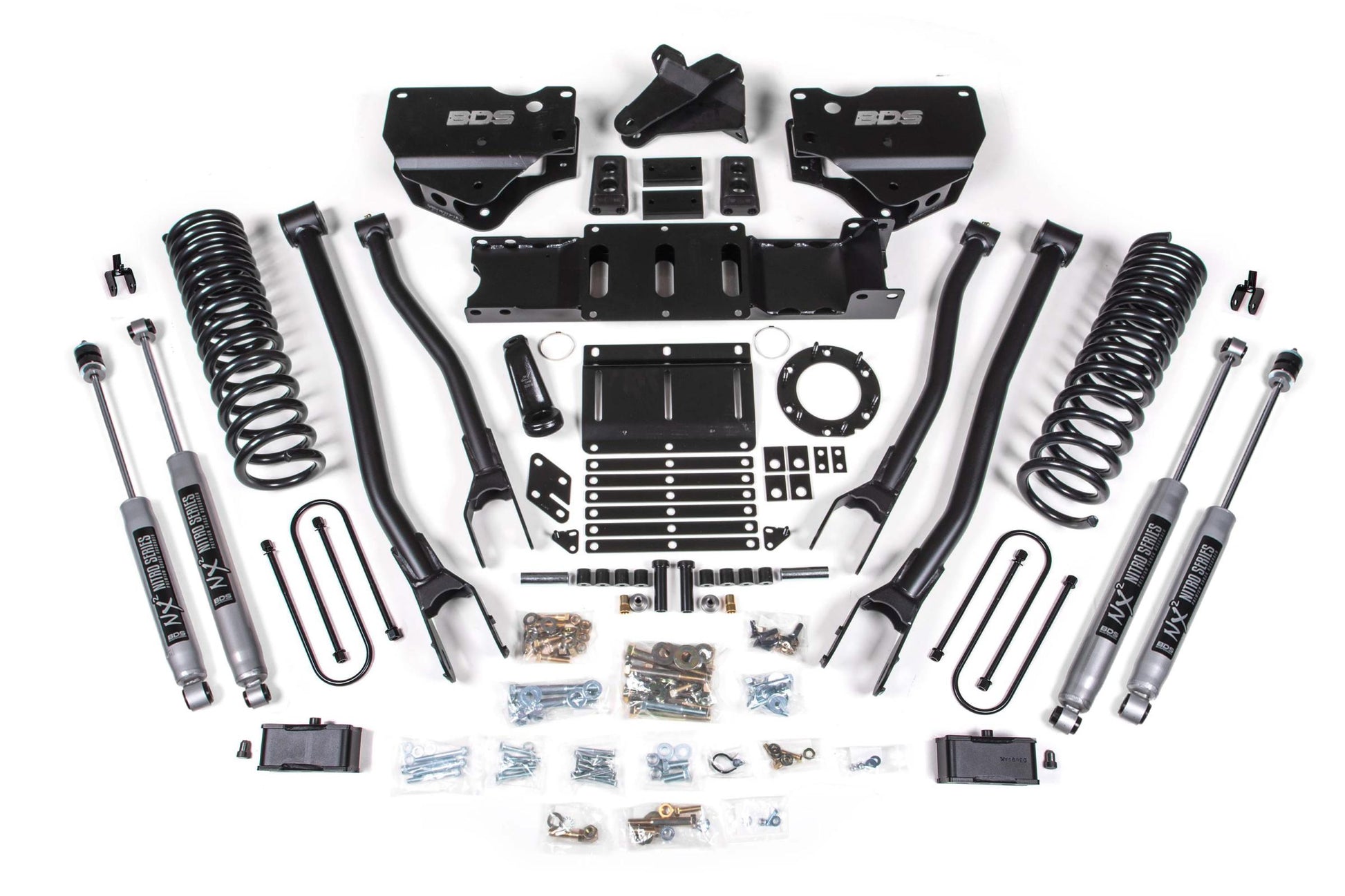

BDS SUSPENSION 4 Inch Lift Kit W/ 4-Link - Ram 3500 (19-24) 4WD - Diesel BDS1668FPE

Name: BDS SUSPENSION 4 Inch Lift Kit W/ 4-Link - Ram 3500 (19-24) 4WD - Diesel BDS1668FPE
Brand: BDS SUSPENSION
SKU: BDS1668FPE
Price: 5512.65 USD
Availability: InStock

BDS SUSPENSION

Part #
BDS1668FPE
UPC #
840416402308

$5,512.65 USD

~~$5,512.65 USD~~ $5,512.65 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

To optimize steering geometry once lifted a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Heavy duty 4-link improve strength handling and caster control
Front high strength dual rate coil springs for a great ride on any terrain
Front track bar relocation bracket to re-position axle
Forged drop pitman arm to correct steering angles
Front sway bar correction to maintain handling performance
HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Attributes

GTIN: 00840416406412
Brand Name: BDS Suspension
Front Lift Height: 4
Front Lift Method: Coil Spring
Indexing Ring Option0: 8 Bolt
Installation Difficulty: moderate
Installation Time: 7-9 Hrs
Installation Tools: Cut Off Wheel or Equiv-bit unibit Step Drill Bit-drill-puller pitmanArm-welder
Rear Lift Height: 3
Rear Lift Method: Block
Rear Lift Option: Without Factory Rear Overload Leaf
Shocks Included1: Yes
