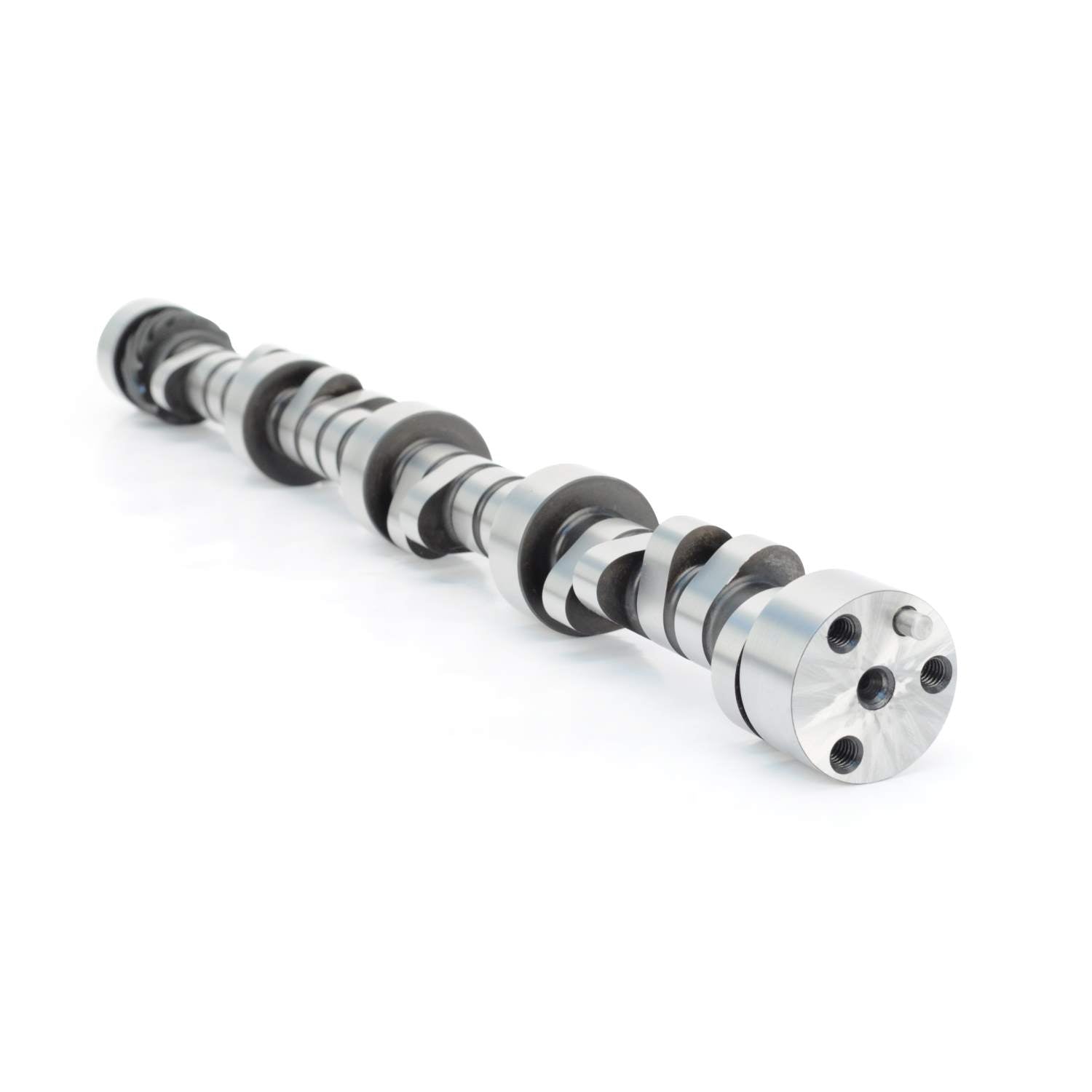

COMP Cams 4-Pattern 258/268 IB 260/270 OB Hydraulic Roller Cam for Chevrolet Small Block COMP-12-477-44

Attributes:

• GTIN: 00036584259688
• Brand Name: COMP Cams
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: 4-Pattern Small Base Circle
• Usage: Street/Strip
• Cam Type: Hydraulic Roller
• Grind Number: 311QS10
• Basic Operating RPM Range: 3200-7,500
• Inboard Intake Duration at .050 Inch Lift: 258
• Outboard Intake Duration at .050 Inch Lift: 260
• Inboard Exhaust Duration at .050 inch Lift: 268
• Outboard Exhaust Duration at .050 inch Lift: 270
• Advertised Inboard Intake Duration: 311
• Advertised Outboard Intake Duration: 313
• Advertised Inboard Exhaust Duration: 323
• Advertised Outboard Exhaust Duration: 325
• Inboard Intake Valve Lift: 0.637
• Outboard Intake Valve Lift: 0.637
• Inboard Exhaust Valve Lift: 0.621
• Outboard Exhaust Valve Lift: 0.621
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
• Lifter Type: Hydraulic Roller
• Amazon ASIN: B00CWZUWVI
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 6.5 x 2.75 inches
• Weight: 9.15 lb
