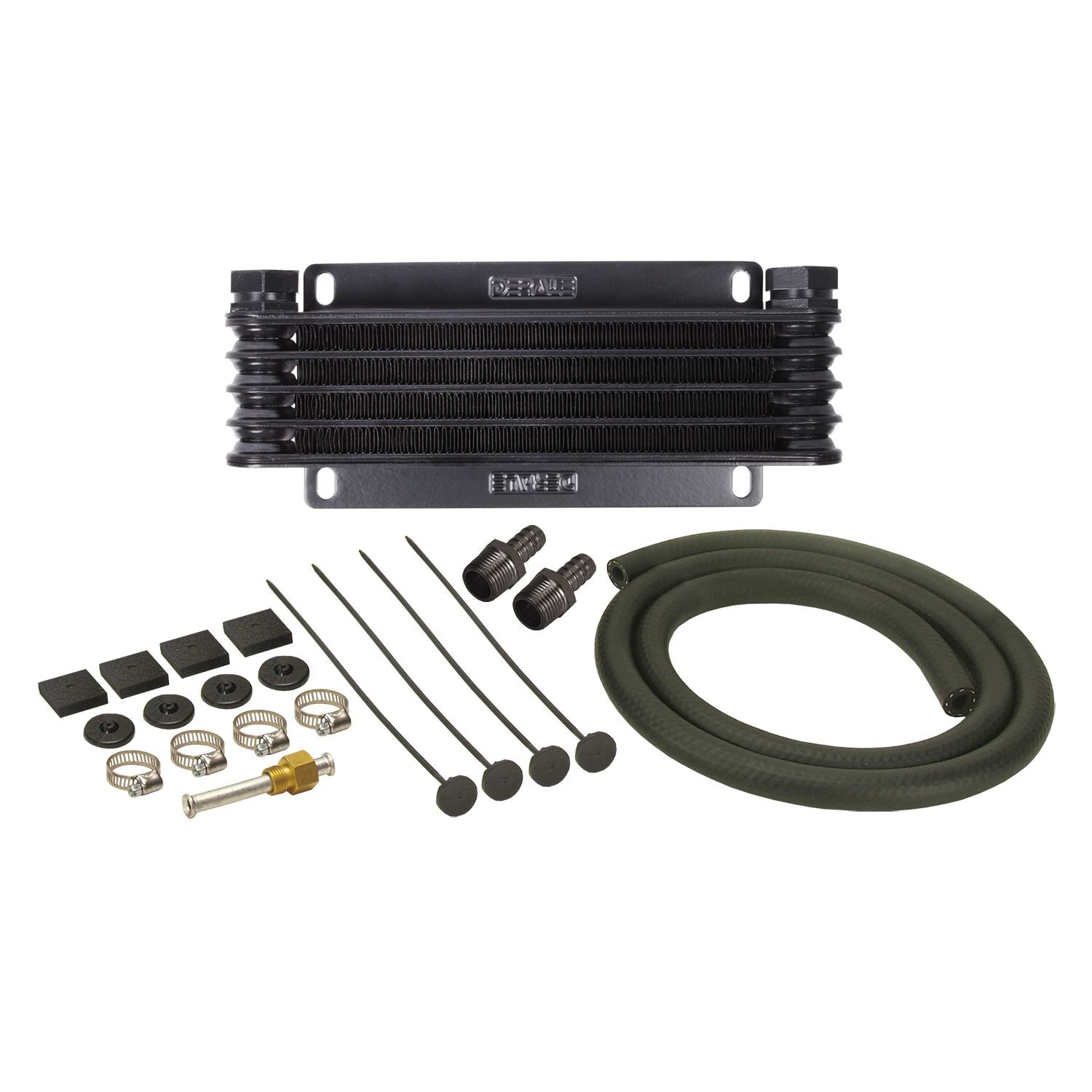

Derale 5 Row Series 9000 Plate & Fin Transmission Cooler Kit, 1/2" NPT 13611

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Attributes:

• GTIN: 00083277136115
• Brand Name: Derale
• Color: Black
• Cooler style: Plate & Fin
• Depth: 1-1/4
• Fitting size: 3/8 barb
• GVW: 16000
• Height: 4-1/8
• Hose length: 4
• Hose size: 3/8
• Inlet dim: 8-1/2
• Inlet size: 1/2 NPT female
• Material: Aluminum
• Mounting: 6-11/16 x 3-5/16
• Width: 9-3/4
• BTU: 12500

Extended Information:

• Country of Origin: China
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18.625 x 8 x 2.125 inches
• Weight: 2.75 lb
