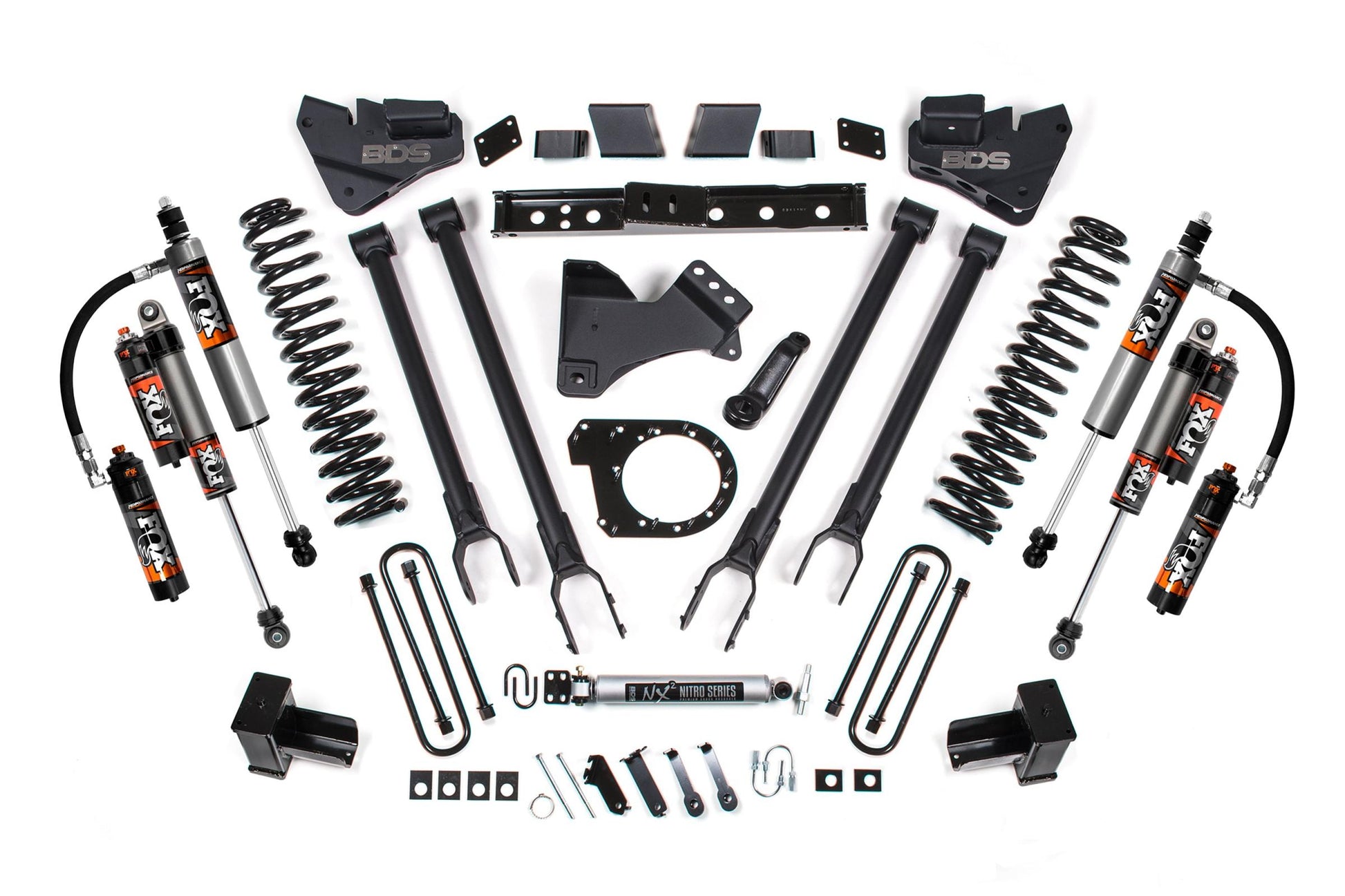

BDS SUSPENSION 6 Inch Lift Kit - 4-Link Conversion - Ford F250/F350 Super Duty (17-19) 4WD - Diesel BDS2225FPE

BDS SUSPENSION 6 Inch Lift Kit - 4-Link Conversion - Ford F250/F350 Super Duty (17-19) 4WD - Diesel BDS2225FPE

BDS SUSPENSION

Part # BDS2225FPE
UPC # 840416401622

$5,630.60 USD
$5,982.66 USD $5,630.60 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

At this height driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally a high clearance transmission crossmember supplied to allow sufficient clearance.
  • Easy 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling stability strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
  • GTIN: 00840416413847
  • Brand Name: BDS Suspension
  • Front Lift Height: 6
  • Front Lift Method: Coil Spring
  • Installation Difficulty: difficult
  • Installation Time: 8-10 Hrs
  • Installation Tools: 30mm socket-drill-puller pitmanArm
  • Rear Lift Height: 5
  • Rear Lift Method: Block
  • Rear Lift Option: 5 Inch Block with 3 Leaf Main
  • Shocks Included0: Yes
  • Country of Origin: US
  • Emissions : 4
  • Life Cycle Status: Available To Order
  • Quantity of Each: 1
  • Package UOM: EA
  • Weight: 0 lb

PDF:
