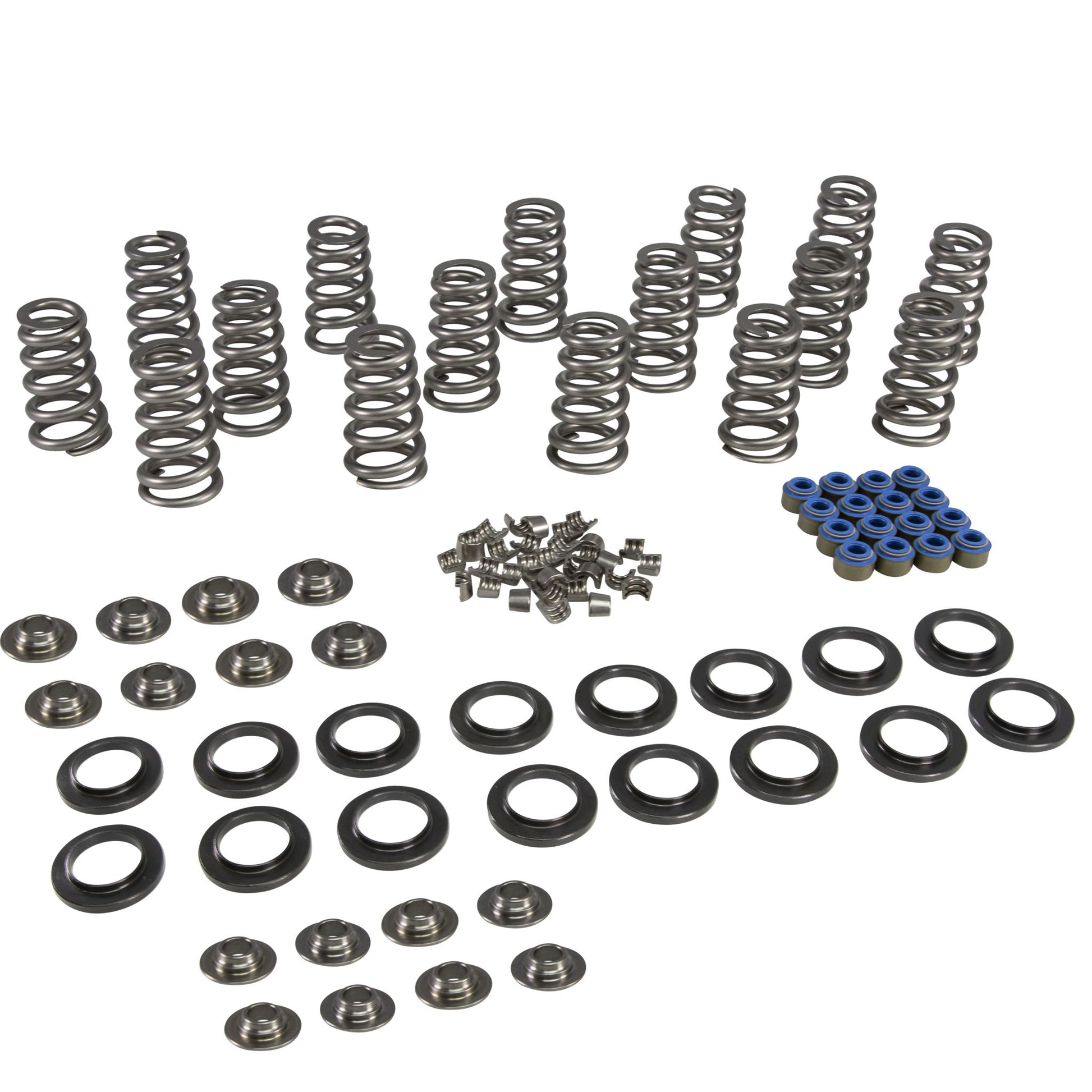

COMP Cams .660" Lift Conical Spring Kit w/ Ti Retainers for '09-'18 Dodge 5.7L HEMI COMP-7230TC-KIT

Attributes:

• GTIN: 00036584399353
• Brand Name: COMP Cams
• Includes Shims?: No
• Free Length: 2.179
• Spring Style: CONICAL
• Valve Spring Series: CONICAL
• Damper: NA
• Retainer Material: Titanium
• Includes Retainers?: Yes
• Spring Seat Type: Chromemoly Steel
• Included Seats: 4678
• Includes Seats?: Yes
• Spring Rate: 519
• Open Load: 484
• Seat Pressure: 145
• Installed Height: 1.900
• Coil Bind Height: 1.175
• ID Small End: 0.660
• ID Big End: 0.932
• OD Small End: 1.0600
• OD Big End: 1.332
• Number of Springs: 16
• Max Lift: 0.660

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 12 x 3 x 6 inches
• Weight: 4.1 lb
