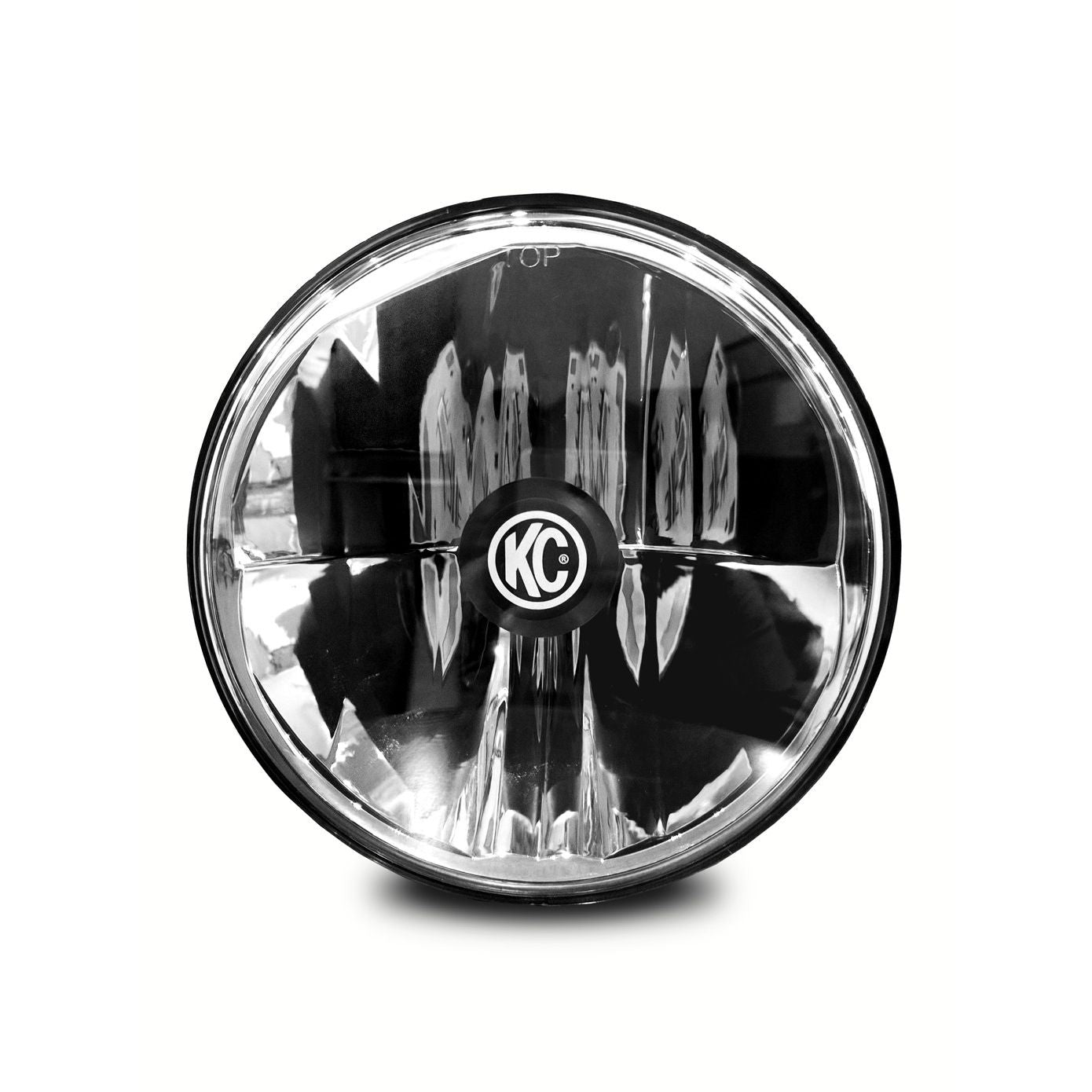

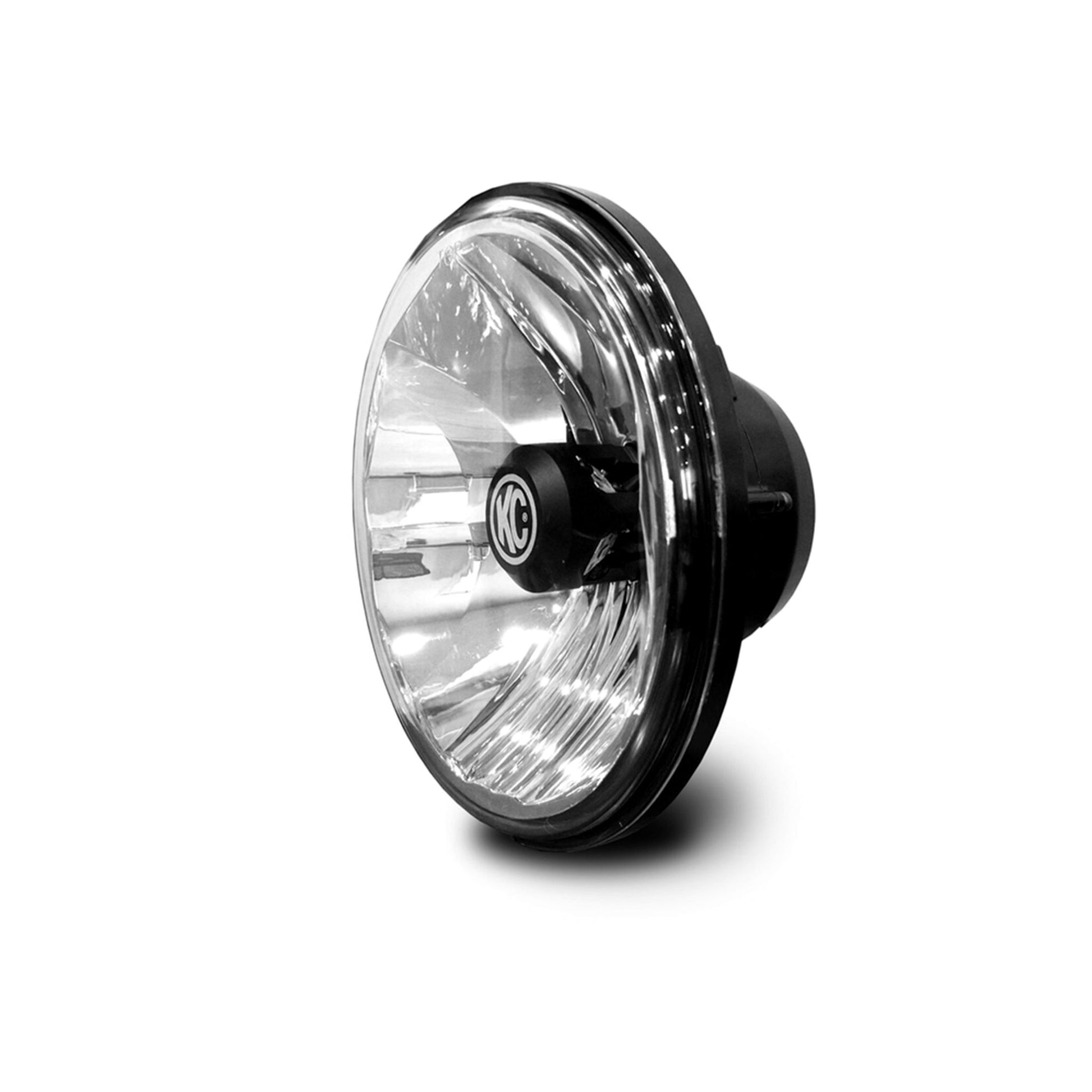

KC HiLiTES 7 in Gravity LED - Single Headlight - SAE/ECE - 40W Driving Beam - for 97-06 Jeep TJ 4236

KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 1997-2006 Jeep Wrangler TJ headlights. Not to mention our lights work with other 7 in round headlight openings on various vehicles, with simple H4 connectors.40 Amp5 PoleEasy To InstallKC 12v Relay Surrounding our Gravity(R) LED 7 in Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.

• DOT Compliant Low Beam, High Beam and Day Running Light
• Hard Coated Polycarbonate Lens
• KC Engineered Polished Reflector Optics
• Full Plug-n-Play for 97-06 Jeep TJ Wrangler
• Plug and Play Connector, Jeep TJ/Universal- H4
• Precision Die-Cast Aluminum Housing

Attributes:

• GTIN: 00084709042363
• Brand Name: KC HiLiTES
• Add-On: N/A
• Amp Draw: 1.88A
• Beam Distance (Meters): Low 407m, High 557m
• Beam Pattern: Headlight
• Candela: Low- 41,500 Cd, High- 77,500 Cd
• Color Temperature: 5000K
• Compliance: SAE J851 ECE-R112
• IP Rating: IP68
• LED Bulb: CREE XHP35 HI and Nichia
• LED Source: CREE XHP35 HI and Nichia
• Light Temp: 5000K
• Lumens: 1260
• Lux at 10 Meters: Low 415 lx, High 775 lx
• Lux at 10 Meters: Low 415 lx, High 775 lx
• Lux: Low- 415, High- 775
• Parts Included: Plug-n-Play Connector Jeep TJ/Universal H4
• Product Dimensions: W 6.96 in x D 3.72 in
• Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Voltage: 9V-18V
• Wattage: Low- 18W, High- 22W

Extended Information:

• Country of Origin: Taiwan
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7.25 x 7.25 x 7 inches
• Weight: 3 lb
