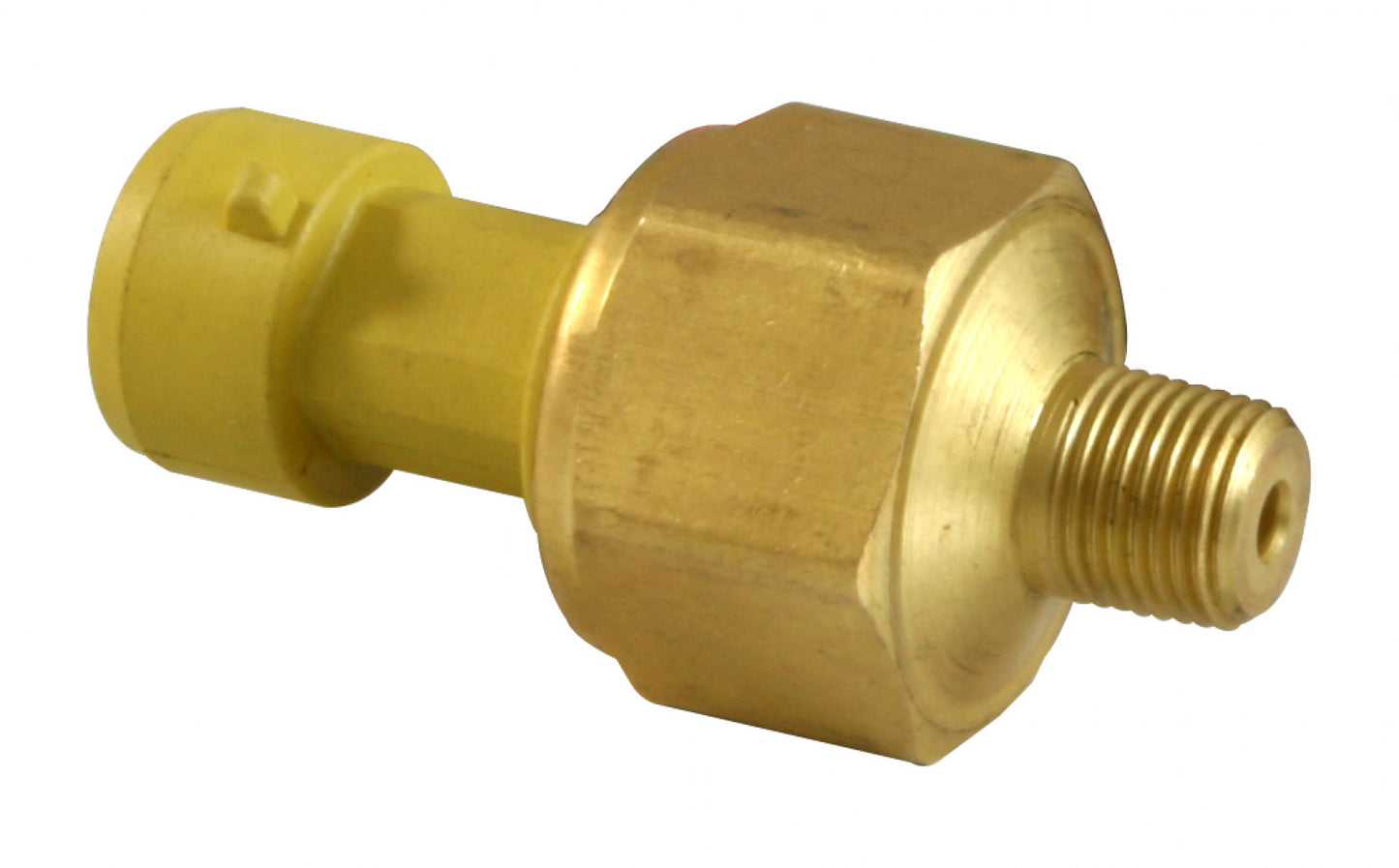

AEM 100 PSIg Brass Pressure Sensor Kit 30-2131-100

AEM 100 PSIg Brass Pressure Sensor Kit 30-2131-100

AEM ELECTRONICS

Part # 30-2131-100
UPC # 840879019969

$79.95 USD
$89.95 USD $79.95 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

Brass sensors are a more economical choice usable in many applications where extreme accuracy isn't required and +/- 3% accuracy vs. stainless steel's +/- 1% is appropriate. AEM's brass sensor kits contain the sensor, connector and pins.

Specifications:

  • Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
  • Operating Temp: -40C to 105C / -40F to 221F
  • Burst Pressure: 200PSI
  • Response Time: < 1ms
  • Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
  • Sensor Body: Stainless Steel
  • Wetted Materials: 304L & 316L Stainless Steel
  • Thread: 1/8" NPT Male Thread
  • Weight: < 85 Grams
  • Supply Current:
  • Output: .5 to 4.5Vdc Linear
  • Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
  • Includes: 100 PSIg Stainless Sensor, Connector, Pins & Pin Lock
