AEM 15 PSIa / 1 Bar Stainless Steel Pressure Sensor Kit 30-2130-15

AEM 15 PSIa / 1 Bar Stainless Steel Pressure Sensor Kit 30-2130-15

AEM ELECTRONICS

Part # 30-2130-15
UPC # 840879016265

$154.95 USD
$174.95 USD $154.95 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

Stainless steel sensors are recommended when the greatest accuracy is required, for example to measure manifold air pressure. AEM's sensor kits contain everything you need to mount a sensor, including connector, pins and 1/8 NPT fittings.


Specifications:
  • Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
  • Operating Temp: -40C to 105C / -40F to 221F
  • Burst Pressure: 150PSI
  • Response Time: < 1ms
  • Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
  • Sensor Body: Stainless Steel
  • Wetted Materials: 304L & 316L Stainless Steel
  • Thread: 1/8" NPT Male Thread
  • Weight: < 85 Grams
  • Supply Current:
  • Output: .5 to 4.5Vdc Linear
  • Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock

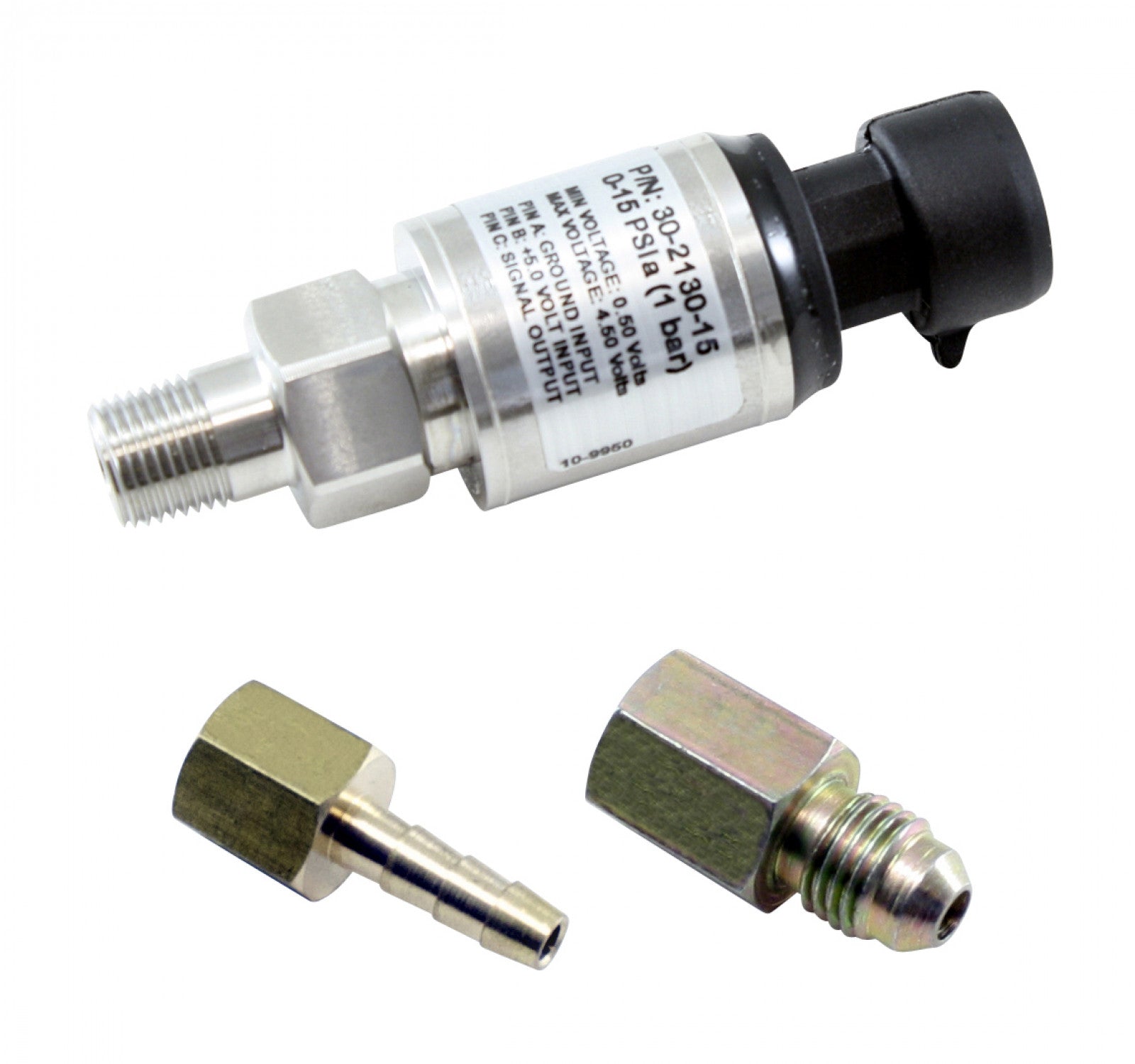

  • Includes: 15 PSIa or 1 Bar Stainless Sensor, Connector, Pins, Pin Lock, 1/8" NPT to -4 Adapter & 1/8" NPT to 3/16" Barb Adapter
