AEM 150 PSIg Stainless Steel Pressure Sensor Kit 30-2130-150

Name: AEM 150 PSIg Stainless Steel Pressure Sensor Kit 30-2130-150
Brand: AEM ELECTRONICS
SKU: 30-2130-150
Price: 159.95 USD
Availability: InStock

AEM ELECTRONICS

Part # 30-2130-150
UPC # 840879013318

$159.95 USD

~~$179.95 USD~~ $159.95 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Product Description

Stainless steel sensors are recommended when the greatest accuracy is required, for example to measure manifold air pressure. AEM's sensor kits contain everything you need to mount a sensor, including connector, pins and 1/8 NPT fitting.

Specifications:

Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
Operating Temp: -40C to 105C / -40F to 221F
Burst Pressure: 1500PSI
Response Time: < 1ms
Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
Sensor Body: Stainless Steel
Wetted Materials: 304L & 316L Stainless Steel
Thread: 1/8" NPT Male Thread
Weight: < 85 Grams
Supply Current:
Output: .5 to 4.5Vdc Linear
Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock

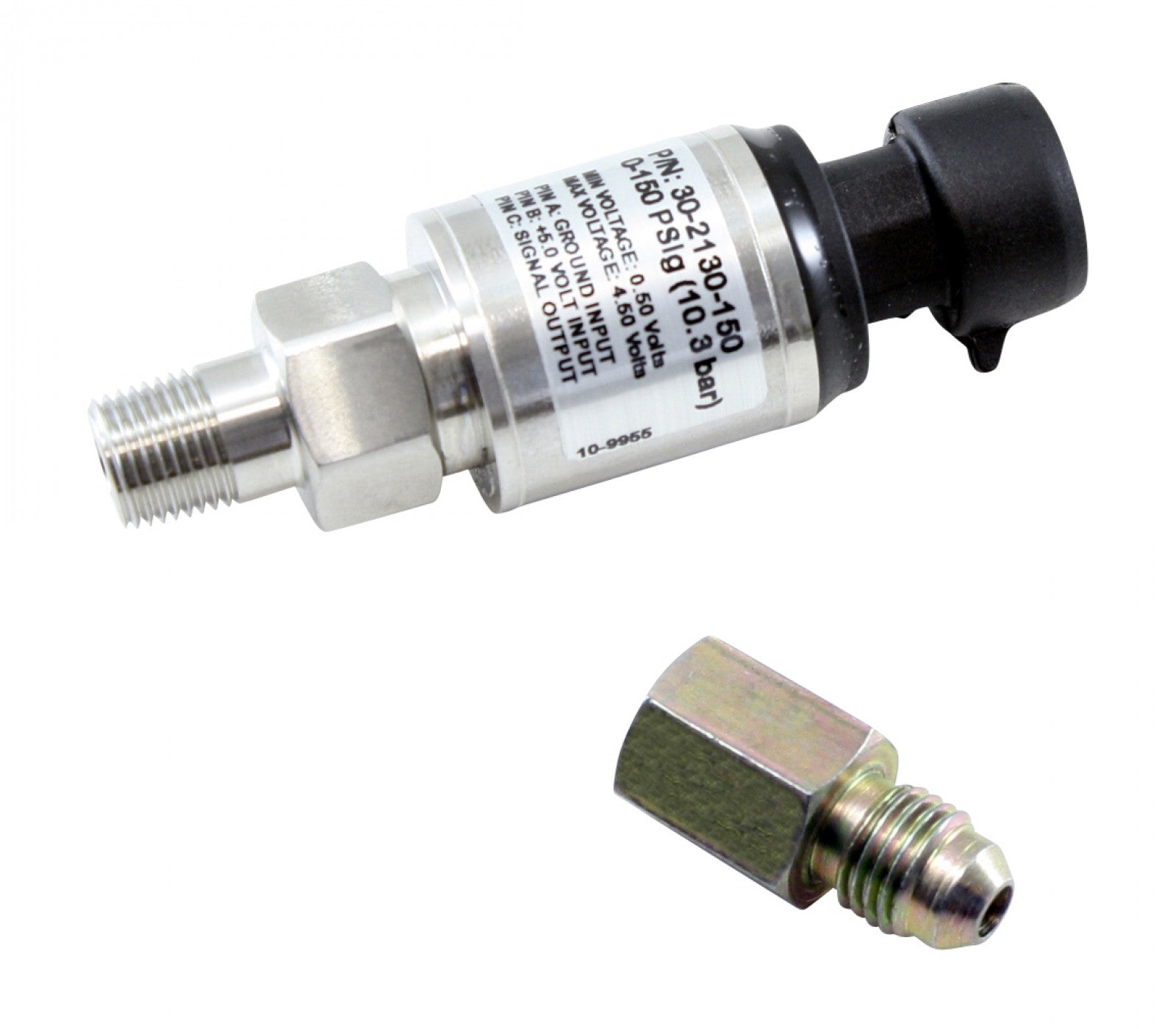

Includes: 150 PSIg Stainless Sensor, Connector, Pins, Pin Lock, 1/8" NPT to -4 Adapter
