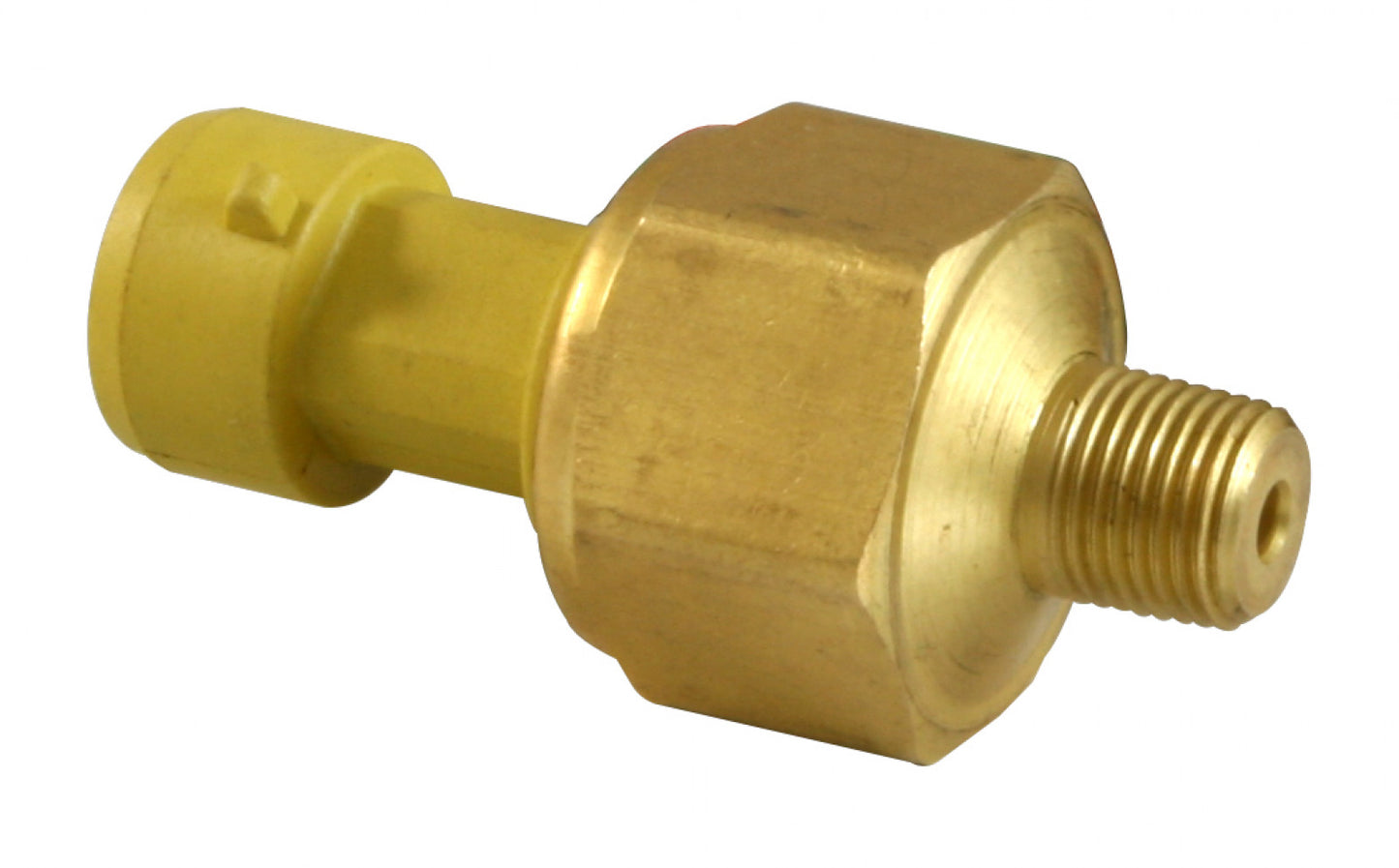

AEM 50 PSIa / 3.5 Bar Brass Pressure Sensor Kit 30-2131-50

Brass sensors are a more economical choice usable in many applications where extreme accuracy isn't required and +/- 3% accuracy vs. stainless steel's +/- 1% is appropriate. AEM's brass sensor kits contain the sensor, connector and pins.

Specifications:

• Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
• Operating Temp: -40C to 105C / -40F to 221F
• Burst Pressure: 100PSI
• Response Time: < 1ms
• Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
• Sensor Body: Stainless Steel
• Wetted Materials: 304L & 316L Stainless Steel
• Thread: 1/8" NPT Male Thread
• Weight: < 85 Grams
• Supply Current:
• Output: .5 to 4.5Vdc Linear
• Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
• Includes: 50 PSIa or 3.5Bar Stainless Sensor, Connector, Pins & Pin Lock
