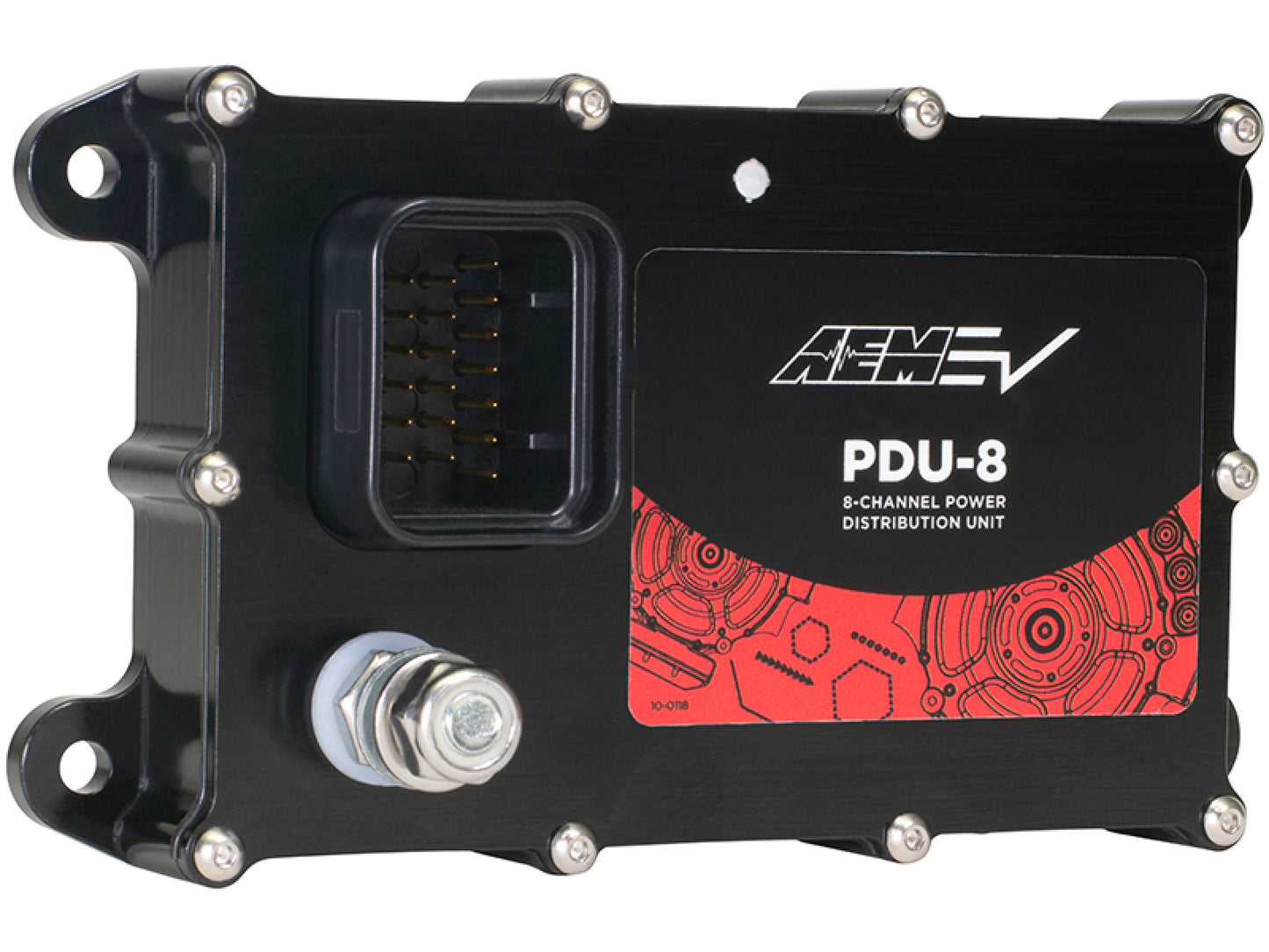

AEM EV PDU-8 Eight-Channel Power Distribution Unit 30-8300

The PUD-8 Eight Channel Power Distribution Unit receives its commands directly from a Vehicle Control Unit like the AEM EV VCU200, VCU300, or other VCUs with CAN transmission capability, eliminating the need to create complicated logic programming in the PDU. This makes them straightforward to configure, easy to troubleshoot and negates the need to have dedicated spares for motorsports electric vehicles, due to their ability to be used interchangeably. The PDU-8 Eight Channel Power Distribution Unit features:

• Four 20A and four 10A high-side 12V outputs for activating/deactivating various switched devices Connect up to eight units for a total of 64 channels
• Smaller modules which allow for multiple units to be deployed nearer the systems they control, simplifying wiring and reducing weight
• CAN-commanded PDU, no logic programming required for PDU operation
• PDU ID is defined by wiring at the connector, allowing units to be fully interchangeable
• A small size and light weight
• Individual channel current draw and fault states are reported back to the VCU
• Fully-sealed, waterproof billet-aluminum enclosure

Note: The PDU-8 interfaces with the VCU200 and VCU300 and with the AEM Infinity ECU as of firmware version v96.5. It does not work with Series2 ICE management system.
