Aluminum Tubing 180° Mandrel Bend
Aluminum Tubing 180° Mandrel Bend
BOOST Products USA
Part #
3102031838
UPC #
4250815801736
Black Friday Sale On All November Long! No Code Needed!
Couldn't load pickup availability
Product Description
Product Description

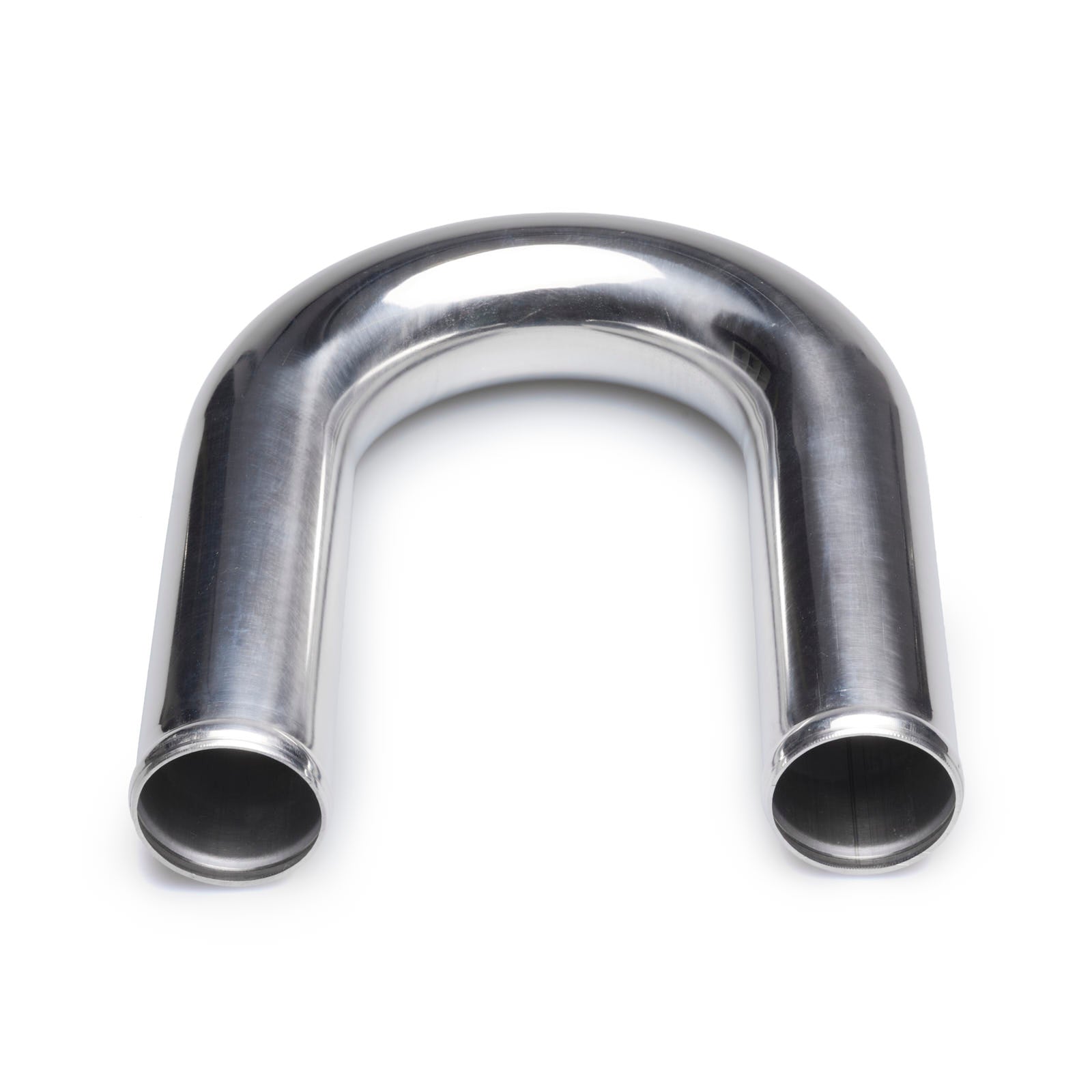

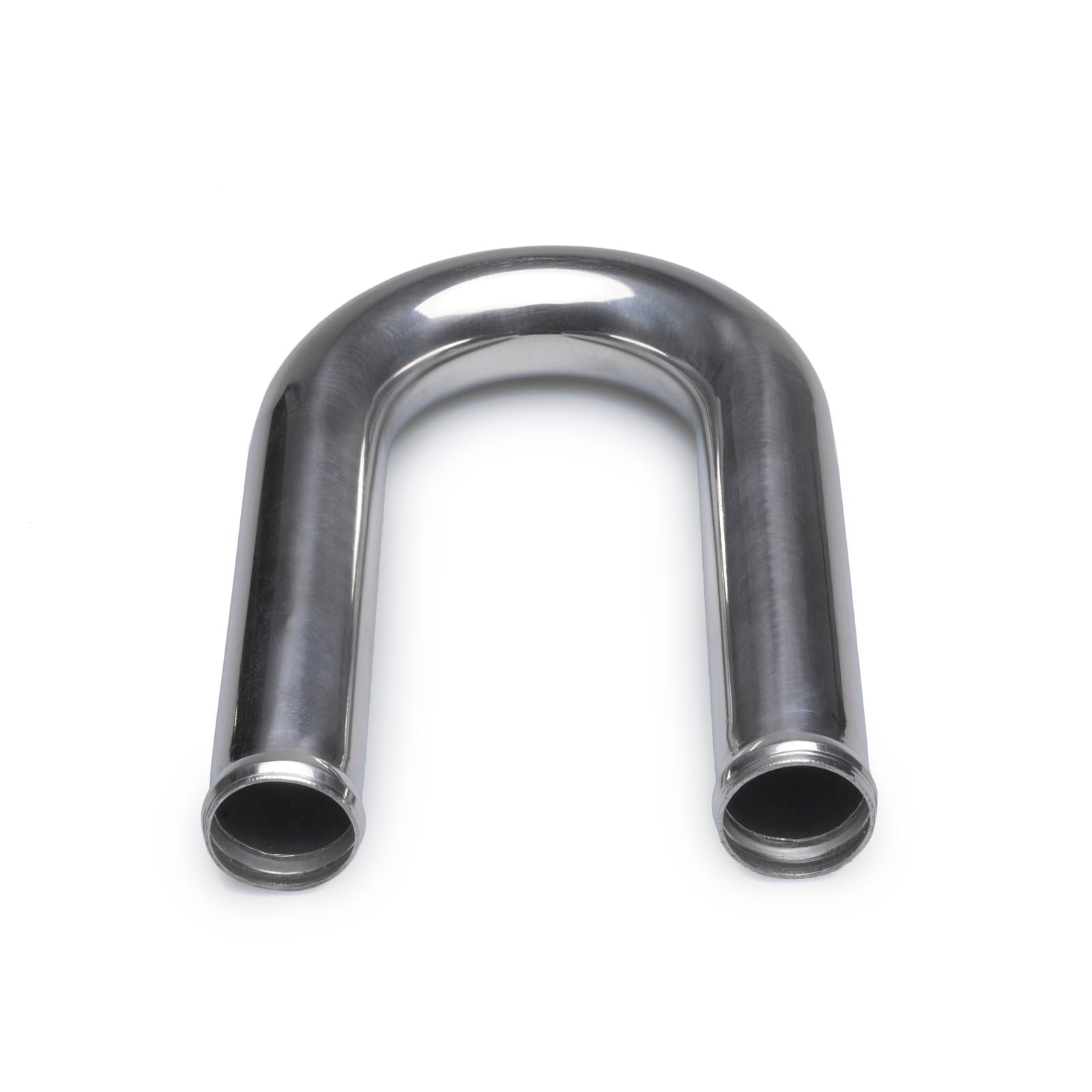

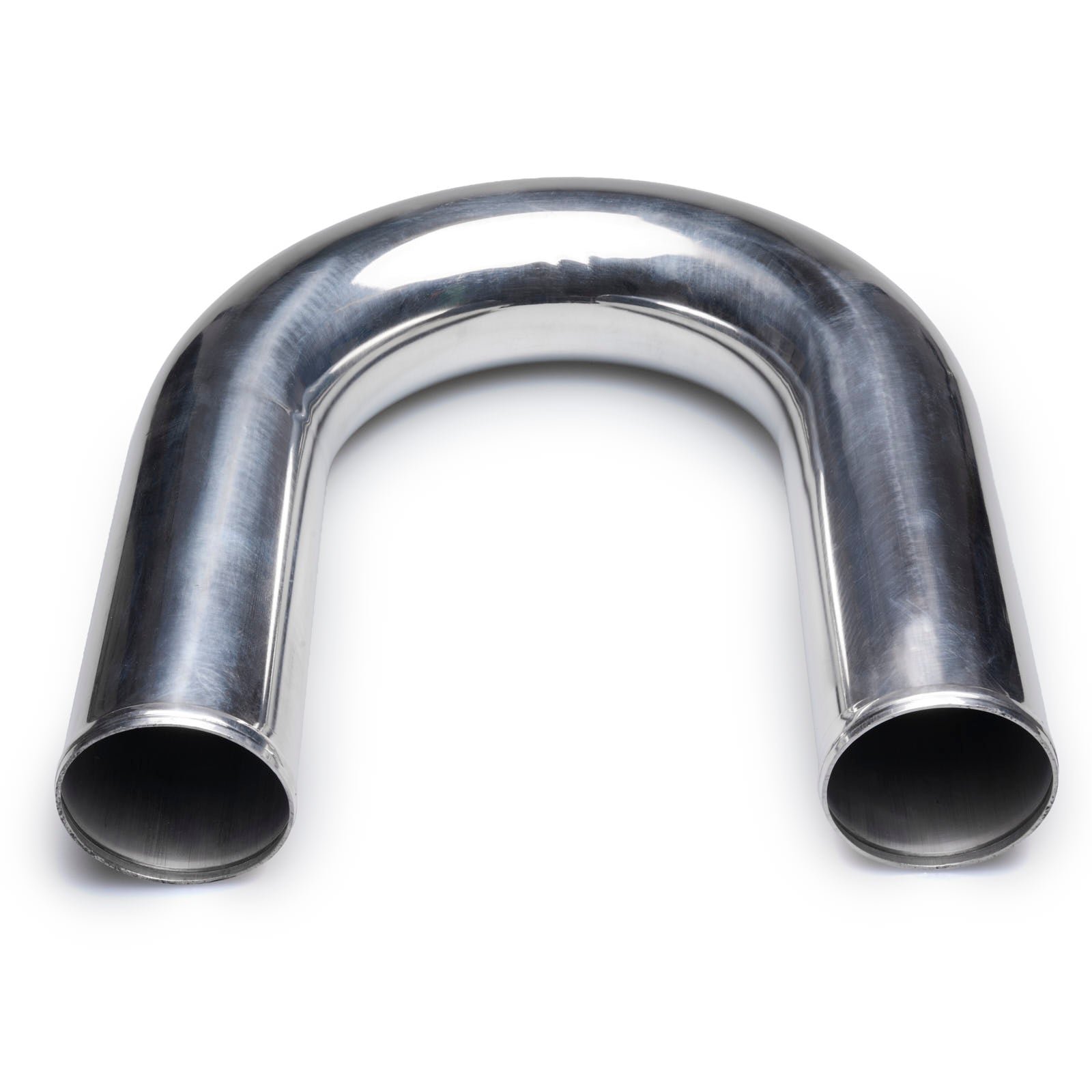

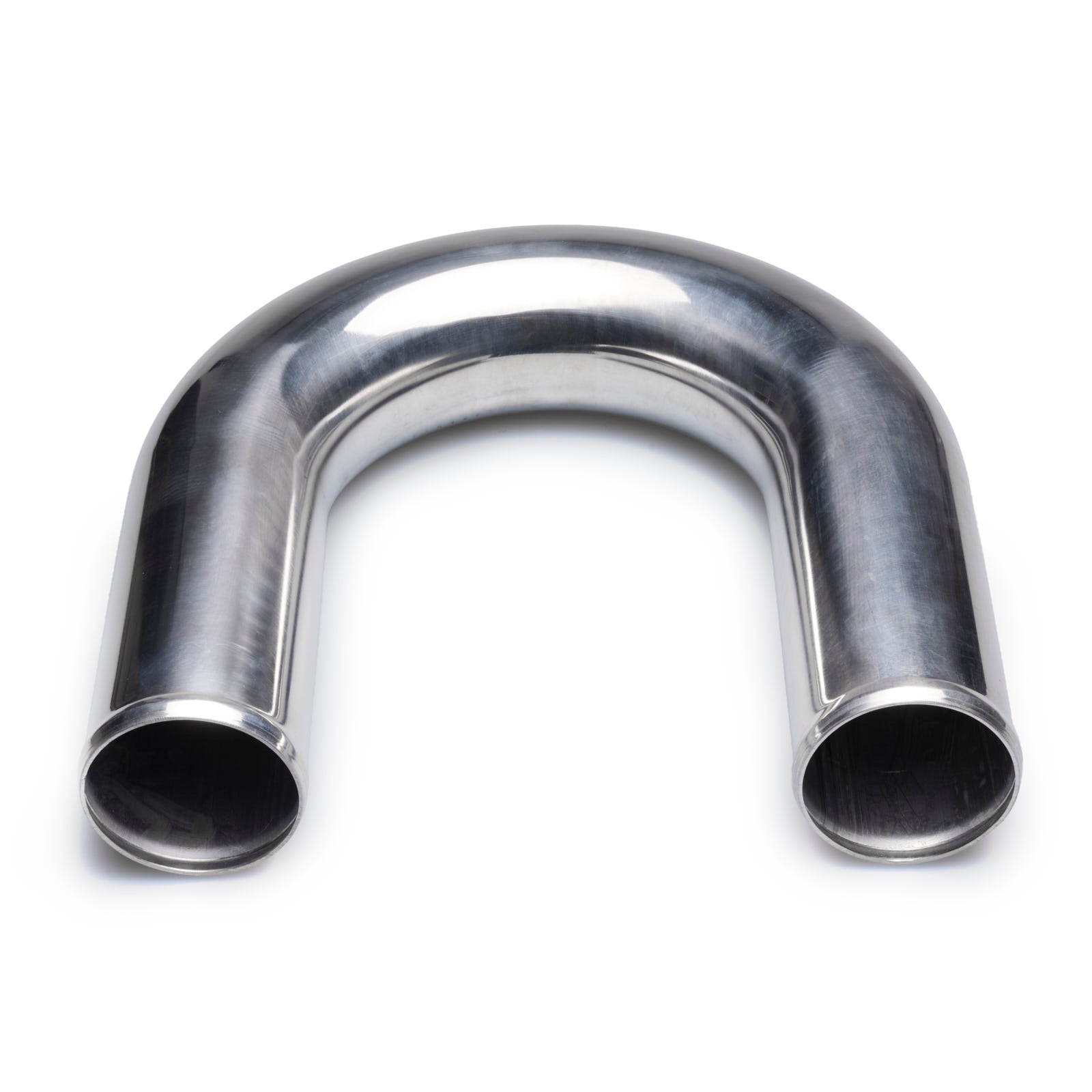

180° Aluminum Mandrel Bend, Polished
Polished 180° aluminum mandrel bend with straight legs. The ends are beaded, so the bend connects easily with silicone hoses. Use it to build charge air piping or intakes. The bends are also well suited for welding.
We use a comparatively thick wall. Thin aluminum tubing often cannot resist common boost pressures.
Key Features
- 180° mandrel bend
- Polished aluminum
- Wall thickness: 1.5mm up to 1.75" (45mm), 2mm from 2" (50mm)
- Straight leg length before the bend: 152.4mm, or 203.2mm on 3.5" (89mm) and 4" (102mm)
- Beaded ends for silicone hoses
- Suitable for welding

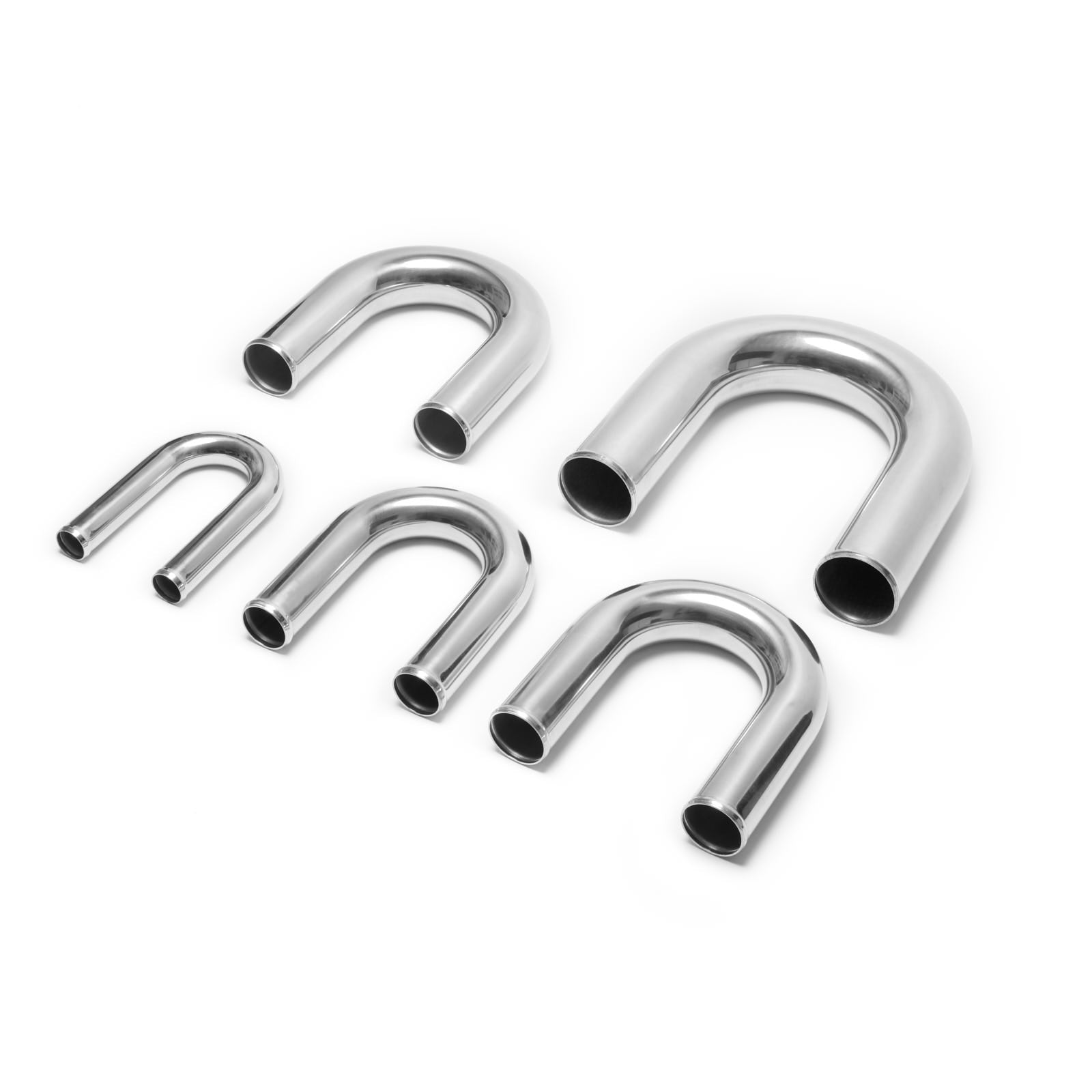

- 11 sizes from 1.5" (38mm) to 4" (102mm)
Available Sizes

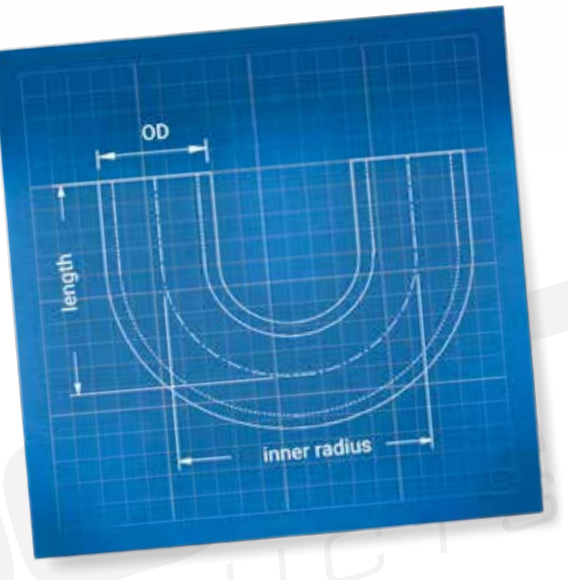

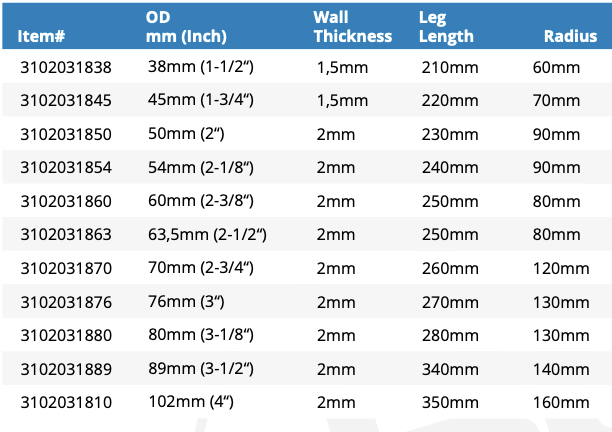

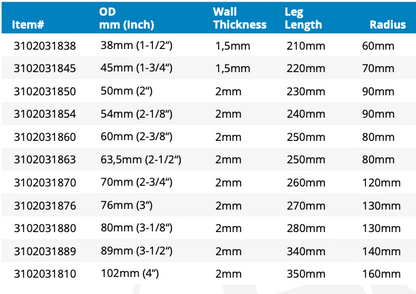

| Size (OD) | Actual OD | Wall thickness | Bending radius | Leg length | Part No. |
|---|---|---|---|---|---|
| 1.5" (38mm) | 38.1mm | 1.5mm | 60mm | 152.4mm | 3102031838 |
| 1.75" (45mm) | 45mm | 1.5mm | 70mm | 152.4mm | 3102031845 |
| 2" (50mm) | 50.8mm | 2mm | 90mm | 152.4mm | 3102031850 |
| 2.125" (54mm) | 54mm | 2mm | 85mm | 152.4mm | 3102031854 |
| 2.36" (60mm) | 60.3mm | 2mm | 80mm | 152.4mm | 3102031860 |
| 2.5" (63mm) | 63.5mm | 2mm | 80mm | 152.4mm | 3102031863 |
| 2.75" (70mm) | 70mm | 2mm | 114.3mm | 152.4mm | 3102031870 |
| 3" (76mm) | 76mm | 2mm | 125mm | 152.4mm | 3102031876 |
| 3.15" (80mm) | 80mm | 2mm | 128mm | 152.4mm | 3102031880 |
| 3.5" (89mm) | 88.9mm | 2mm | 143mm | 203.2mm | 3102031889 |
| 4" (102mm) | 101mm | 2mm | 165mm | 203.2mm | 3102031810 |
Frequently Asked Questions
Why does the table show an actual OD?
The size in the name is the nominal size. The tubes are made in standard tube sizes, so some actual outer diameters differ slightly, for example 38.1mm instead of 38mm. The table shows the actual value for every size.
Which silicone hose fits?
As a general rule, the inner diameter of the BOOST Products silicone hose equals the outer diameter of the aluminum tube.
Can the bends be welded?
Yes. The aluminum bends are well suited for welding.
