Aluminum Tubing 90° Mandrel Bend

Aluminum Tubing 90° Mandrel Bend

BOOST Products USA

Part #
3102029038
UPC #
4250815801620

Black Friday Sale On All November Long! No Code Needed!

Regular price $23.96 USD
Regular price $23.96 USD Sale price $23.96 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

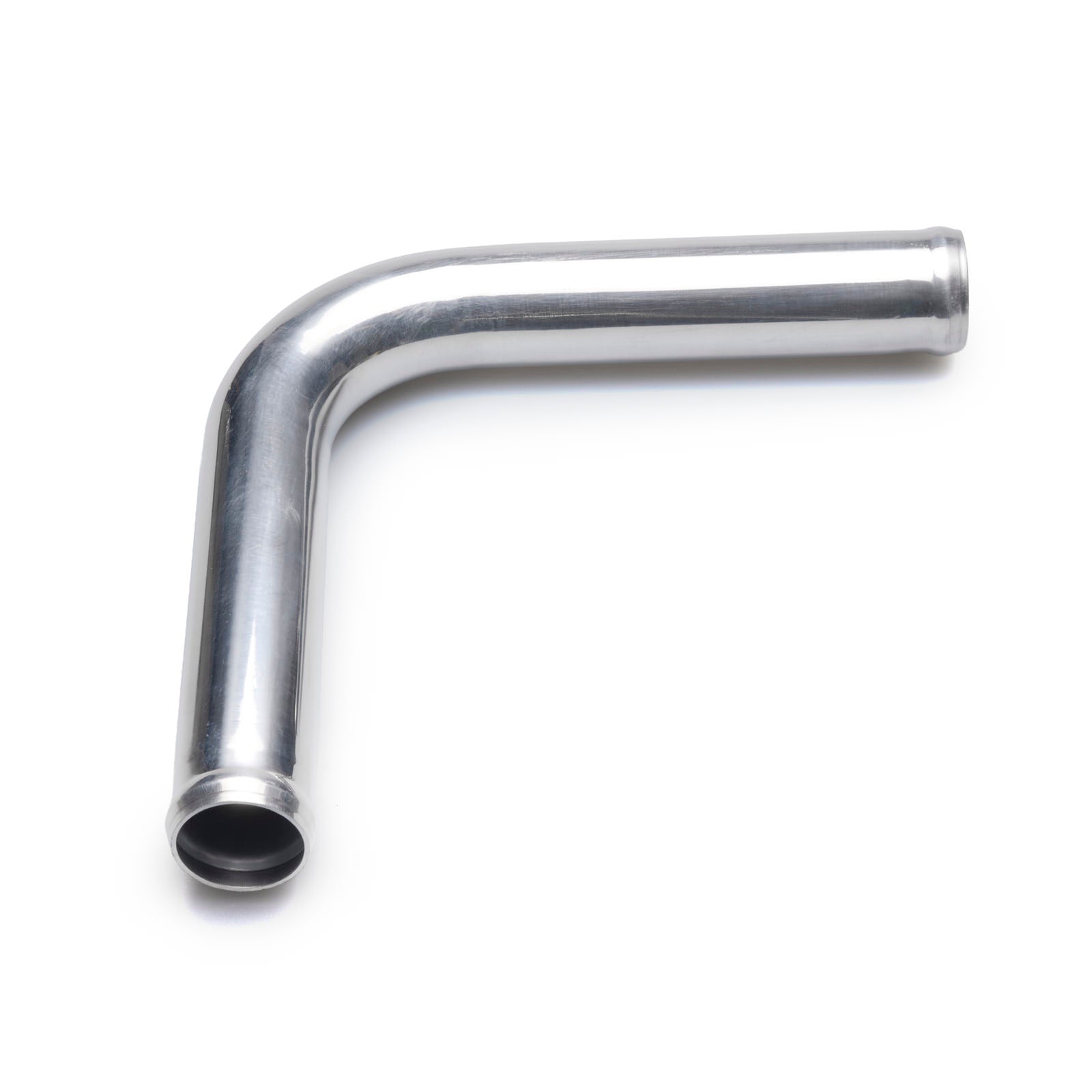

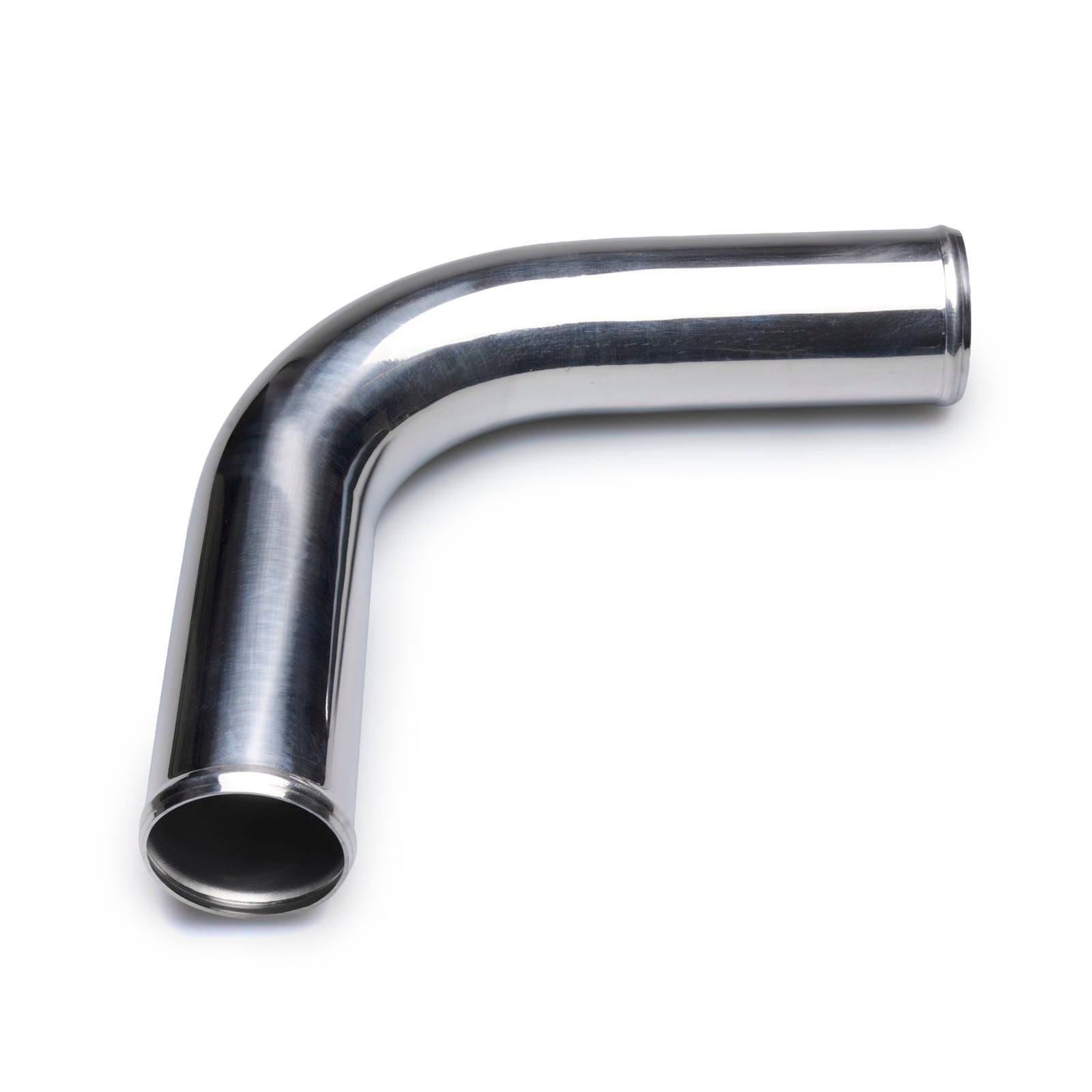

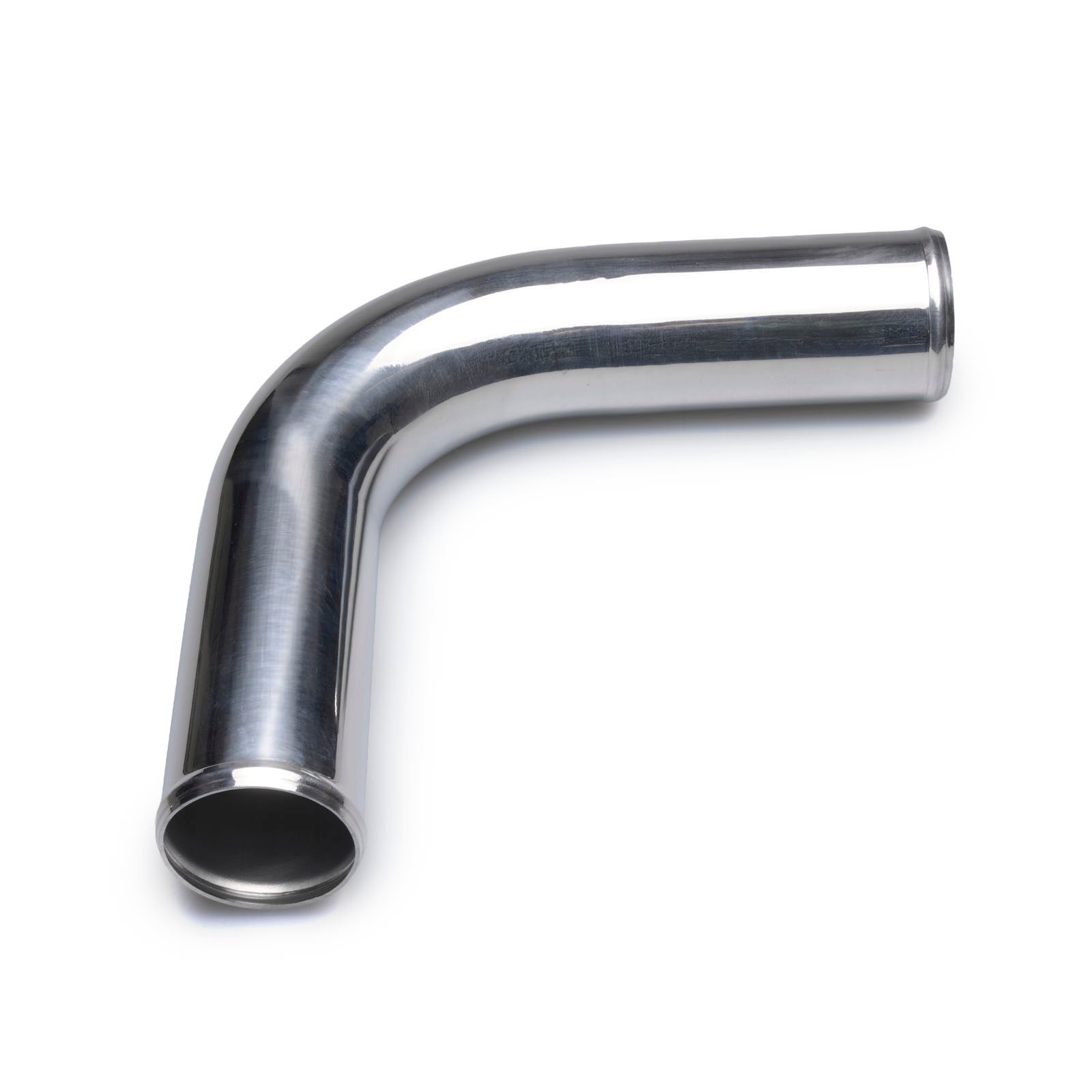

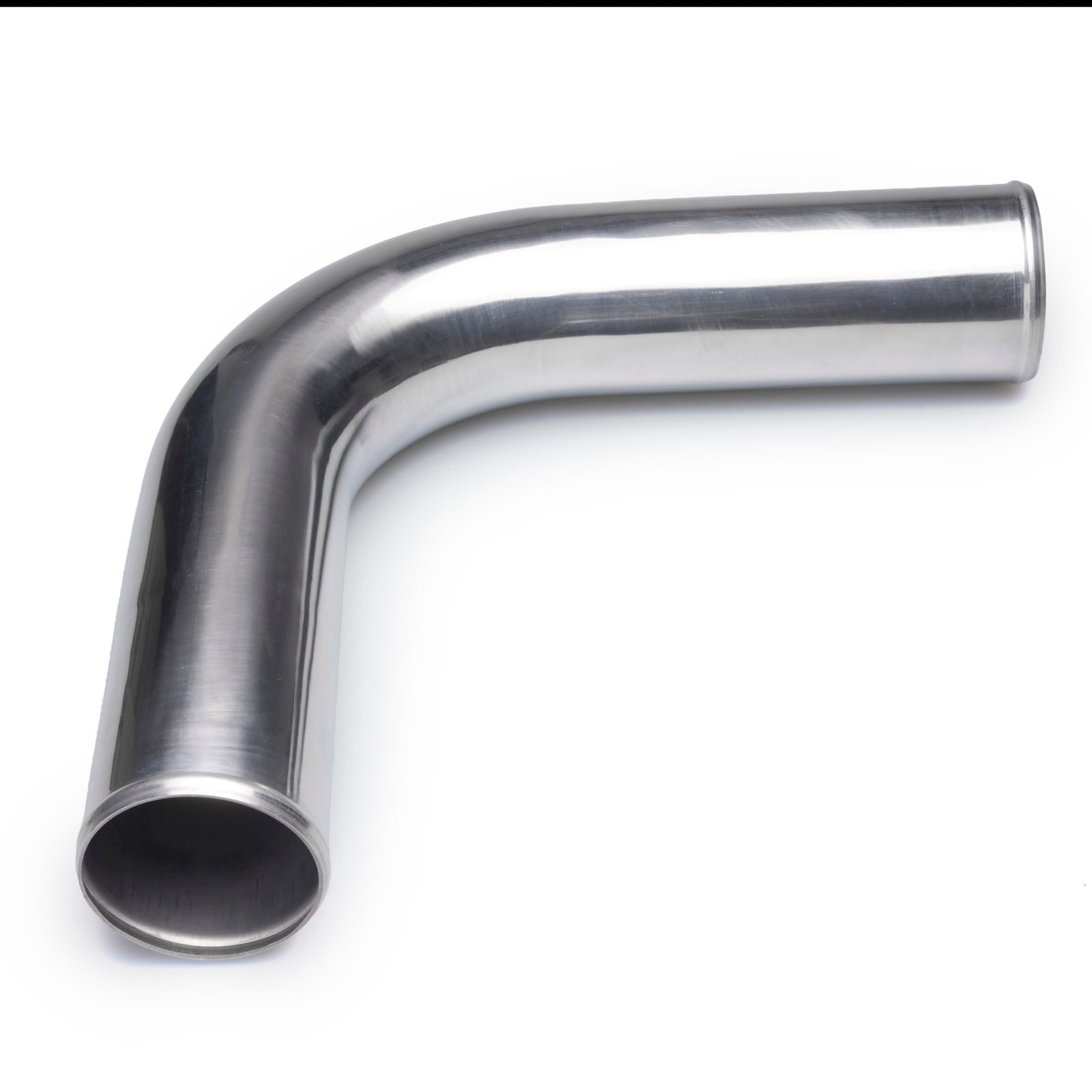

90° Aluminum Mandrel Bend, Polished

Polished 90° aluminum mandrel bend with straight legs. The ends are beaded, so the bend connects easily with silicone hoses. Use it to build charge air piping or intakes. The bends are also well suited for welding.

We use a comparatively thick wall. Thin aluminum tubing often cannot resist common boost pressures.

Key Features

  • 90° mandrel bend
  • Polished aluminum
  • Wall thickness: 1.5mm up to 1.75" (45mm), 2mm from 2" (50mm)

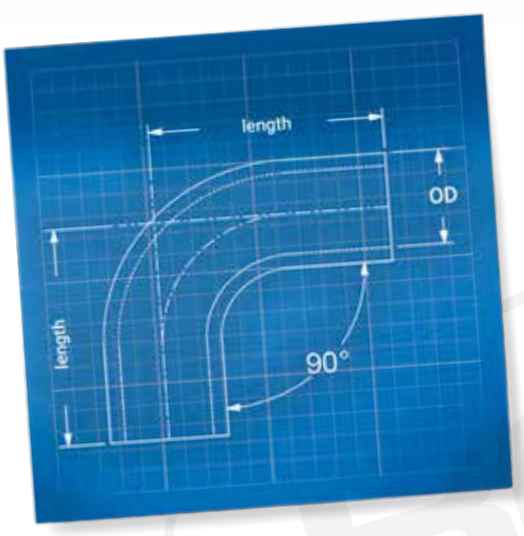

  • Straight leg length before the bend: 152.4mm, or 203.2mm on 3.5" (89mm) and 4" (102mm)
  • Beaded ends for silicone hoses
  • Suitable for welding

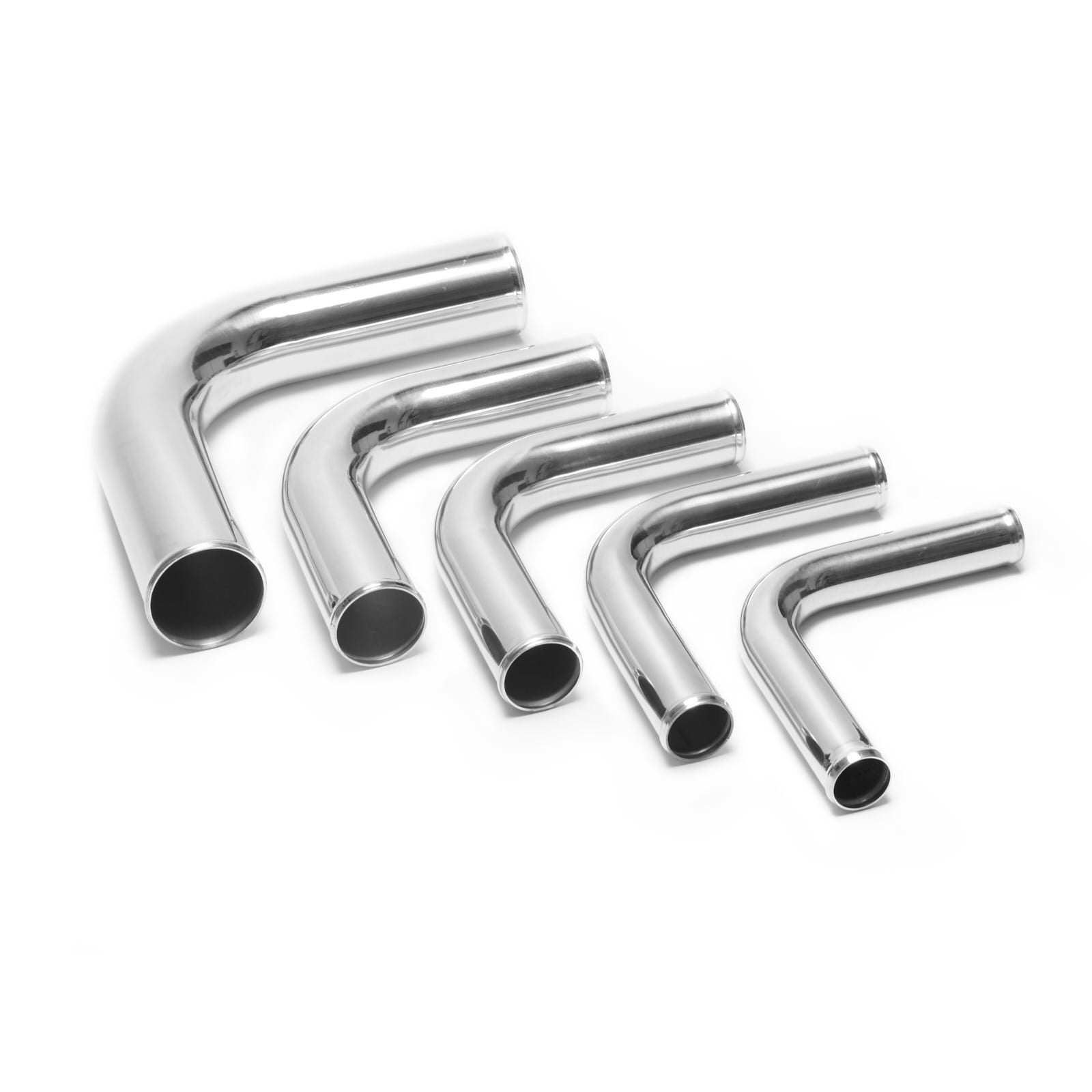

  • 11 sizes from 1.5" (38mm) to 4" (102mm)

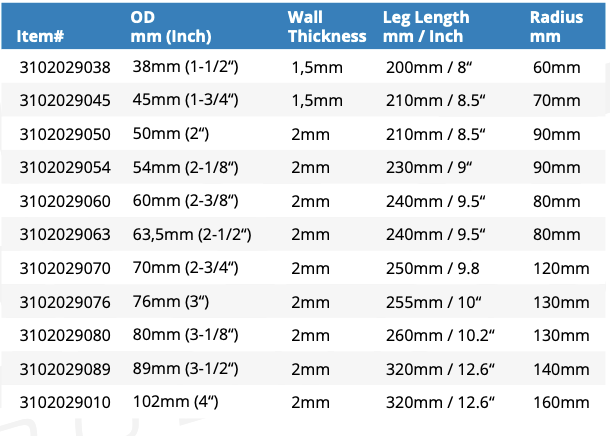

Available Sizes

Size (OD) Actual OD Wall thickness Bending radius Leg length Part No.
1.5" (38mm) 38.1mm 1.5mm 60mm 152.4mm 3102029038
1.75" (45mm) 45mm 1.5mm 70mm 152.4mm 3102029045
2" (50mm) 50.8mm 2mm 90mm 152.4mm 3102029050
2.125" (54mm) 54mm 2mm 85mm 152.4mm 3102029054
2.36" (60mm) 60.3mm 2mm 80mm 152.4mm 3102029060
2.5" (63.5mm) 63.5mm 2mm 80mm 152.4mm 3102029063
2.75" (70mm) 70mm 2mm 114.3mm 152.4mm 3102029070
3" (76mm) 76mm 2mm 125mm 152.4mm 3102029076
3.15" (80mm) 80mm 2mm 128mm 152.4mm 3102029080
3.5" (89mm) 88.9mm 2mm 143mm 203.2mm 3102029089
4" (102mm) 101mm 2mm 165mm 203.2mm 3102029010

Frequently Asked Questions

Why does the table show an actual OD?

The size in the name is the nominal size. The tubes are made in standard tube sizes, so some actual outer diameters differ slightly, for example 38.1mm instead of 38mm. The table shows the actual value for every size.

Which silicone hose fits?

As a general rule, the inner diameter of the BOOST Products silicone hose equals the outer diameter of the aluminum tube.

Can the bends be welded?

Yes. The aluminum bends are well suited for welding.
