Axiom Supply Lifetime Warranty Wheel Bearing Assembly Toyota Tundra / Sequoia 2007 - 2022

Fitment

This premium front wheel hub and bearing assembly fits 2007–2021 Toyota Tundra 4WD trucks and 2008–2022 Toyota Sequoia 4WD SUVs. It installs on the front left or front right position and features a 36-spline 4WD hub, integrated ABS encoder, 5x150 wheel bolt pattern, and M14x1.5 wheel studs.

This assembly is designed specifically for four-wheel-drive models. It does not fit 2WD or rear-wheel-drive applications.

Toyota Tundra

2007–2021 Toyota Tundra 4WD

Toyota Sequoia

2008–2022 Toyota Sequoia 4WD

Features

Precision Tapered Roller Bearings – Engineered with high-performance grease for smooth operation, reduced friction, and long service life.

Premium Hardware – Grade 10.9 cold-formed, zinc-plated studs deliver exceptional tensile strength and corrosion protection.

Integrated ABS Encoder – Designed to provide accurate wheel-speed signal transmission while maintaining reliable performance in heat, mud, moisture, and harsh driving conditions.

4WD Splined Hub Design – Features a 36-spline center opening designed to accept the front CV axle shaft on compatible four-wheel-drive models.

Configuration – 5x150 wheel bolt pattern with five M14x1.5 wheel studs.

Description

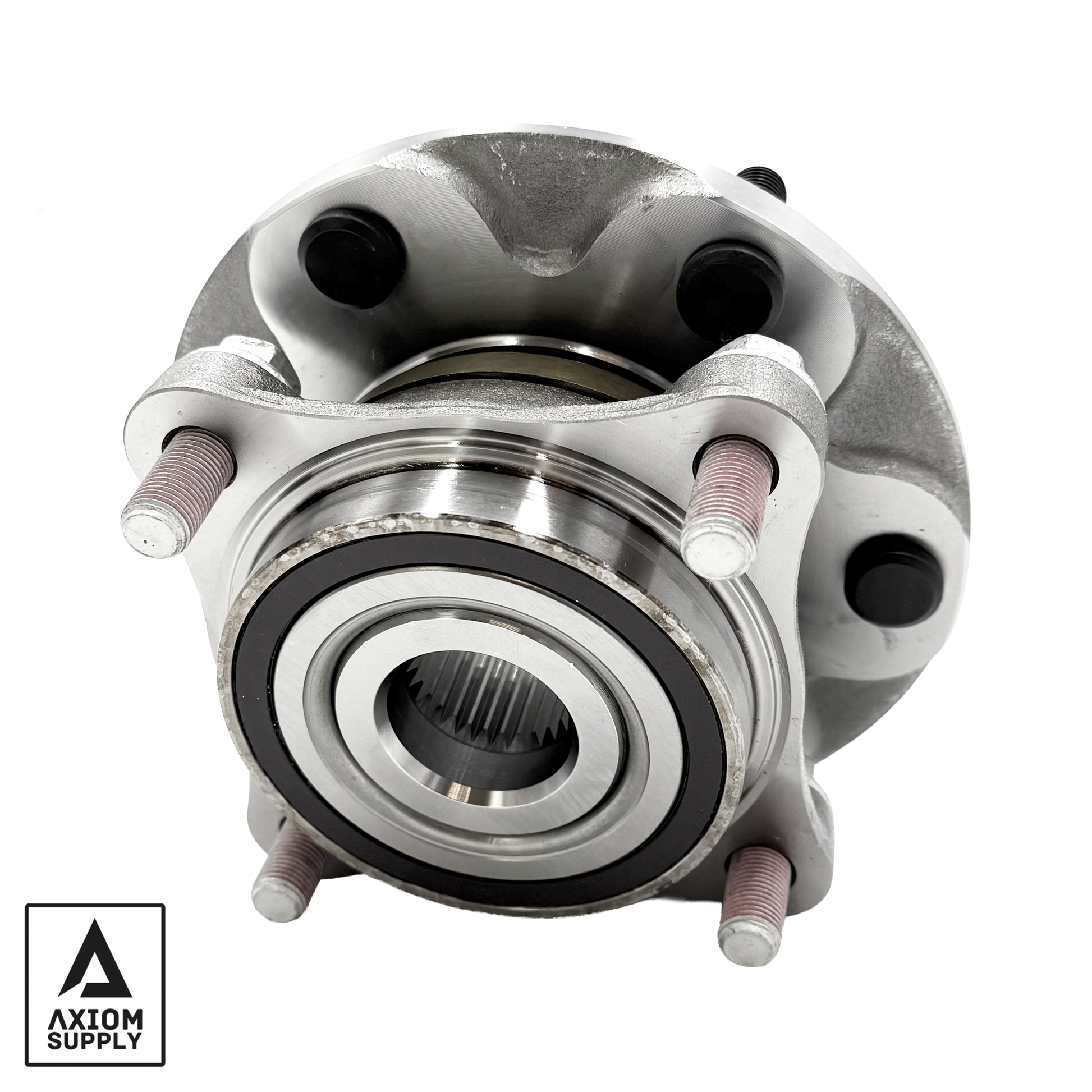

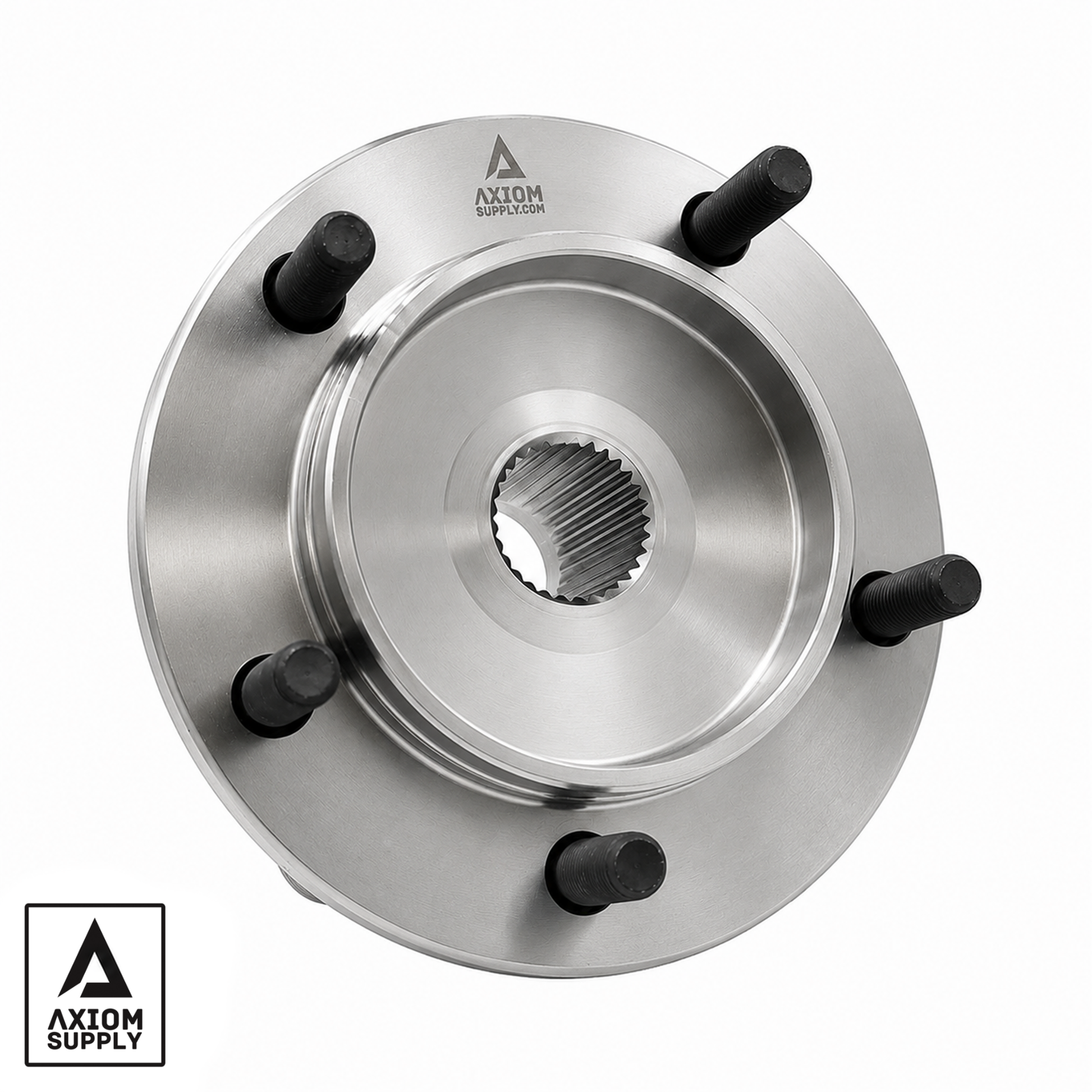

The Axiom Supply AX515202 Front Wheel Bearing and Hub Assembly is engineered for Toyota Tundra and Sequoia owners who demand dependable performance both on and off the road.

Developed with Axiom Supply's proprietary bearing and hub structure, this assembly is designed to reduce hub-face deflection under load, providing tighter steering response, improved braking stability, and enhanced durability under the stress of towing, oversized tires, lifted suspension systems, and demanding off-road use.

Each assembly comes as a complete preassembled bolt-in unit and can be installed on either the front driver or passenger side.

Whether your Toyota works hard every day, pulls a trailer, or spends its weekends off road, Axiom Supply bearing assemblies deliver the strength, precision, and longevity serious truck and SUV owners rely on.

Includes

(1) Front Wheel Bearing and Hub Assembly

(5) Preinstalled M14x1.5 Wheel Studs

(4) Preinstalled Hub-Mounting Bolts

Torque Specifications

Front Axle Nut: 249 ft-lbs / 338 N·m

Hub-to-Steering-Knuckle Bolts: 73 ft-lbs / 99 N·m

Aluminum-Wheel Lug Nuts: 97 ft-lbs / 131 N·m

Steel-Wheel Lug Nuts: 154 ft-lbs / 209 N·m

Use a 39 mm socket for the front axle nut. Clean the axle and axle-nut threads before installation and keep the threads free from oil or foreign material. Install the axle-nut lock cap and a new cotter pin after torquing.

Brake-caliper and other related fastener torque specifications can vary by model year and factory configuration. Always verify all applicable torque specifications using the service information for the specific vehicle being repaired.

Installation Guide Here

Interchange

Toyota OE 43570-0C010

Toyota OE 43502-0C031

MOOG 515202

SKF BR930979

Dorman 950-002

BCA WE60786

Mevotech H515103

Precision 515103

Timken HA591018

Axiom Supply AX515202

The Axiom No-Nonsense Lifetime Warranty

Axiom Supply bearing assemblies are warrantied for life to the original purchaser against manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
