Axiom Supply Upper and Lower Ball Joint 4 Pack Ford Super Duty F250-F350 4WD 1999-2022

Fitment

The Axiom Supply Heavy-Duty Upper & Lower Ball Joint 4-Pack provides a complete front ball joint replacement set for a wide range of Ford Super Duty, Ford Excursion, older Ford Dana 60, and Dodge Ram HD solid-front-axle applications.

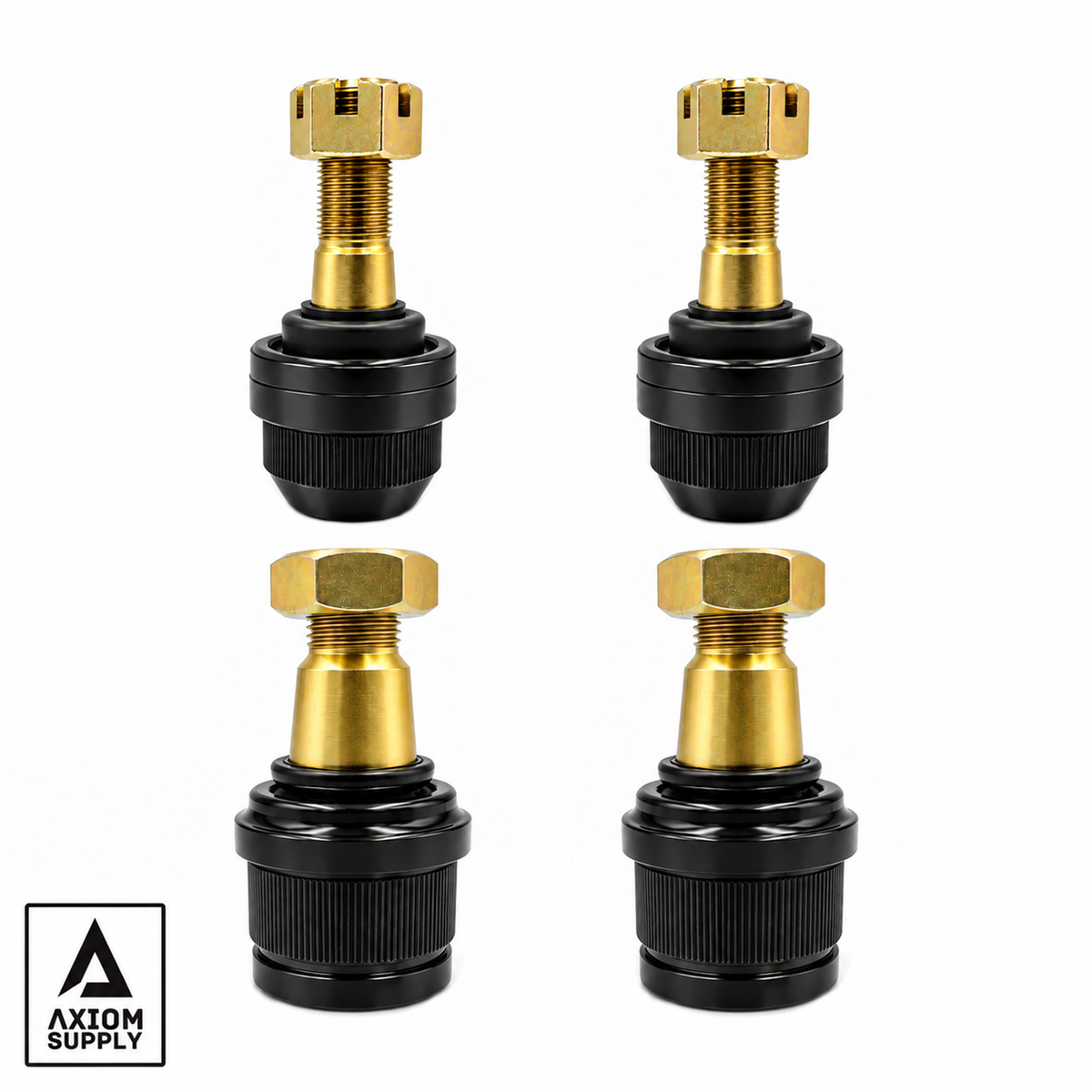

This package includes:

(2) AX0026 Heavy-Duty Upper Ball Joints
(2) AX8607T Heavy-Duty Lower Ball Joints

The AX0026 upper ball joints interchange with MOOG K80026, while the AX8607T lower ball joints interchange with MOOG K8607T.

This 4-pack is intended only for applications that use both the K80026-style upper and K8607T-style lower ball joint configurations.

Ford F-250 Super Duty

1999–2022 Ford F-250 Super Duty 4WD

Ford F-350 Super Duty

1999–2022 Ford F-350 Super Duty 4WD

Ford Excursion

2000–2005 Ford Excursion 4WD

Ford F-250

1992–1997 Ford F-250 4WD
With applicable Dana 60 solid front axle

Ford F-350

1992–1997 Ford F-350 4WD

With applicable solid-front-axle configuration utilizing the K80026 upper and K8607T lower ball joints.

Ford F-450 Super Duty

1999–2004 Ford F-450 Super Duty
Applicable solid-front-axle / Monobeam configurations

2011–2018 Ford F-450 Super Duty
Select applicable configurations, including Crew Cab Pickup applications utilizing both K80026-style upper and K8607T-style lower ball joints

Because F-450 axle and chassis configurations vary considerably, verify the existing ball joints or OE interchange before ordering.

Ford F-550 Super Duty

1999–2004 Ford F-550 Super Duty

Applicable solid-front-axle / Monobeam configurations utilizing both the K80026 upper and K8607T lower ball joints.

Dodge Ram 2500

1994–1999 Dodge Ram 2500 4WD

For applicable Dana 60 solid front axle configurations.

Dodge Ram 3500

1994–1999 Dodge Ram 3500 4WD

For applicable Dana 60 solid front axle configurations.

1998–1999 Dodge Ram 3500 RWD

Select applications equipped with the corresponding solid front axle suspension utilizing the K80026 upper and K8607T lower ball joint combination.

Fitment Notes

This package is designed to replace the factory upper and lower ball joints on both the driver and passenger sides of applicable vehicles.

The included AX0026 upper ball joints share the same application interchange as:

MOOG K80026 — Front Upper

The included AX8607T lower ball joints share the same application interchange as:

MOOG K8607T — Front Lower

Both utilize the corresponding factory-style press-in ball joint configurations and are designed for direct replacement without modification on properly matched factory axle and steering-knuckle applications.

This package provides all four ball joints required to service both sides of the front axle:

(2) Front Upper Ball Joints
(2) Front Lower Ball Joints

Important Super Duty Year Break

For 1999–2022 Ford F-250 and F-350 Super Duty 4WD, this package uses the applicable:

AX0026 / K80026-style Upper
AX8607T / K8607T-style Lower

This package does NOT fit 2023–2026 F-250 / F-350 Super Duty 4WD trucks.

The 2023+ Super Duty platform uses the newer:

AX3049 Upper Ball Joint
AX3050 Lower Ball Joint

Important Application Note

The K80026 upper ball joint is used on additional Ford applications that do not use the K8607T lower ball joint. Those vehicles are intentionally not included in this 4-pack fitment list.

For older Ford trucks, F-450/F-550 models, and Dodge Ram applications, front axle configurations can vary by year, drivetrain, GVWR, and axle specification.

When in doubt, verify that the vehicle calls for both MOOG K80026 upper and MOOG K8607T lower ball joints before ordering.

Features

Complete 4-Piece Front Ball Joint Set — Includes two heavy-duty upper and two heavy-duty lower ball joints to service both sides of the front axle.

Grade 12.9 Extreme-Duty Ball Studs — Engineered for exceptional tensile strength, fatigue resistance, and durability under demanding front-end loads.

Forged Steel Housings — Manufactured from high-strength forged steel to withstand the demands of towing, hauling, oversized tires, lifted and leveled suspensions, and off-road use.

High-Articulation Design — Provides additional operating range to accommodate suspension and steering movement while maintaining consistent joint engagement.

Precision Internal Bearing Assemblies — Designed for smooth steering response, reduced deflection, and long-term durability.

Self-Compensating Load System — Helps maintain proper internal loading as components wear to preserve steering precision and minimize unwanted play.

Fully Greaseable Construction — Serviceable upper and lower ball joints allow fresh lubricant to be added periodically, helping flush contaminants and maximize component life.

Corrosion-Resistant Finish — Protective coatings help defend against rust, road salt, moisture, mud, and harsh operating environments.

OE-Style Press-In Fitment — Both the AX0026 upper and AX8607T lower are engineered around their corresponding factory-style ball joint dimensions for direct replacement.

Built for Heavy-Duty Solid Axles — Designed for demanding applications where vehicle weight, tire size, towing loads, and rough terrain place significant stress on front-end components.

Description

The Axiom Supply Heavy-Duty Upper & Lower Ball Joint 4-Pack was developed as a complete front ball joint solution for trucks and SUVs utilizing the proven K80026 upper and K8607T lower ball joint combination.

This package combines two AX0026 upper ball joints and two AX8607T lower ball joints, providing all four ball joints required to completely service both sides of the front axle.

The AX0026 upper ball joint is designed around the proven MOOG K80026-style front upper configuration, while the AX8607T lower ball joint utilizes the corresponding MOOG K8607T-style front lower configuration.

Together, these ball joints provide direct OE-style press-in fitment across applicable Ford F-250 and F-350 Super Duty, Ford Excursion, F-450/F-550 Super Duty, older Dana 60-equipped Ford trucks, and Dodge Ram 2500/3500 applications.

At the heart of each ball joint is Axiom's Grade 12.9 Extreme-Duty Ball Stud, paired with a forged steel housing and precision-engineered internal components. This heavy-duty construction is designed to handle increased steering and suspension loads associated with oversized tires, leveling and lift kits, heavy towing, hauling, commercial use, and demanding off-road terrain.

Heavy-duty solid-front-axle trucks place substantial loads on their ball joints. Vehicle weight, steering forces, braking loads, larger tires, and impacts from rough terrain are transferred through these critical suspension components. The Axiom ball joint system is engineered with heavy-duty materials and a robust internal design to maintain smooth articulation and precise steering under demanding conditions.

The self-compensating internal load system helps maintain consistent bearing contact as the joints wear, reducing unwanted movement while supporting precise steering feel and long-term durability.

Whether your truck spends its life towing heavy equipment, working every day, running oversized tires, or tackling difficult terrain, this complete four-piece ball joint package delivers heavy-duty construction, direct-fit installation, full serviceability, and the confidence of Axiom's No-Nonsense Lifetime Warranty.

Maintenance

Apply 2–3 pumps of grease to each ball joint during installation.

For continued performance, service each ball joint with approximately 1–2 pumps of grease every 5,000–7,000 miles, or as required based on vehicle use and operating conditions.

Avoid excessive greasing. Apply only the amount necessary to properly lubricate the joint without overfilling or damaging the dust boot.

Periodically inspect the ball joints and surrounding suspension and steering components, particularly on vehicles equipped with oversized tires, modified suspension, or regularly used for towing, hauling, commercial work, or off-road driving.

Includes

(2) Axiom Supply AX0026 Heavy-Duty Upper Ball Joints

(2) Axiom Supply AX8607T Heavy-Duty Lower Ball Joints

Grease Fittings

Ball Joint Stud Nuts

Cotter Pins

Applicable Retaining Hardware

Complete 4-Piece Front Upper & Lower Ball Joint Set

Installation

The AX0026 and AX8607T are designed as direct press-in replacements for the corresponding factory-style upper and lower ball joints.

Use a suitable heavy-duty ball joint press and follow the applicable vehicle service procedures during removal and installation.

Ensure each ball joint is installed squarely into the receiving bore and is fully seated and properly retained before final assembly.

When replacing all four ball joints, proper installation sequence is especially important. Improperly installing or preloading the upper and lower ball joints can result in binding, tight steering, or poor steering-wheel return.

Final tightening must follow the proper torque specifications for the supplied ball joint hardware. Always use a calibrated torque wrench for final tightening.

Important: Do not use impact tools for final tightening of ball joint hardware.

Interchange

Axiom Supply

Upper: AX0026
Lower: AX8607T

MOOG Interchange

Upper: MOOG K80026
Lower: MOOG K8607T

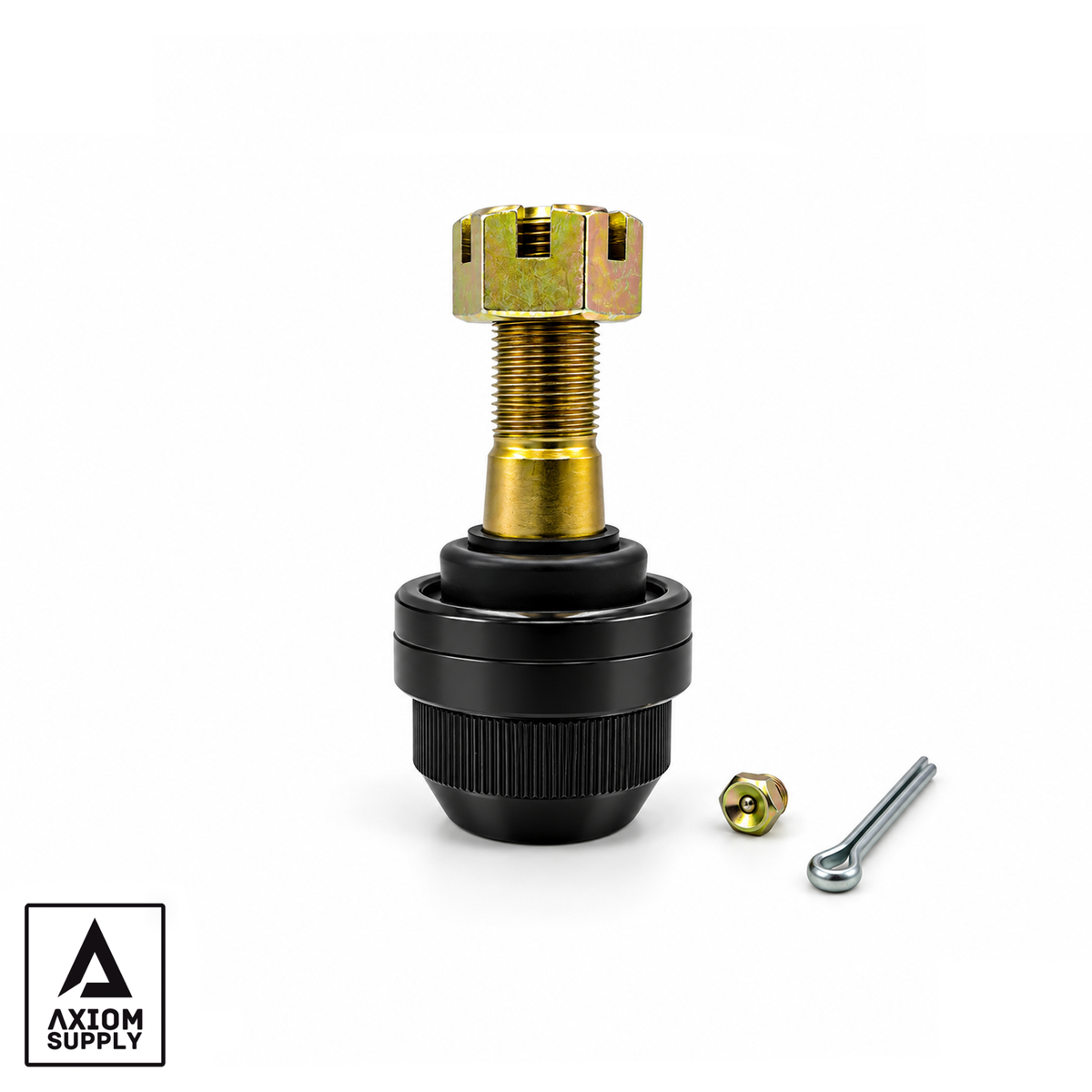

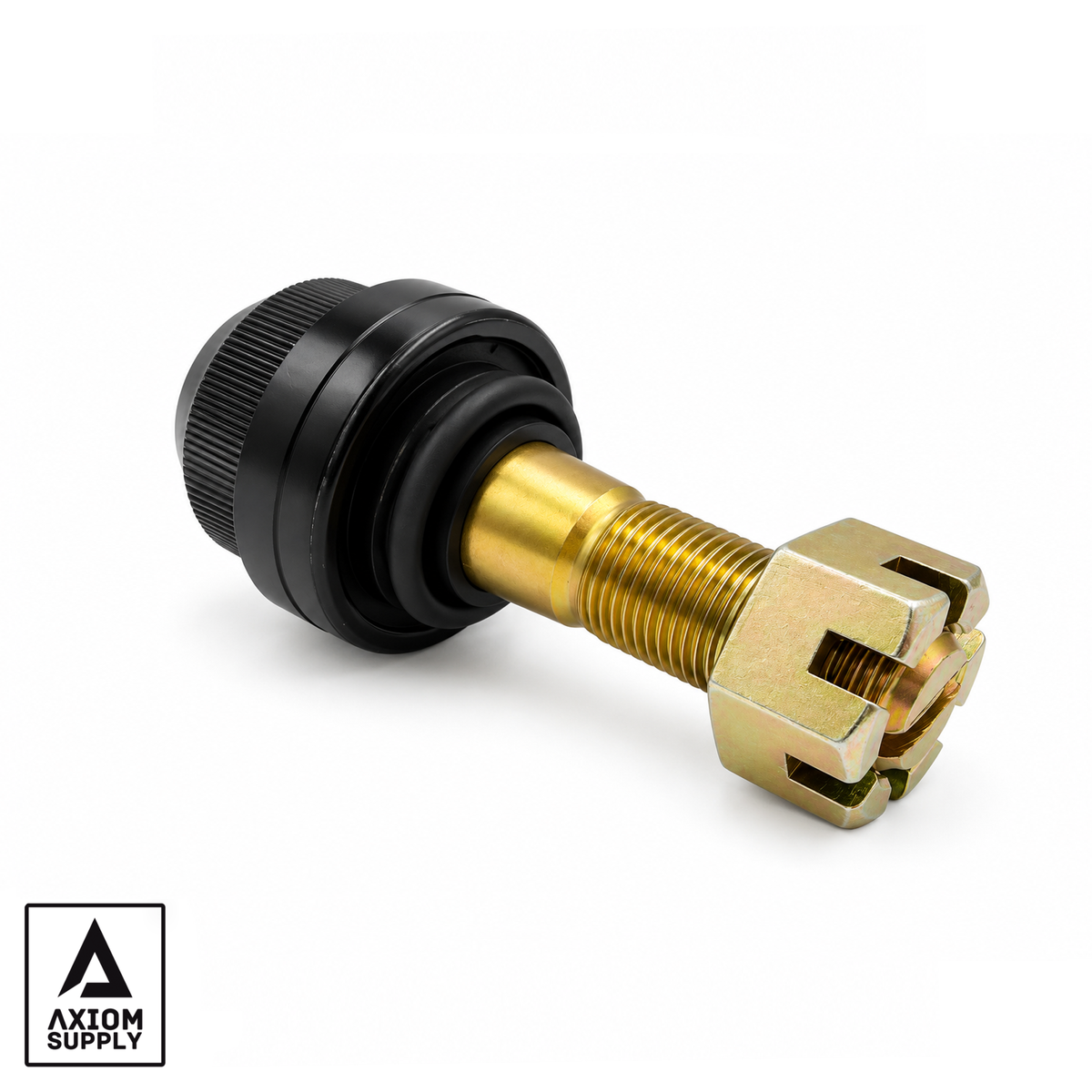

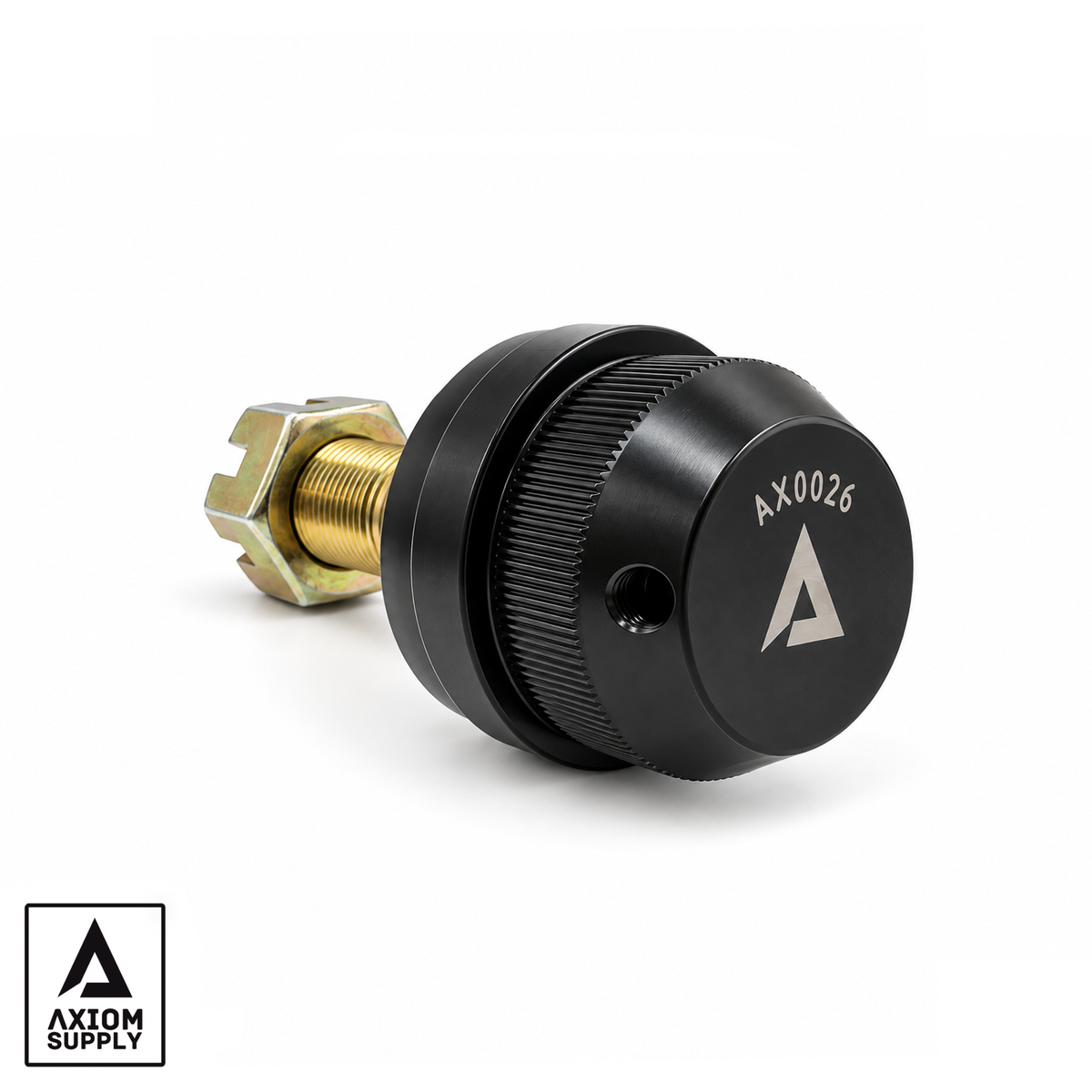

AX0026 Upper Ball Joint

The AX0026 shares the same application interchange as MOOG K80026, a press-in front upper ball joint used across applicable Ford and Dodge/Ram heavy-duty solid-front-axle applications.

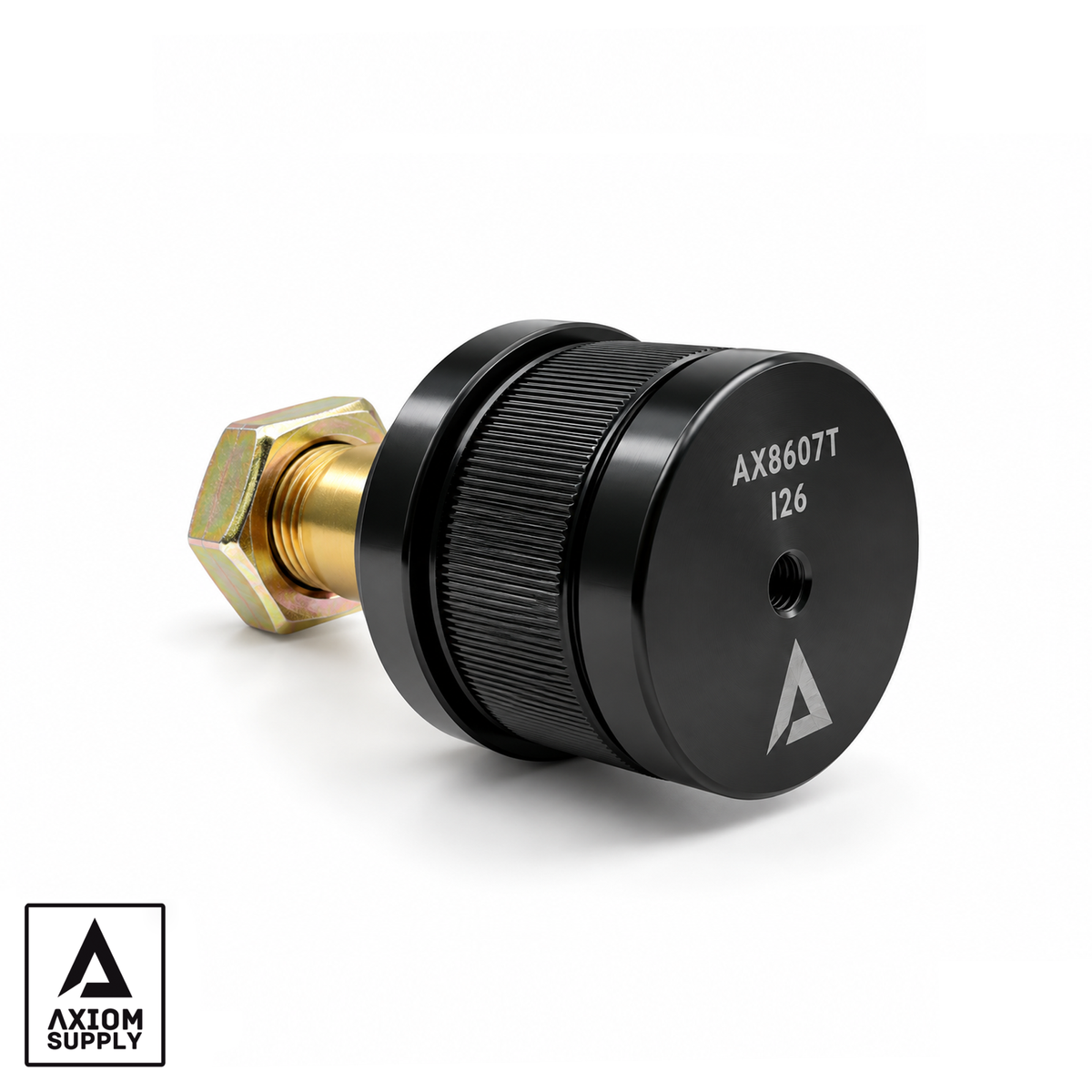

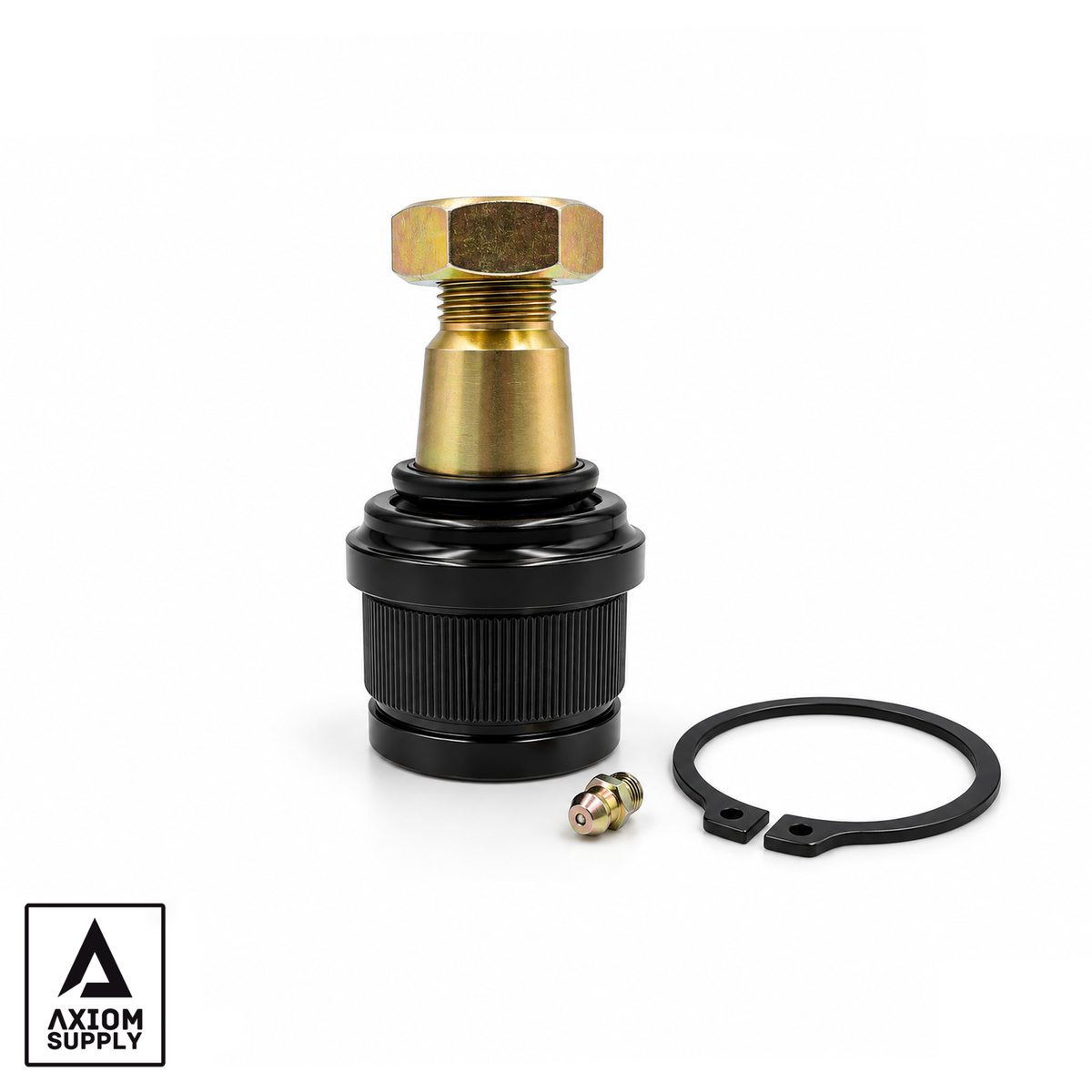

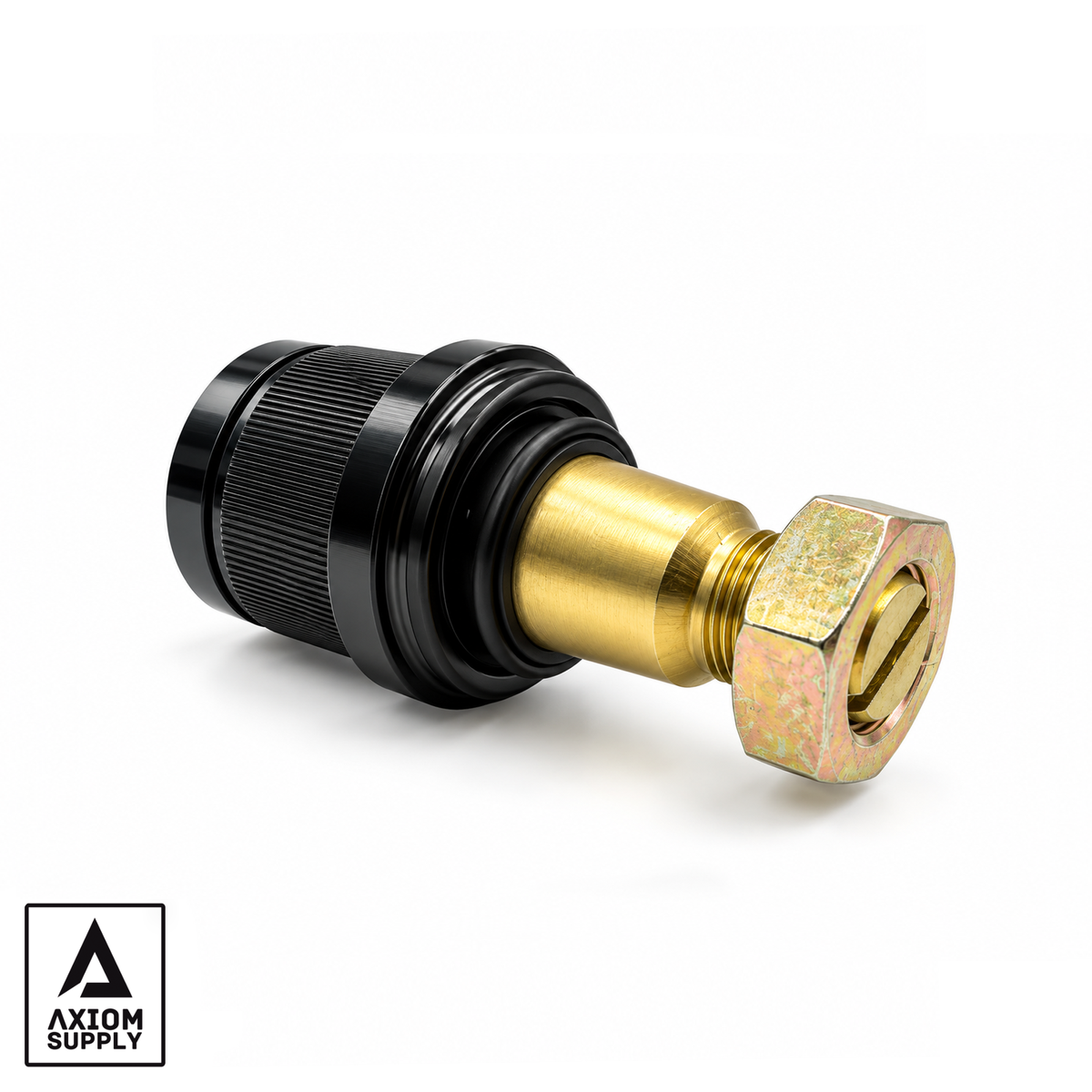

AX8607T Lower Ball Joint

The AX8607T shares the same application interchange as MOOG K8607T, a press-in front lower ball joint used across the corresponding heavy-duty solid-front-axle applications.

This four-piece package should be used only where the vehicle calls for both the K80026-style upper and K8607T-style lower ball joint combination.

Part numbers are provided for application cross-reference. Because these ball joints span numerous years, models, axle ratings, and front axle configurations, verify the vehicle's model year, drivetrain, front axle, and factory ball joint configuration before ordering.

The Axiom No-Nonsense Lifetime Warranty

Our suspension components are warranted for life to the original purchaser against manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.

If the part lets you down, we’ll make it right.
