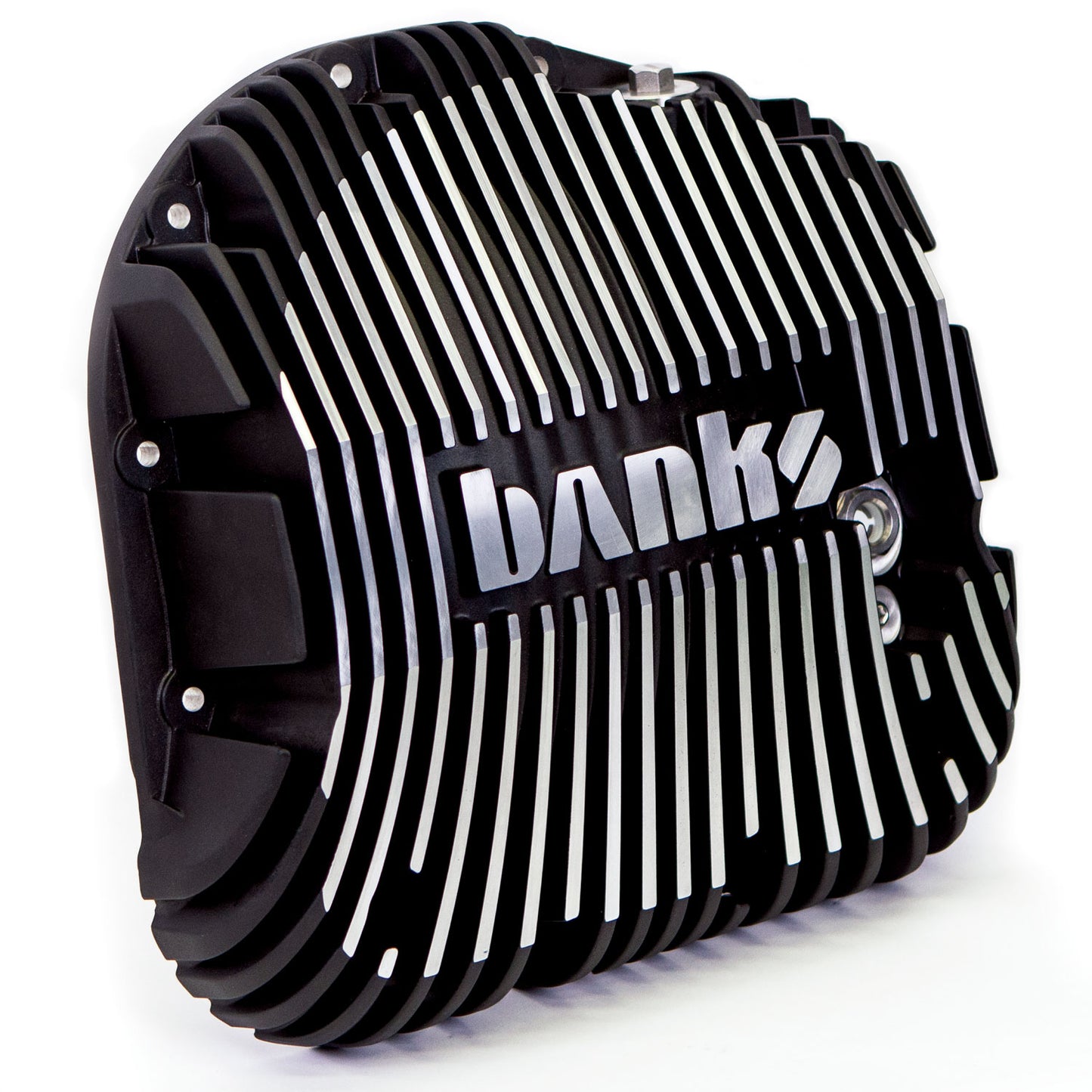

Banks Power Ram-Air Differential Cover Kit 19252

Fuel Economy was tested on the Mustang dyno using the OBD-II fuel flow rate and vehicle speed data, as well as the Banks emissions analyzer to measure fuel economy calculated from tailpipe emissions. The dyno was calibrated to simulate a 7,500 lb vehicle with an engine output of 30 HP required to maintain a 50 mph steady state speed. The truck was warmed to operating temperature then held at a constant 50 mph for a fixed length of time to procure an accurate average fuel consumption. The test was repeated for all covers as per their respective manufacturer’s fill level specifications. Features and Benefits Banks cools 5X better than flat-back covers in on-road towing tests over the same road, same weather, operator and vehicle Banks cools 118% better than flat-back covers in controlled 200hp 60mph sustained dyno tests New patented design features Ram-Air scoops Forces air up and into massive heat radiation fins providing the fastest cooling on the market Provides cold high velocity air, overcoming “dead air zone” behind differential Engineered to break-away if snagged on an obstacle Internal heat absorption fins transfer heat through the cover to the external fins Dry-mount high-pressure silicone O-ring seal. No messy RTV clean up when servicing differential Clears spare tire heat shield, Panhard bars and other suspension components Lowest point is the rear differential housing, not the Banks Ram-Air cover Limited Lifetime Warranty Fluid Dynamics Cover mates perfectly with differential housing for unobstructed fluid flow Ring gear raceway controls the fluid flow path to the pinion and bearing sets Axle tube lubricant guides direct fluid to axle bearings without over-filling Low fluid aeration means longer fluid life

• No need to remove cover to change fluid Magnetic drain plug Magnetic fill port plug 20° angled fill port for easy access
• Finish: Satin black textured powder coat Material: A380 aluminum diecast with CNC machined surfaces Weight: 11.7 lbs Dimensions: 13.3” X 12.8” X 3.5” Internal volume: Varies
• External heat radiation fin count: 23 Internal heat absorption fin count: 22 External heat radiation fin surface area: 694.2 in2 Internal heat absorption fin surface area: 103.1 in2
• External heat radiation total surface area: 741.9 in2 Internal heat absorption total surface area: 222.2 in2 Fasteners: 12 x stainless steel 5/16 flange hex bolts
