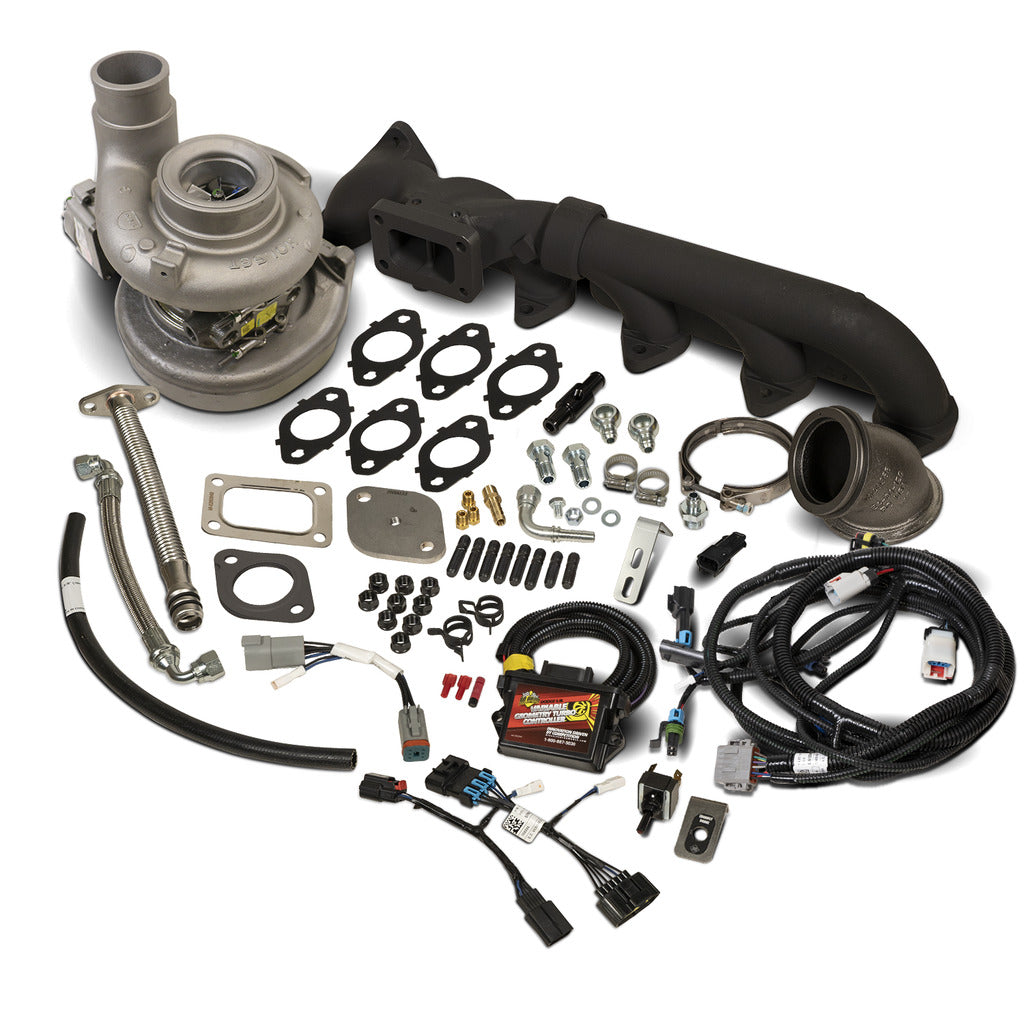

BD Diesel 5.9L Howler Performance VGT Turbo Kit - Dodge 2003-2007 1047140

Considering a performance turbo or exhaust brake? Get both with the BD Howler VGT kit for common rail Dodge 5.9L trucks. Enjoy the drivability a modern VGT turbo has offer. Strong exhaust brake rivals butterfly valve type brakes and generates up to 65psi EBP across a wide rpm band. The larger Ballistic Billet compressor wheel and our new exclusive Low MOI QST turbine wheel results in reduced backpressure, quicker response, increased efficiency and increased turbine flow compared to the competition. Comes with full install kit including turbo, BD manifold, plug and play controller kit, and all necessary fittings for a straightforward installation.

• 450hp-575hp towing trucks we suggest the 1047139 kit stock HE351VE turbo paired with stock or 60hp injectors
• VSR high speed balanced
• Plug & Play VGT controller kit with wiring harness
• Control module monitors sensor inputs and controls vanes for optimal spool up
• Turbocharger wheel speed control prevents overspeed
• Commanded boost based on throttle position to maximize cruising fuel economy
• Built in safety defaults the vanes open if erroneous sensor data received
• Kit includes all necessary hardware to install
• Factory looking fit and finish
• Does not need OBD port connection
• No core charge
• 575hp-675hp trucks we suggest the 1047140 kit with Screamer turbo paired with 90-120hp injectors and a R900 CP3 pump
• Can support up to 675HP at crank with additional performance mods
• Ballistic Billet 64.5mm 7+7 blade compressor wheel and Low MOI QST 70mm 12 blade turbine wheel
• The QST Turbine wheel as a 15% reduction in MOI (moment of inertia) which results in quicker turbo response
• QST turbine Blade thickness decreased by 25% allowing for higher turbine gas flow and increased efficiency
• Integrated exhaust brake control with included toggle switch
• High-performance thick-walled exhaust manifold included
• Faster spool up than conventional turbo

Attributes:

• GTIN: 00019025022584
• Brand Name: BD Diesel
• Box 1 Height: 11
• Box 1 Length: 34
• Box 1 Weight: 25
• Box 1 Width: 8.5
• Box 2 Height: 15
• Box 2 Length: 15
• Box 2 Weight: 50
• Box 2 Width: 15
• Engine: 5.9L Cummins 04.5-07
• Make: Dodge

Extended Information:

• Country of Origin: Canada
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 34 x 15 x 26 inches
• Weight: 75 lb
