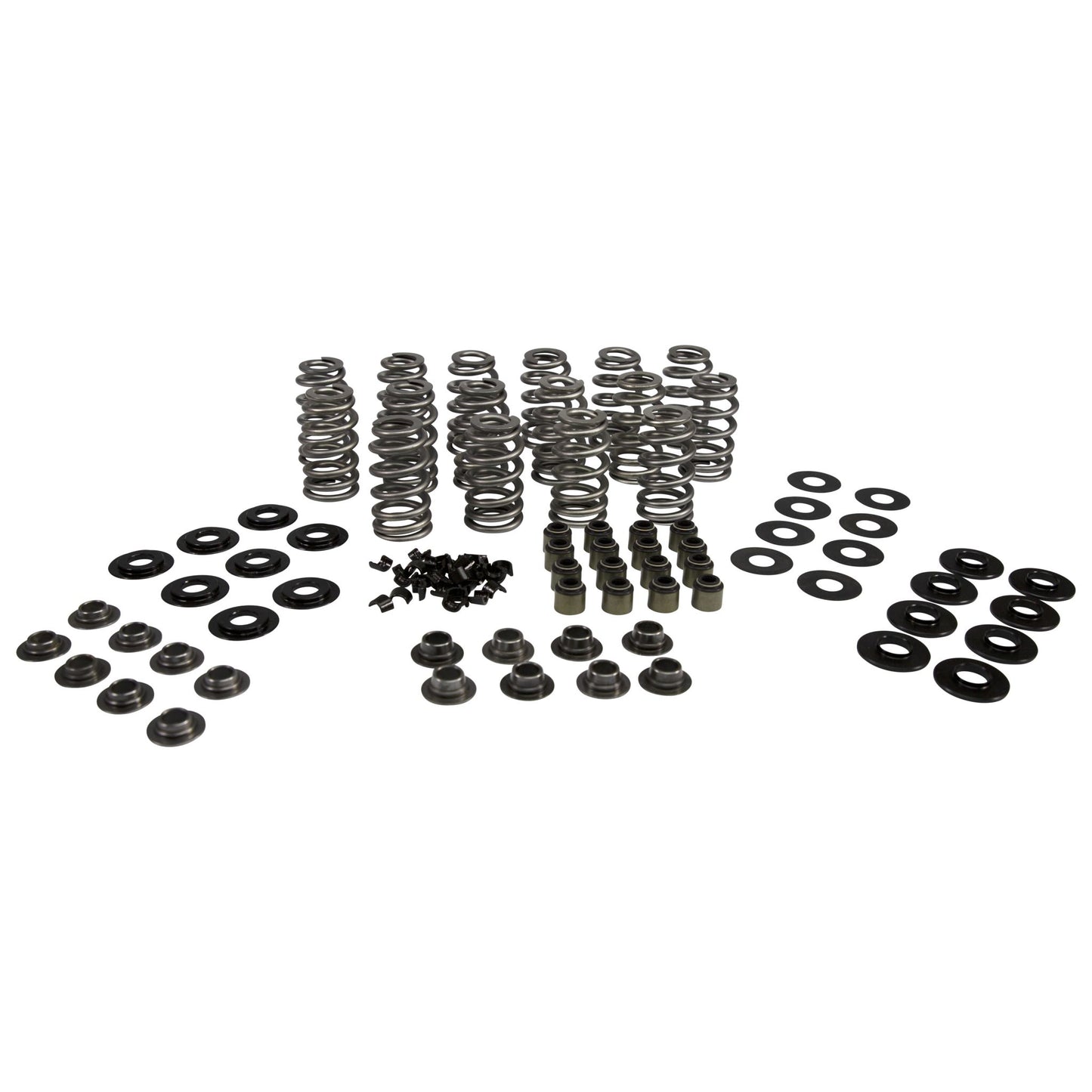

COMP Cams Beehive .600" Max Lift Valve Spring Kit for GM GEN V LT4 w/ Tool Steel Retainers COMP-26918TSD-KIT

Attributes:

• GTIN: 00036584401230
• Brand Name: COMP Cams
• Includes Retainers?: Yes
• Machine Work Required?: No
• Max Lift: 0.6
• Small End Outside Diameter: 1.075
• ID Big End: 0.885
• ID Small End: 0.65
• Coil Bind Height: 1.1
• Installed Height: 1.8
• Seat Pressure: 125
• Open Load: 355
• Spring Rate: 372
• Big End Outside Diameter: 1.31
• Includes Shims?: Yes
• Included Seats: 4680-8
• Spring Seat Type: Chromemoly
• Retainer Material: Tool Steel
• Damper: No
• Valve Spring Series: Beehive
• Spring Style: Beehive
• Free Length: 2.136
• Includes Seats?: Yes
• Number of Springs: 1
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• Amazon ASIN: N/A
• Cam Type: Hydraulic Roller

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 11.8 x 6.4 x 2.9 inches
• Weight: 4.45 lb
