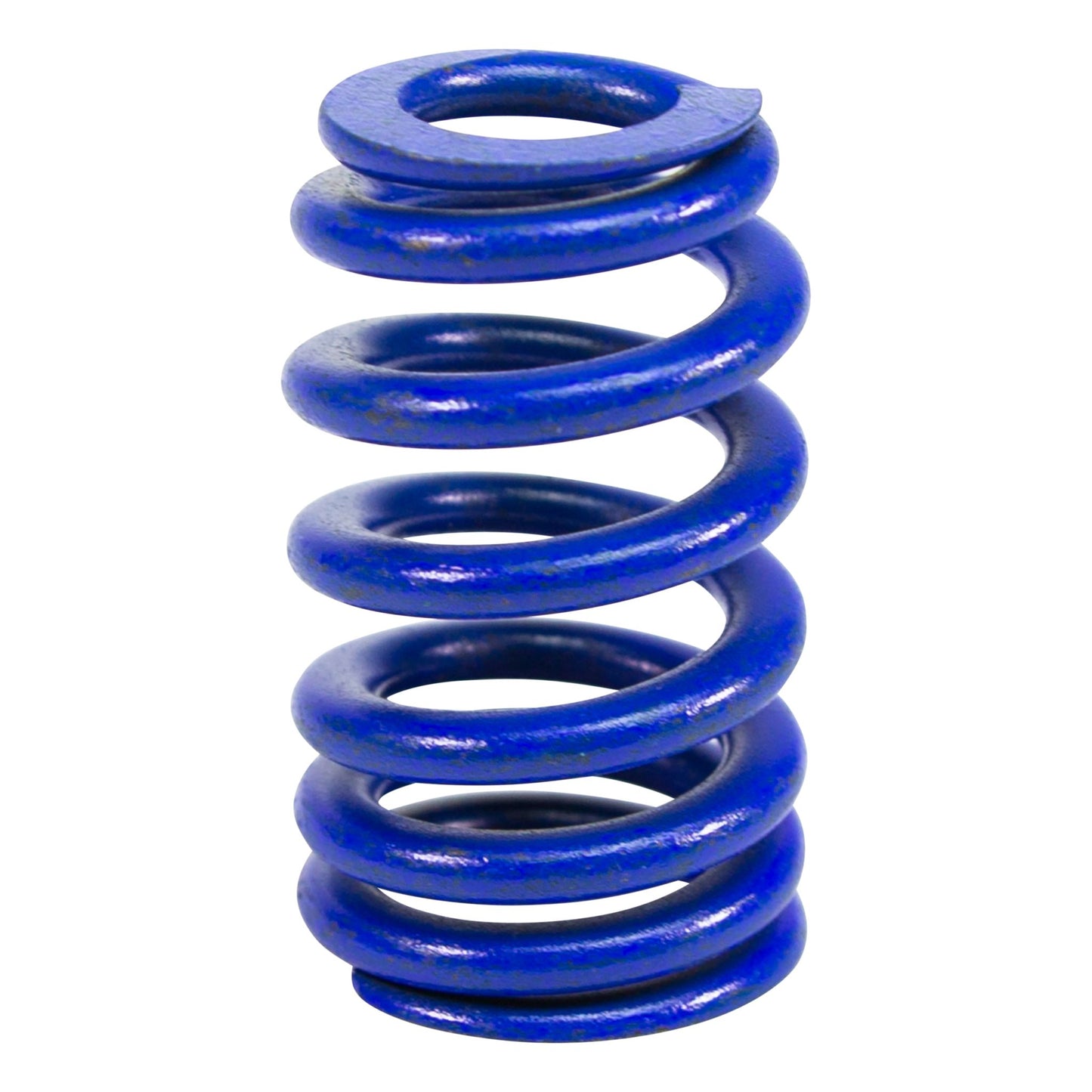

COMP Cams Beehive Hustler Spring for GM 604/CT525 LS Crate Engine COMP-H604-1

Attributes:

• GTIN: 00036584409472
• Brand Name: COMP Cams
• Top Outside Diameter: 1.077
• Open Load: 304
• Seat Pressure: 92
• Installed Height: 1.8
• Coil Bind Height: 1.181
• Bottom Inside Diameter: 0.86
• Bottom Outside Diameter: 1.282
• Top Inside Diameter: 0.655
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A
• Number of Springs: 1
• Compatible Shims: 4753
• Spring Style: Beehive
• Valve Spring Series: Performance Street
• Damper: No
• Compatible Titanium Retainer: 722-1
• Compatible Tool Steel Retainer: 1772-1
• Compatible Chromemoly Steel Retainer: 774-1
• Compatible Spring Seat / Seals: 528-KIT
• Spring Rate: 386

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 4 x 0.8 inches
• Weight: 0.15 lb
