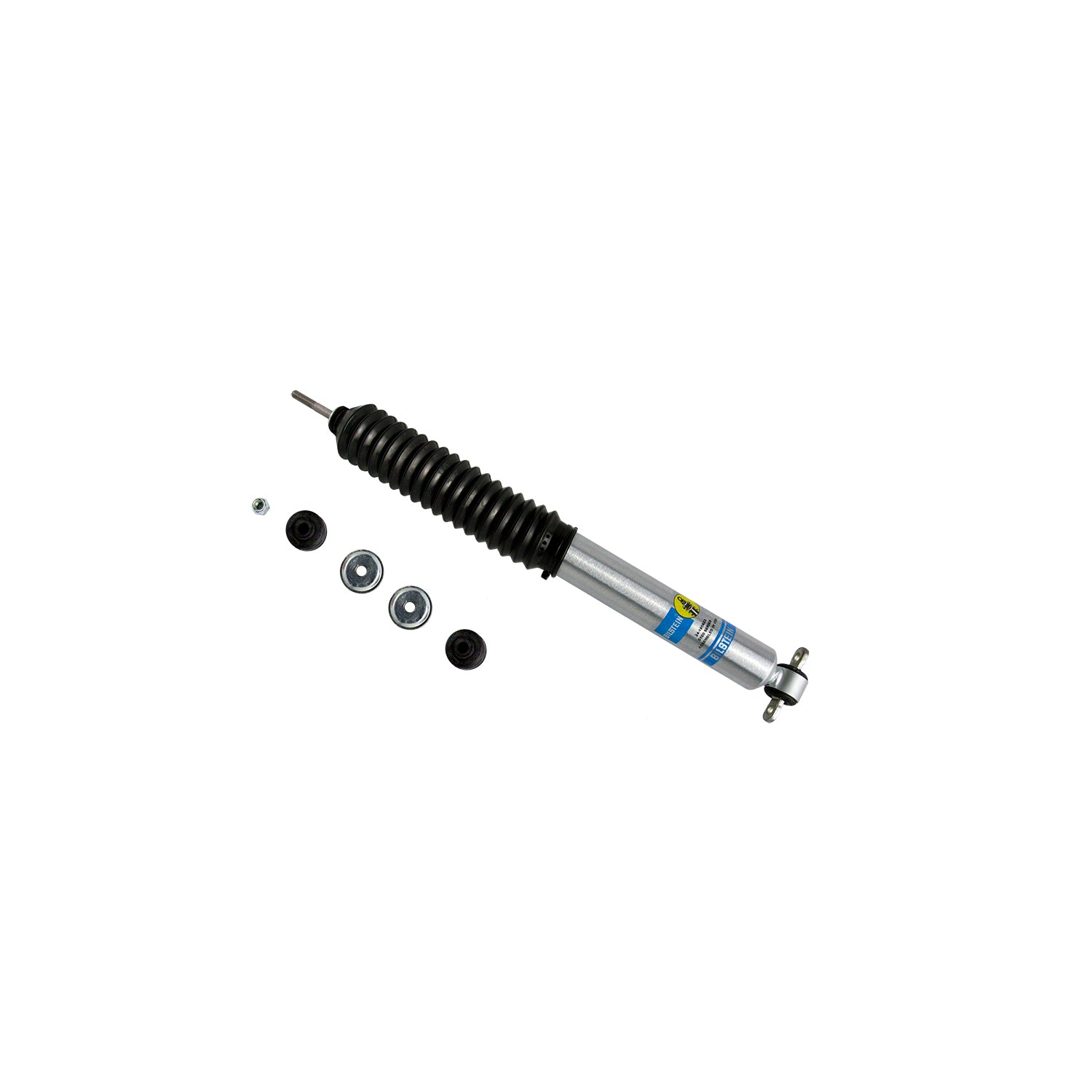

Bilstein Shock Absorbers 24-185622

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860453798
• Brand Name: Bilstein
• Body Diameter (ID): 46mm
• Spring Seat Included: No
• Lower Mount Type: Bar Pin
• Extended Length (IN): 22.09
• Internal Design: Monotube
• Reservoir: No
• Collapsed Length (IN): 13.58
• Boot Included: Black Bellows
• Finish: Zinc Plated
• Extended Length (MM): 561.0
• Upper Mount Type: Stem
• Adjustable Damping: Non-Adjustable
• Collapsed Length (MM): 345.0
• Series: B8 5100
• Body Design: Smooth Body (Non-Coilover)

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.9000 lb
