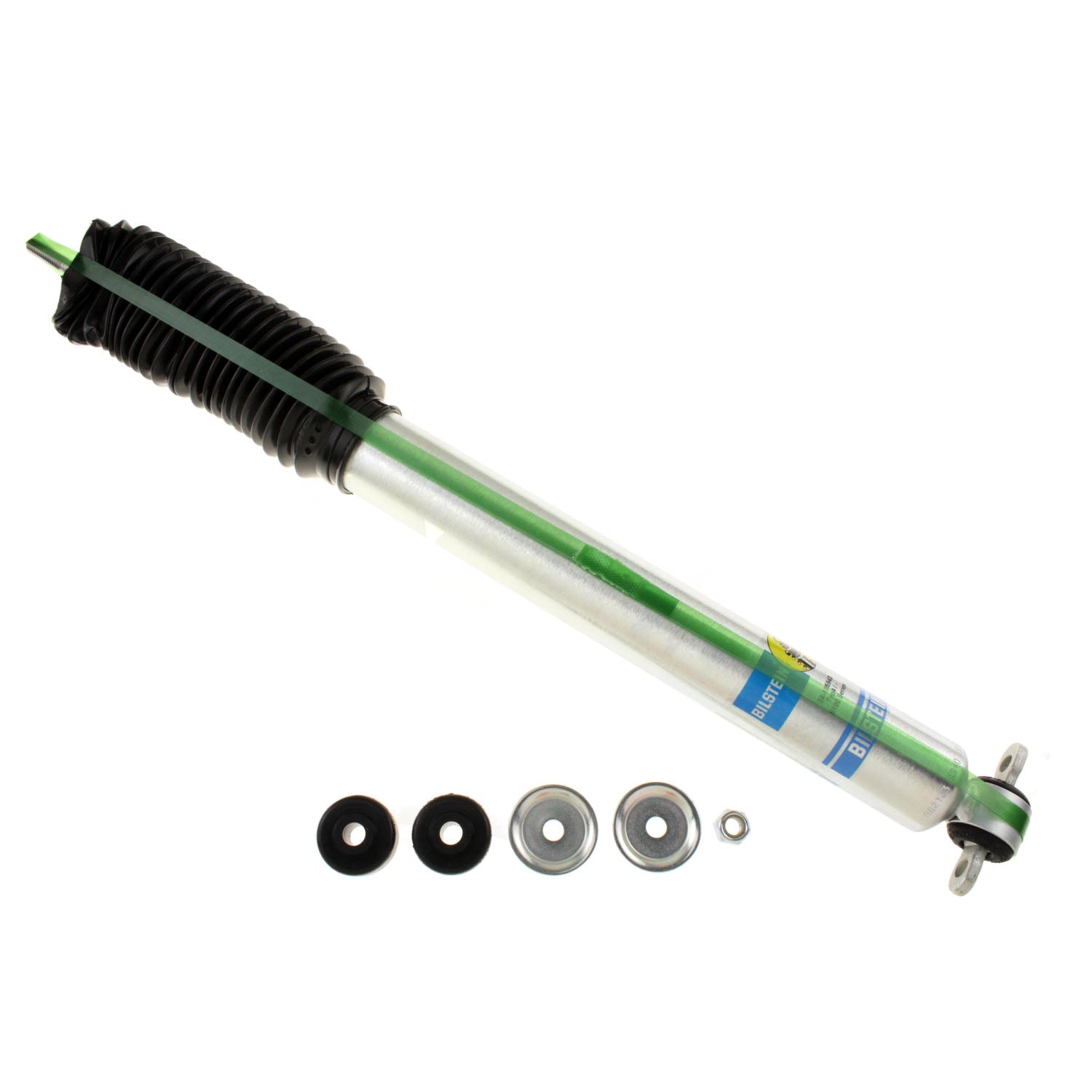

Bilstein Shock Absorbers 24-185943

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860649986
• Brand Name: Bilstein
• Adjustable Damping: Non-Adjustable
• Extended Length (IN): 28.44
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length (MM): 431.0
• Internal Design: Monotube
• Body Diameter (ID): 46mm
• Collapsed Length (IN): 16.97
• Spring Seat Included: No
• Lower Mount Type: Bar Pin
• Extended Length (MM): 722.5
• Reservoir: No
• Upper Mount Type: Stem
• Boot Included: Black Bellows
• Series: B8 5100
• Finish: Zinc Plated

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 5.7100 lb
