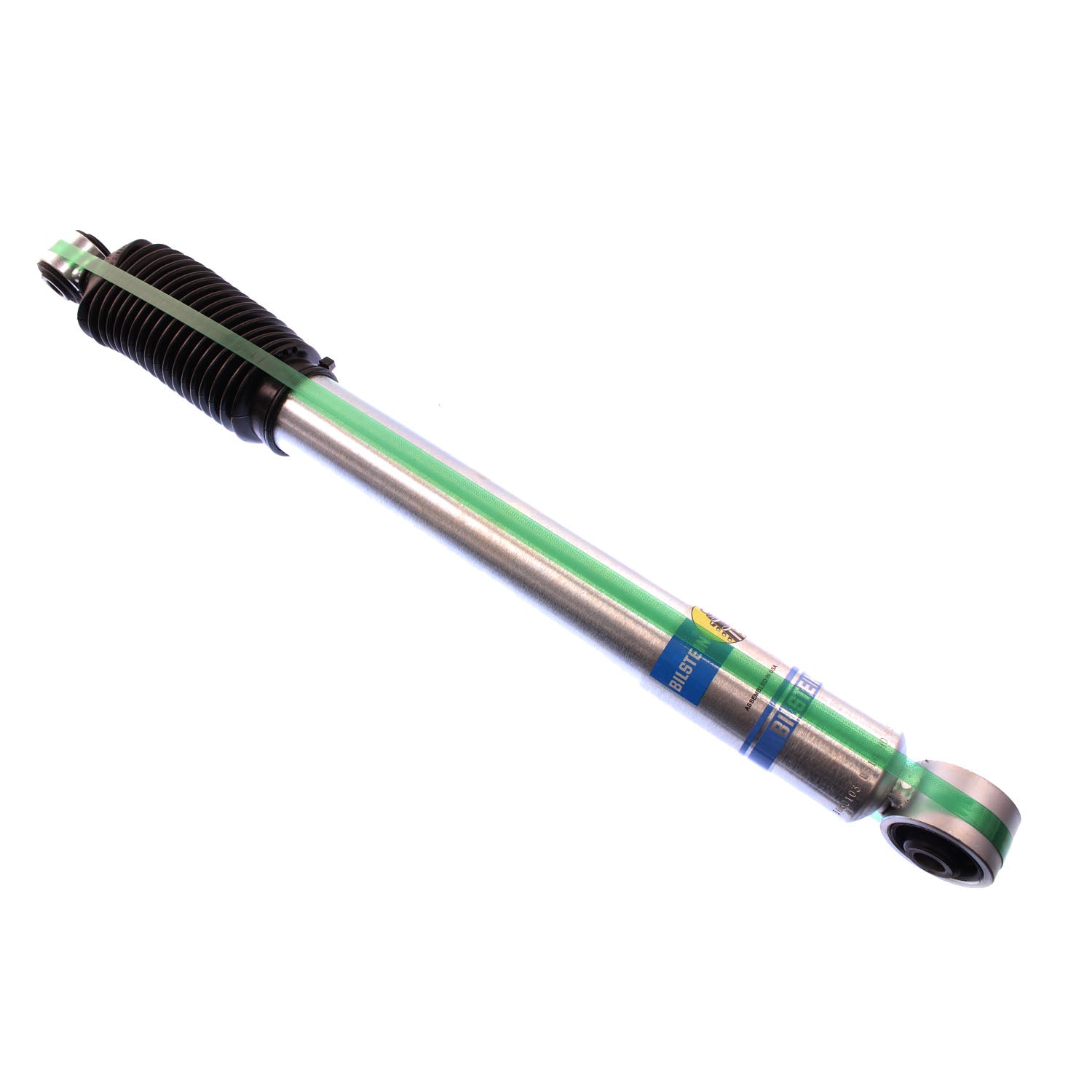

Bilstein Shock Absorbers 24-186636

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860482033
• Brand Name: Bilstein
• Finish: Zinc Plated
• Extended Length (IN): 29.92
• Lower Mount Type: Eye 14.1mm
• Collapsed Length (IN): 18.17
• Collapsed Length (MM): 461.5
• Reservoir: No
• Internal Design: Monotube
• Body Design: Smooth Body (Non-Coilover)
• Extended Length (MM): 760.0
• Body Diameter (ID): 46mm
• Upper Mount Type: Eye 14.1mm
• Boot Included: Black Bellows
• Series: B8 5100
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.6300 lb
