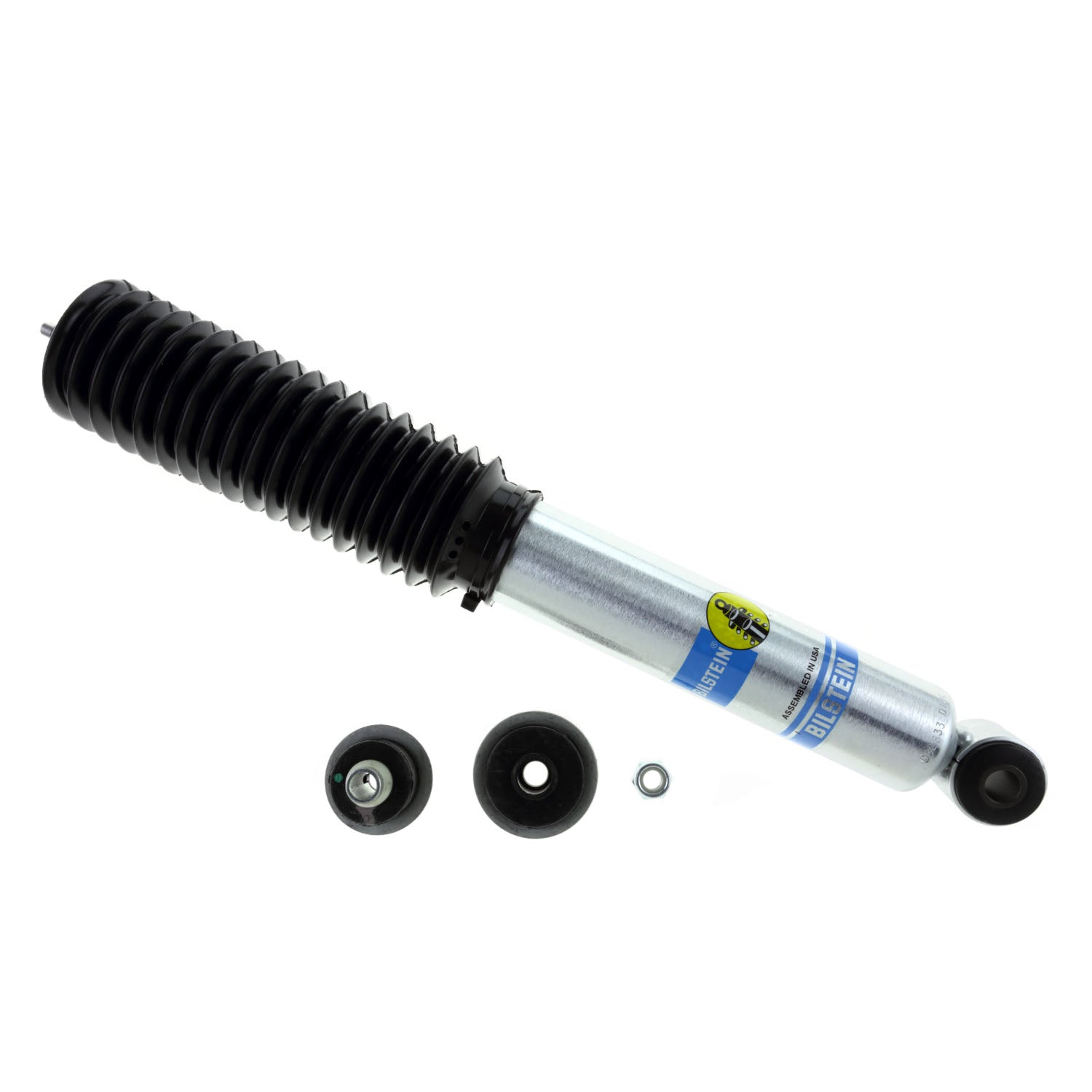

Bilstein Shock Absorbers 24-186735

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860651040
• Brand Name: Bilstein
• Body Design: Smooth Body (Non-Coilover)
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Boot Included: Black Bellows
• Extended Length (IN): 15.76
• Collapsed Length (MM): 287.0
• Series: B8 5100
• Lower Mount Type: Eye 14.1mm
• Body Diameter (ID): 46mm
• Reservoir: No
• Finish: Zinc Plated
• Collapsed Length (IN): 11.30
• Upper Mount Type: Stem
• Internal Design: Monotube
• Extended Length (MM): 400.2

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 4.3000 lb
