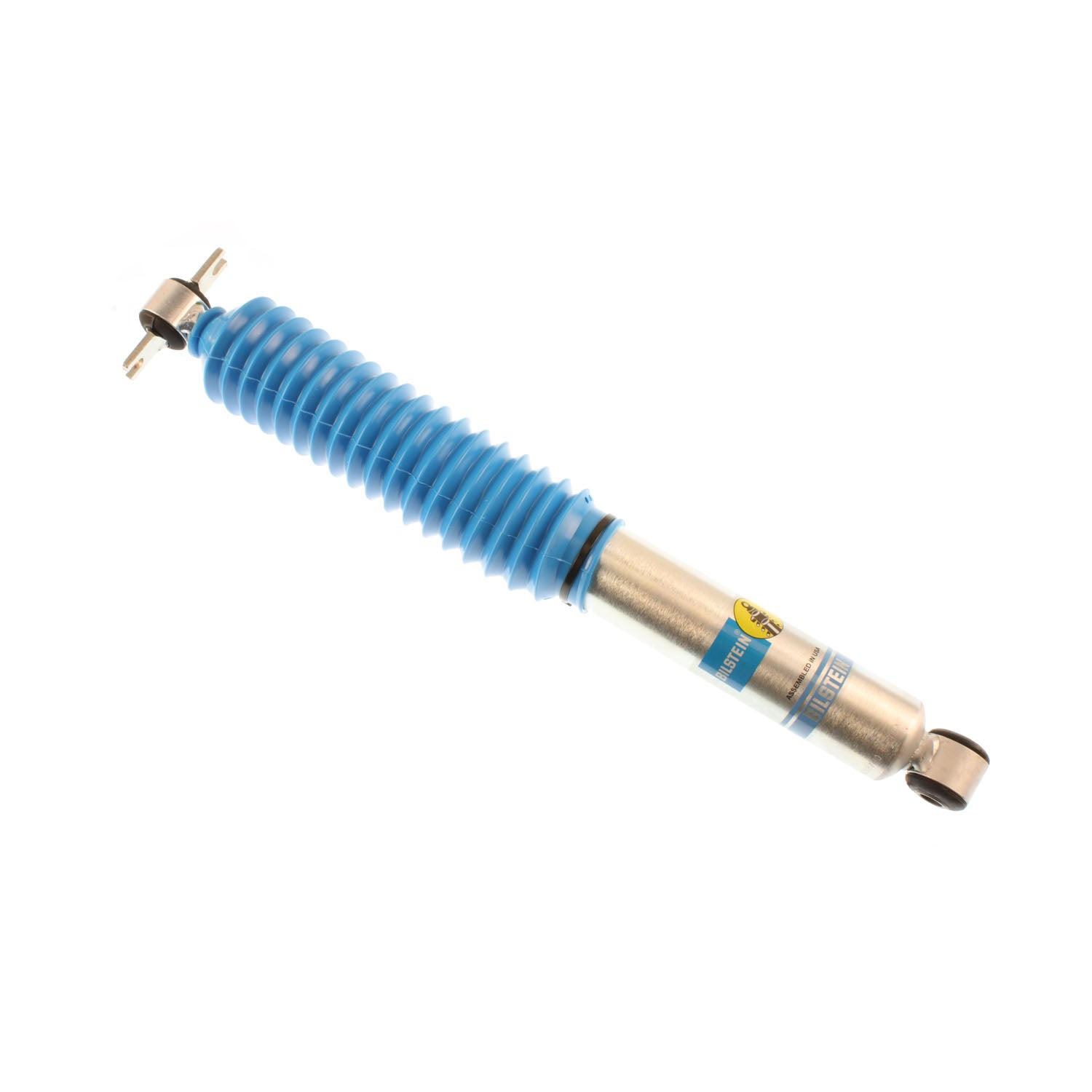

24-186827 Bilstein Shock Absorbers

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860579962
• Brand Name: Bilstein
• Internal Design: Monotube
• Series: B8 5100
• Extended Length (MM): 510.0
• Reservoir: No
• Body Diameter (ID): 46mm
• Collapsed Length (IN): 12.81
• Upper Mount Type: Bar Pin
• Collapsed Length (MM): 325.3
• Lower Mount Type: Eye 12.7mm
• Spring Seat Included: No
• Finish: Zinc Plated
• Body Design: Smooth Body (Non-Coilover)
• Boot Included: Blue Straight
• Extended Length (IN): 20.08

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Superseded

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 3.5500 x 3.5500 inches
• Weight: 4.5400 lb
