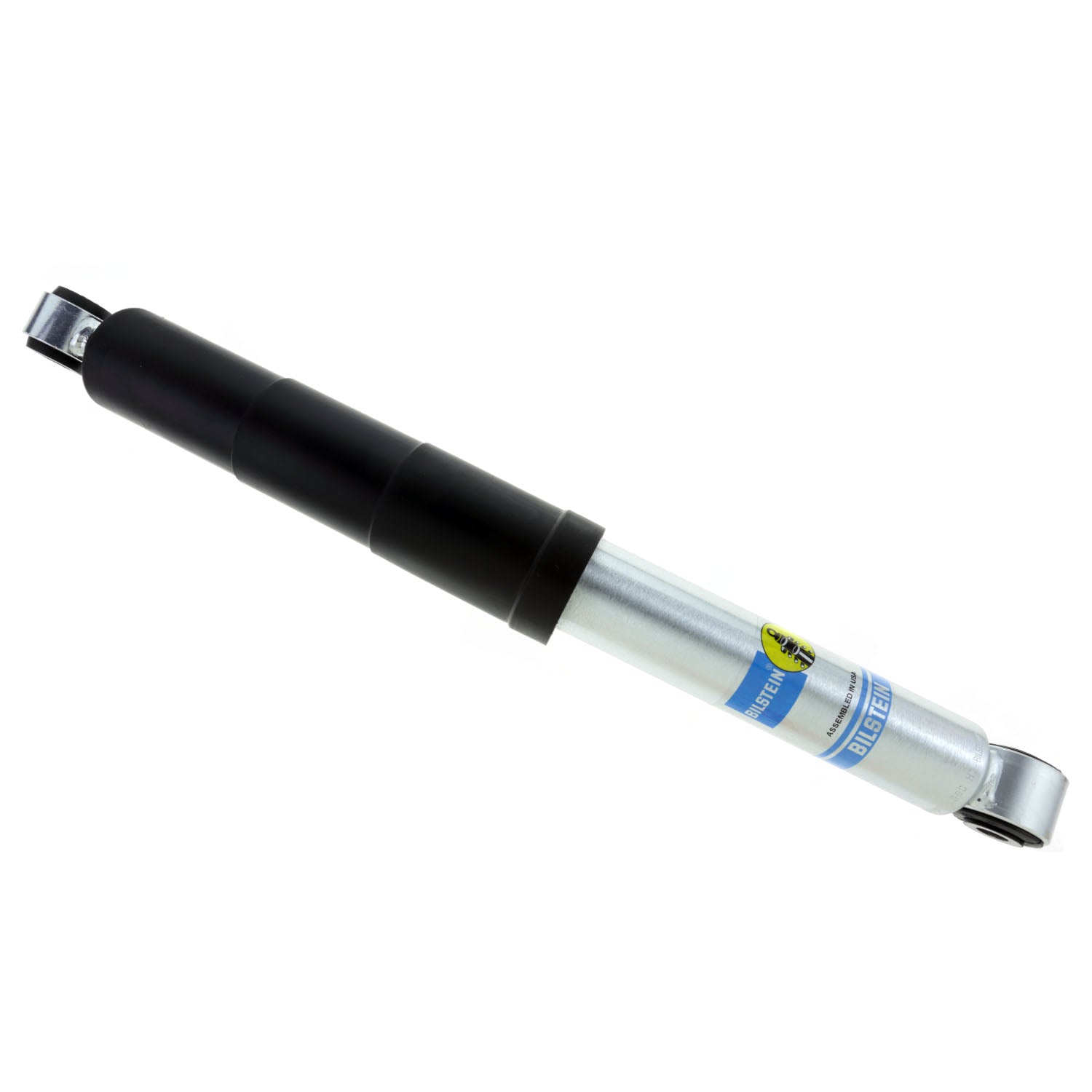

Bilstein Shock Absorbers 24-187169

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860599120
• Brand Name: Bilstein
• Internal Design: Monotube
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Extended Length (IN): 20.87
• Upper Mount Type: Eye 16mm
• Extended Length (MM): 530.0
• Finish: Zinc Plated
• Collapsed Length (MM): 344.0
• Reservoir: No
• Collapsed Length (IN): 13.54
• Series: B8 5100
• Boot Included: Black Straight
• Lower Mount Type: Eye 14.1mm
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (ID): 46mm

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.7000 lb
