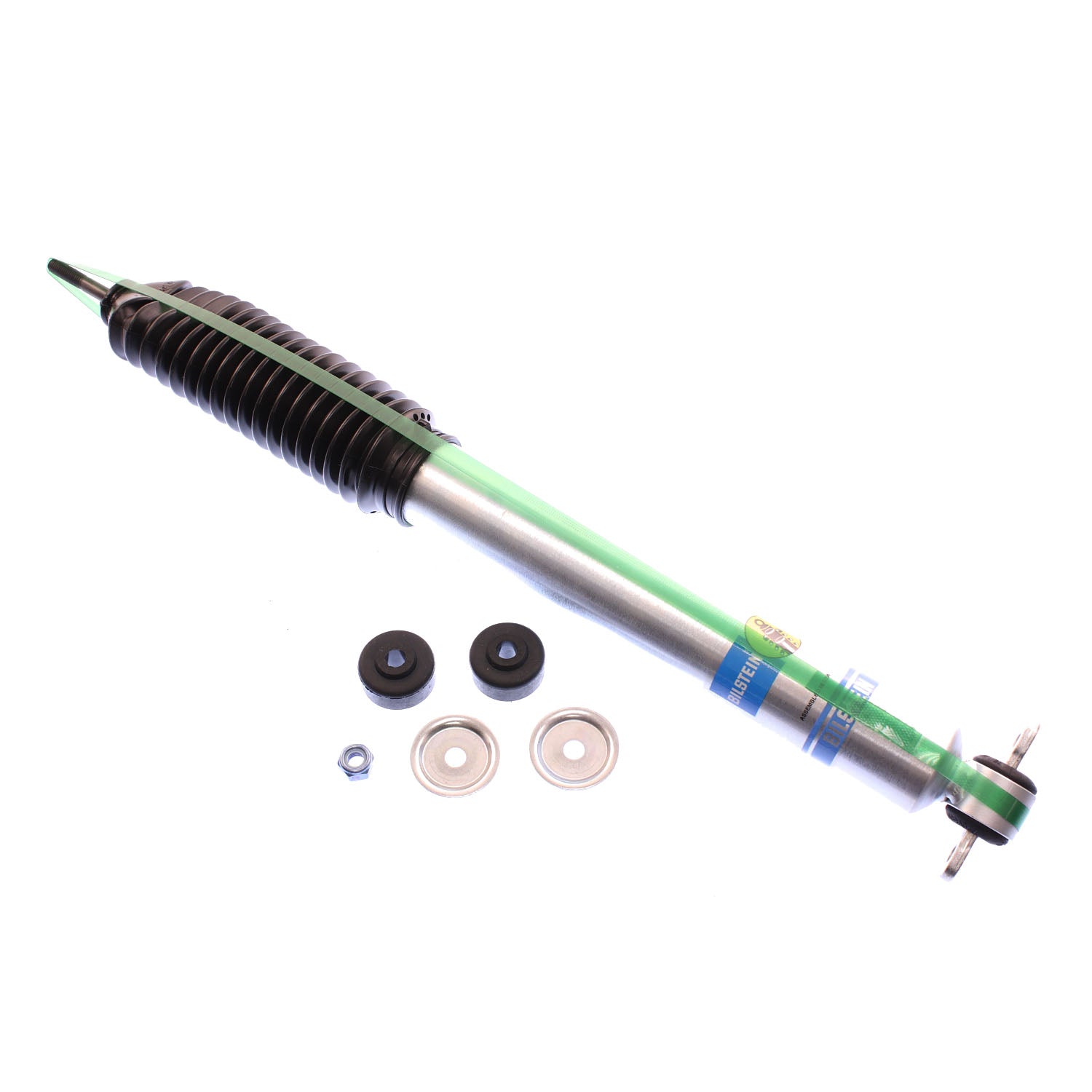

Bilstein Shock Absorbers 24-188197

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860591285
• Brand Name: Bilstein
• Extended Length (IN): 24.61
• Collapsed Length (IN): 14.98
• Body Diameter (ID): 46mm
• Collapsed Length (MM): 380.5
• Internal Design: Monotube
• Lower Mount Type: Bar Pin
• Boot Included: Black Bellows
• Upper Mount Type: Stem
• Spring Seat Included: No
• Adjustable Damping: Non-Adjustable
• Reservoir: No
• Extended Length (MM): 625.2
• Series: B8 5100
• Finish: Zinc Plated
• Body Design: Smooth Body (Non-Coilover)

Extended Information:

• Country of Origin: Mexico
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.4100 lb
