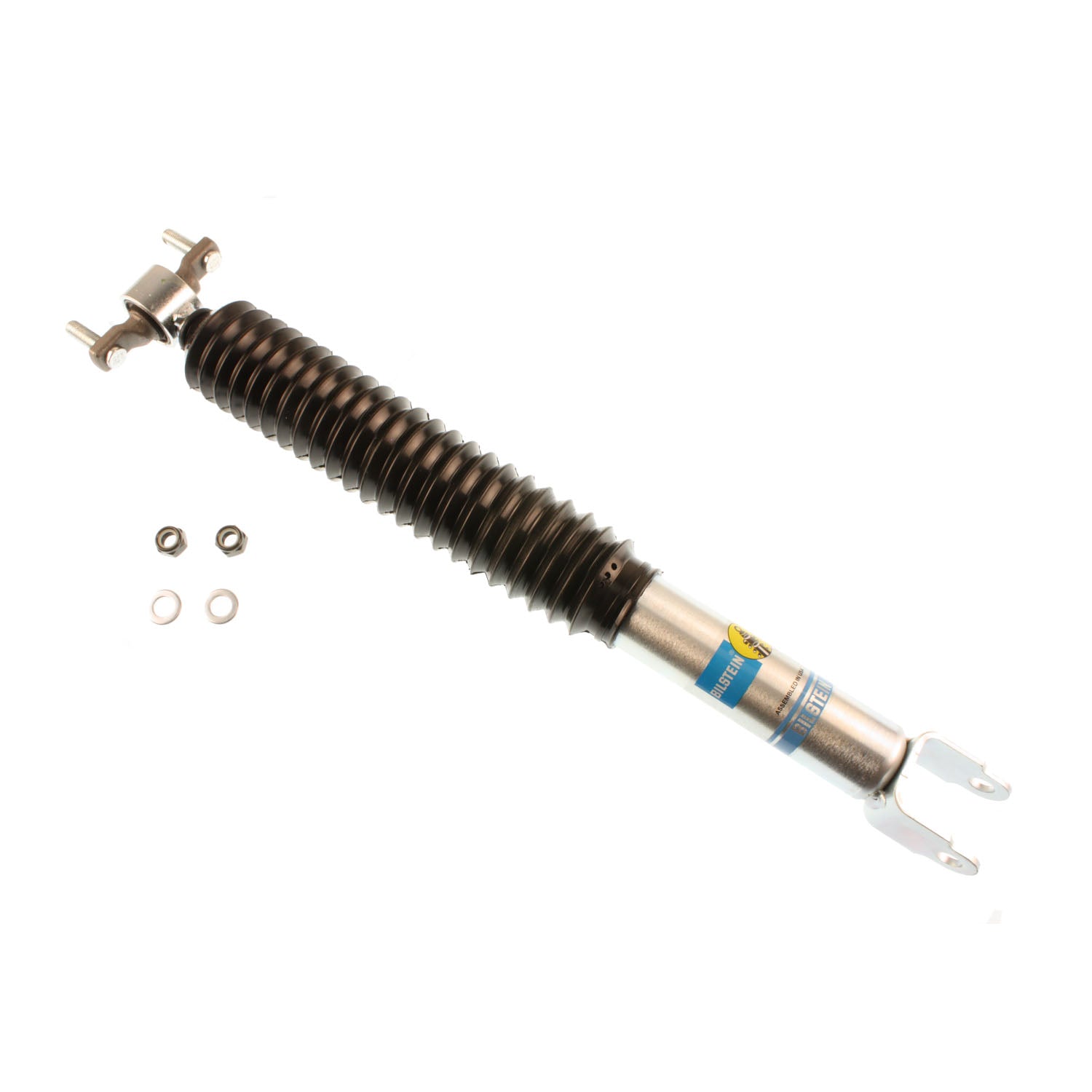

Bilstein Shock Absorbers 24-218023

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860697093
• Brand Name: Bilstein
• Internal Design: Monotube
• Extended Length (MM): 615.5
• Lower Mount Type: Clevis
• Body Design: Smooth Body (Non-Coilover)
• Finish: Zinc Plated
• Spring Seat Included: No
• Reservoir: No
• Boot Included: Black Bellows
• Series: B8 5100
• Collapsed Length (MM): 406.0
• Extended Length (IN): 24.23
• Collapsed Length (IN): 15.98
• Adjustable Damping: Non-Adjustable
• Body Diameter (ID): 46mm
• Upper Mount Type: Bar Pin

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 6.2400 lb
