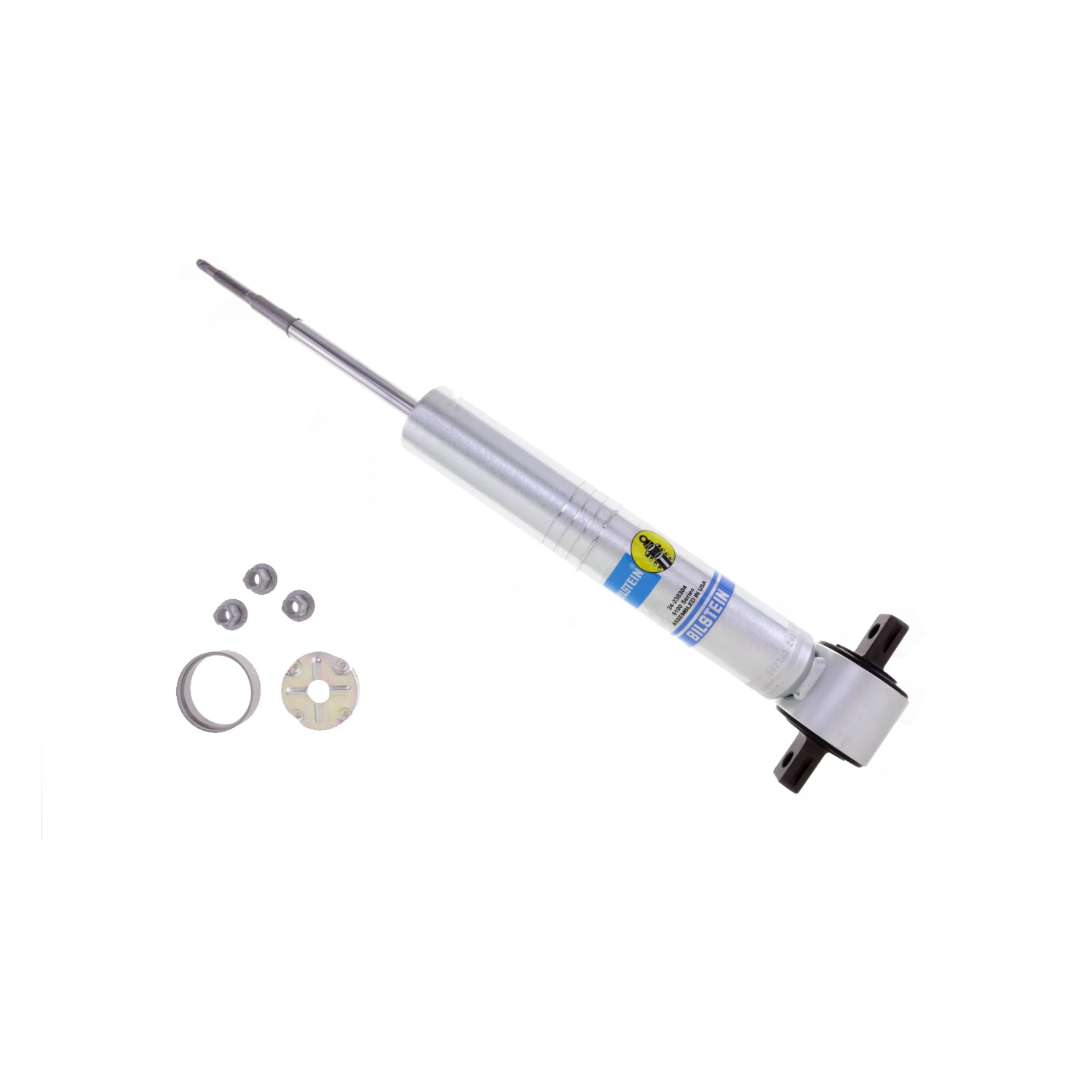

Bilstein Shock Absorbers 24-238304

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Attributes:

• GTIN: 00651860746678
• Brand Name: Bilstein
• Extended Length (MM): 479.0
• Upper Mount Type: Stem
• Reservoir: No
• Adjustable Damping: Non-Adjustable
• Lower Mount Type: Bar Pin
• Boot Included: No
• Series: B8 5100 (Ride Height Adjustable)
• Collapsed Length (MM): 381.0
• Internal Design: Monotube
• Extended Length (IN): 18.86
• Body Design: Snap Ring Grooved Body (Coilover)
• Spring Seat Included: No
• Finish: Zinc Plated
• Body Diameter (ID): 46mm
• Collapsed Length (IN): 15.00

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 6.9000 lb
