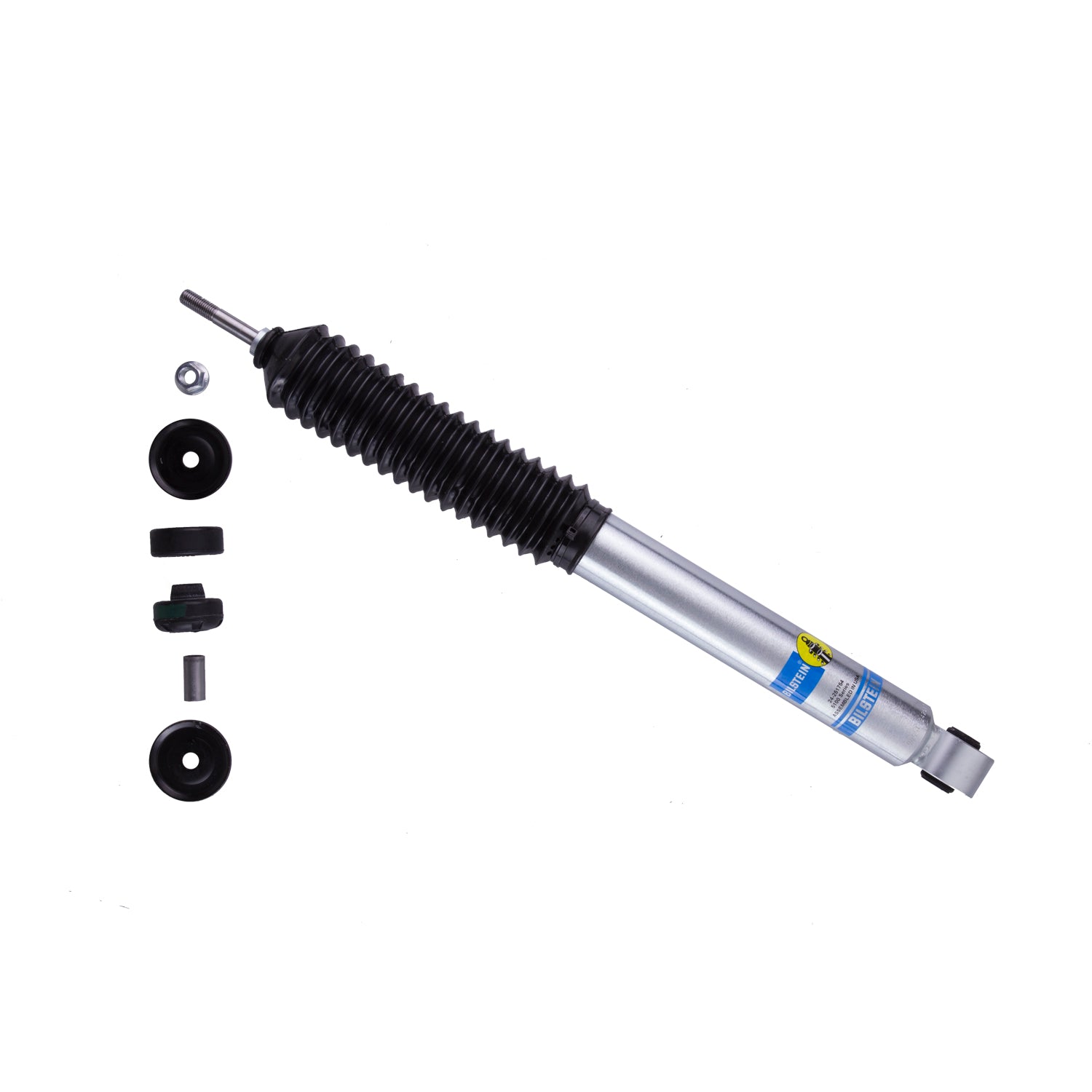

24-251754 Bilstein Shock Absorbers

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860767420
• Brand Name: Bilstein
• Internal Design: Monotube
• Body Design: Smooth Body (Non-Coilover)
• Reservoir: No
• Boot Included: Black Bellows
• Finish: Zinc Plated
• Spring Seat Included: No
• Extended Length (MM): 575.0
• Collapsed Length (MM): 382.0
• Lower Mount Type: Eye 14.1mm
• Collapsed Length (IN): 15.04
• Series: B8 5100
• Upper Mount Type: Stem
• Body Diameter (ID): 46mm
• Adjustable Damping: Non-Adjustable
• Extended Length (IN): 22.64

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Superseded

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 5.7100 lb
