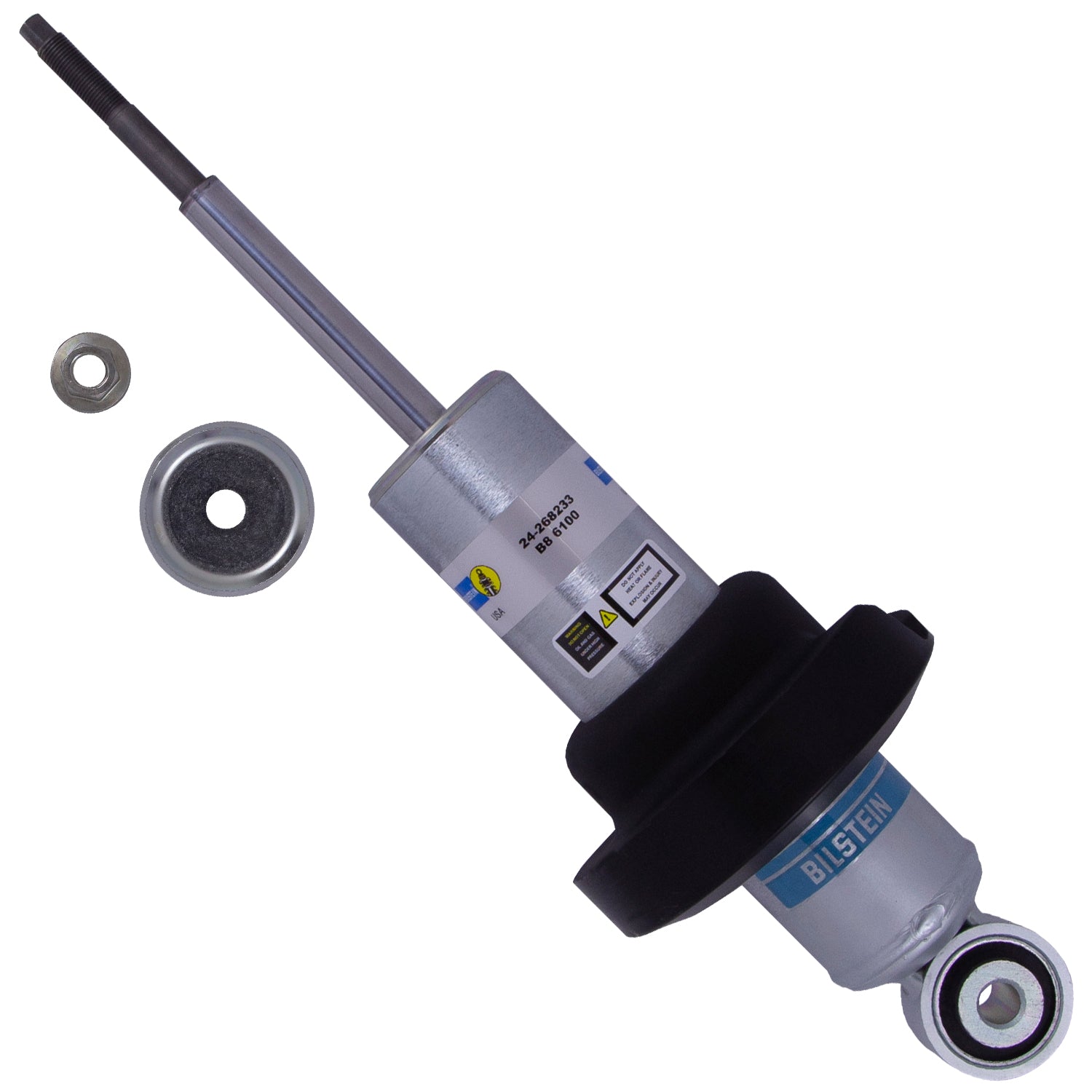

24-268233 Bilstein Shock Absorbers

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

Attributes:

• GTIN: 00651860831992
• Brand Name: Bilstein
• Lower Mount Type: Eye 14.1mm
• Reservoir: No
• Finish: Zinc Plated
• Extended Length (IN): 15.31
• Collapsed Length (MM): 278.0
• Internal Design: Monotube
• Series: B8 6100 (Ride Height Adjustable)
• Collapsed Length (IN): 10.94
• Adjustable Damping: Non-Adjustable
• Upper Mount Type: Stem
• Boot Included: No
• Spring Seat Included: Yes
• Body Design: Snap Ring Grooved Body (Coilover)
• Extended Length (MM): 389.0
• Body Diameter (ID): 60mm

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Superseded

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 6.1000 x 6.1000 inches
• Weight: 15.0000 lb
