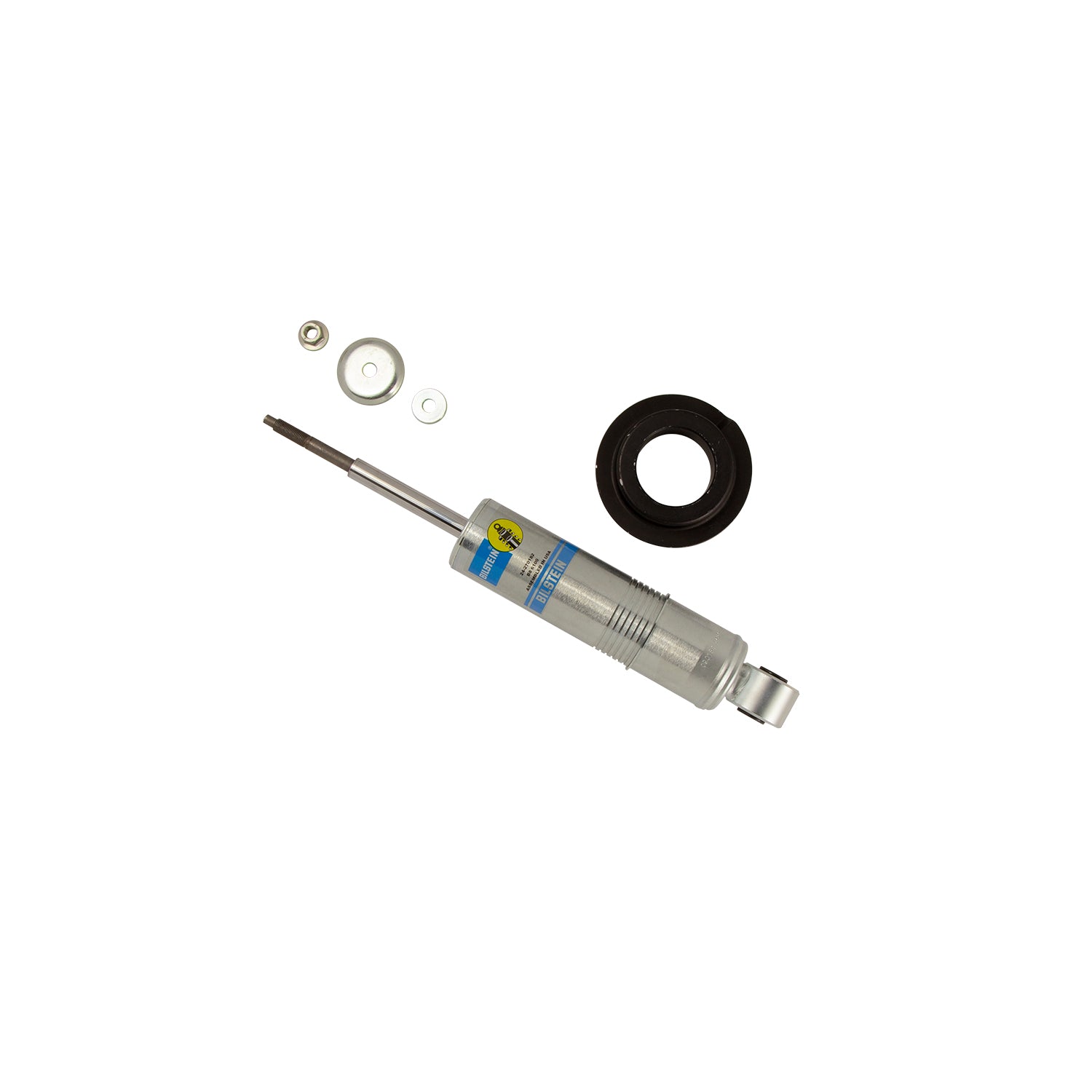

24-270182 Bilstein Shock Absorbers

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

Attributes:

• GTIN: 00651860813356
• Brand Name: Bilstein
• Collapsed Length (MM): 279.2
• Reservoir: No
• Spring Seat Included: Yes
• Boot Included: No
• Series: B8 6100 (Ride Height Adjustable)
• Internal Design: Monotube
• Body Diameter (ID): 60mm
• Lower Mount Type: Eye 14.2mm
• Finish: Zinc Plated
• Adjustable Damping: Non-Adjustable
• Extended Length (MM): 384.5
• Extended Length (IN): 15.14
• Upper Mount Type: Stem
• Collapsed Length (IN): 10.99
• Body Design: Snap Ring Grooved Body (Coilover)

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Superseded

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 6.1000 x 6.1000 inches
• Weight: 9.2000 lb
