Bilstein Shock Absorbers 24-274999

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860807539
• Brand Name: Bilstein
• Extended Length (IN): 14.63
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length (IN): 9.88
• Internal Design: Monotube
• Upper Mount Type: Stem
• Reservoir: No
• Collapsed Length (MM): 251.0
• Body Diameter (ID): 46mm
• Extended Length (MM): 371.5
• Spring Seat Included: No
• Finish: Zinc Plated
• Series: B8 5100

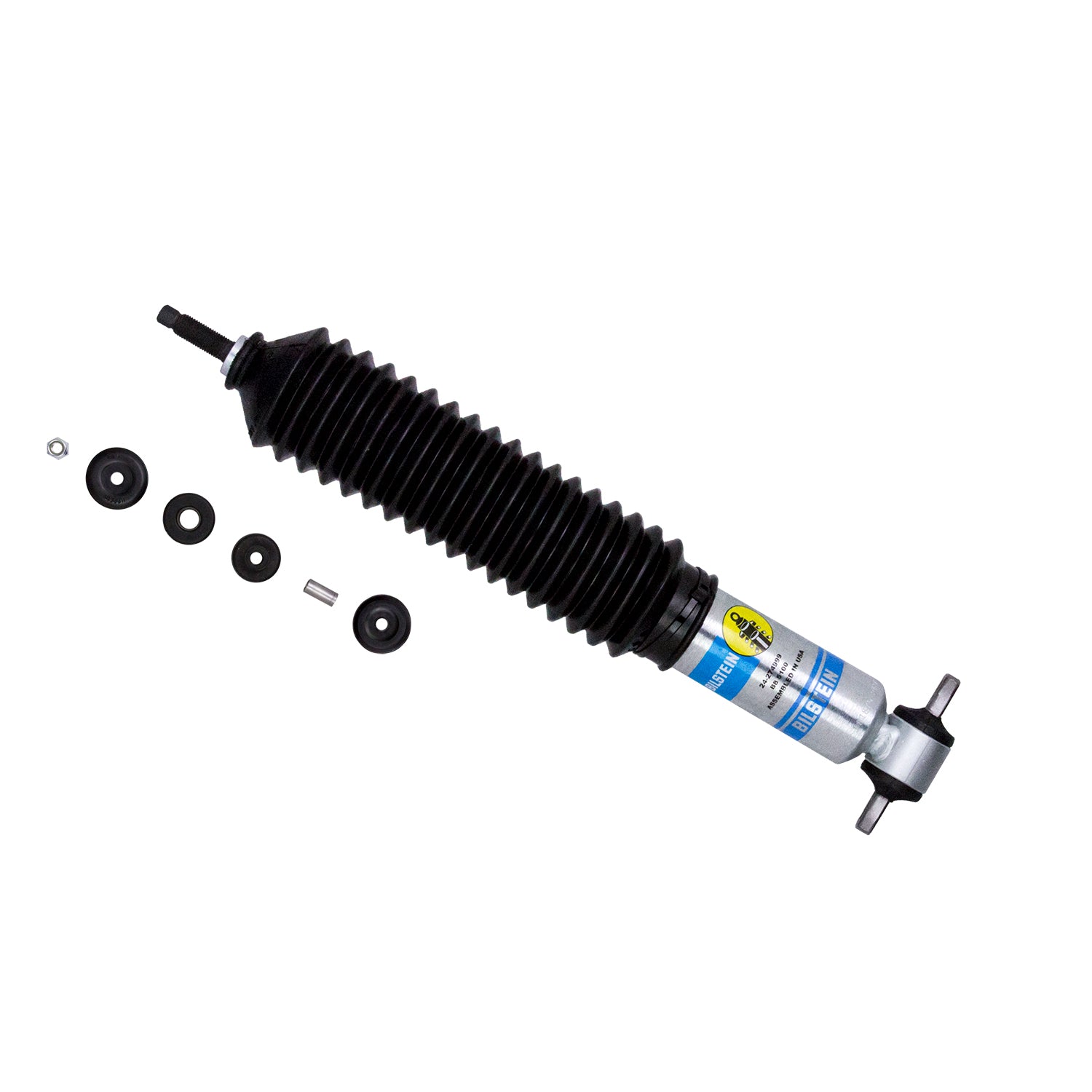

• Boot Included: Black Bellows
• Lower Mount Type: Eye Crossbar
• Adjustable Damping: Non-Adjustable

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 3.5400 x 3.5400 inches
• Weight: 4.6100 lb
