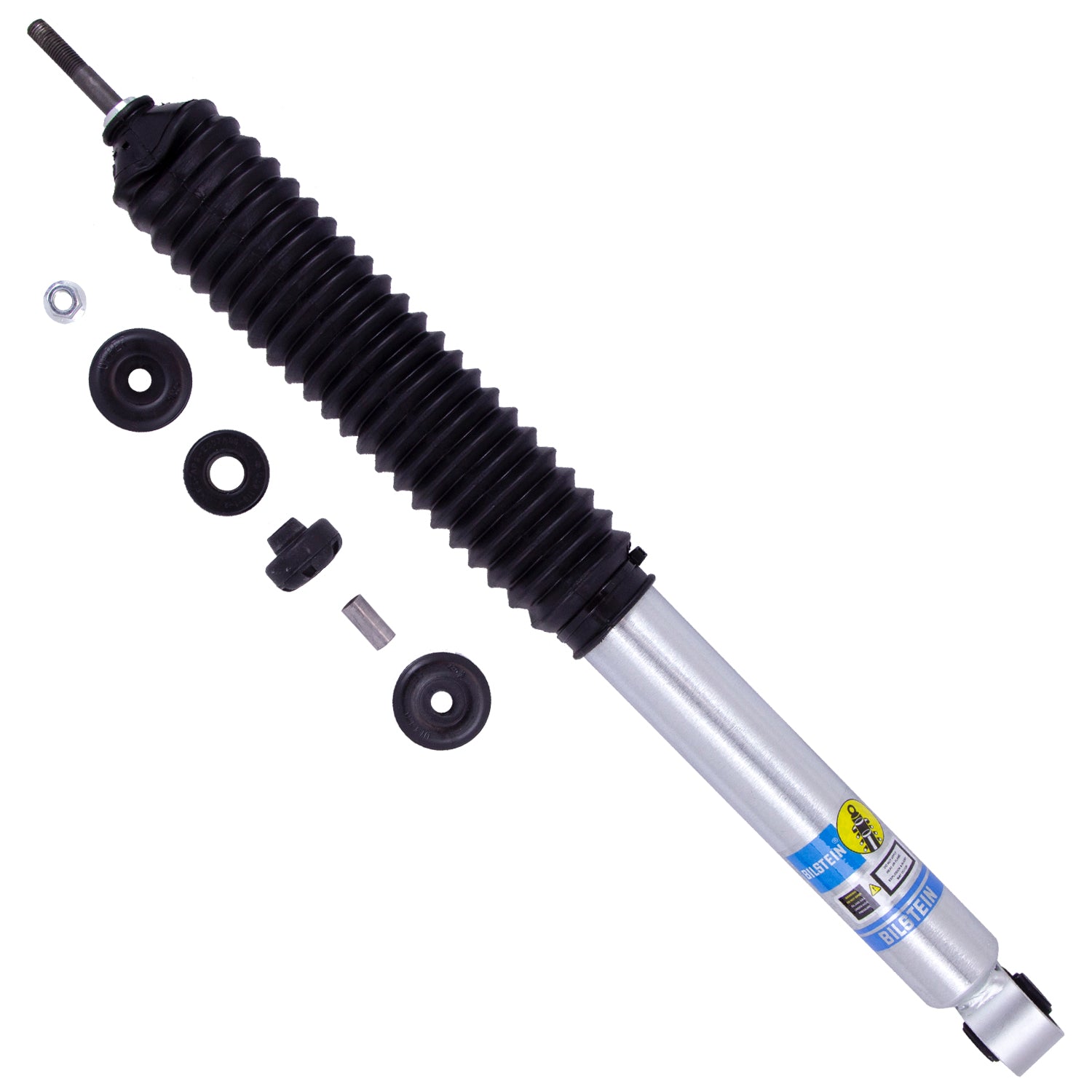

Bilstein Shock Absorbers 24-285674

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860856506
• Brand Name: Bilstein
• Lower Mount Type: Eye 14.1mm
• Extended Length (IN): 25.47
• Collapsed Length (IN): 16.57
• Spring Seat Included: No
• Body Design: Smooth Body (Non-coilover)
• Extended Length (MM): 647.0
• Series: B8 5100
• Finish: Zinc Plated
• Boot Included: Black Bellows
• Adjustable Damping: Non-Adjustable
• Reservoir: No
• Internal Design: Monotube
• Collapsed Length (MM): 421.0
• Body Diameter (ID): 46mm
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 6.2000 lb
