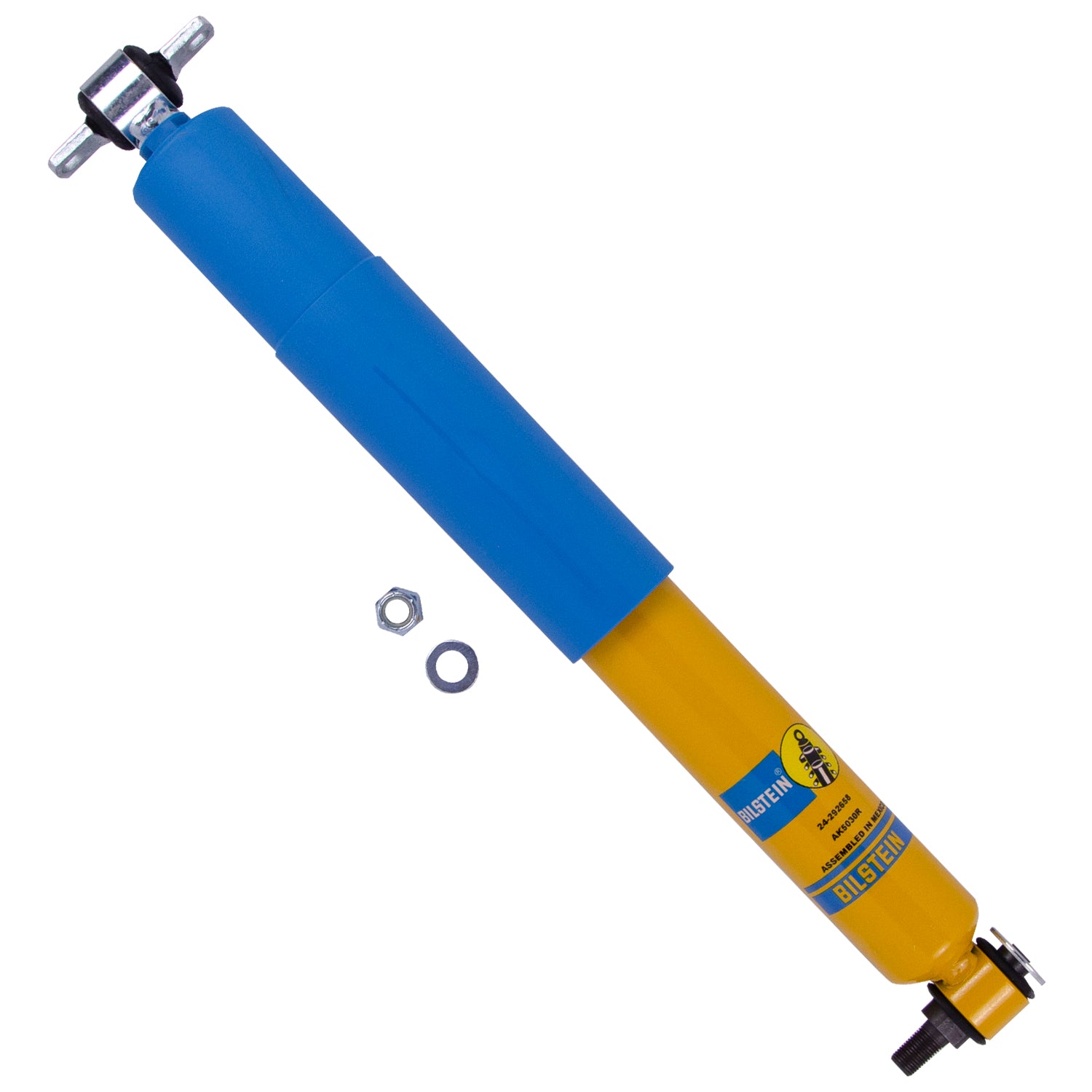

Bilstein Shock Absorbers 24-292658

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Attributes:

• GTIN: 00651860831336
• Brand Name: Bilstein
• Finish: Yellow Paint
• Body Material: Steel
• Extended Length (IN): 20.28
• Body Diameter (ID): 46mm
• Internal Design: Monotube
• Extended Length (MM): 515.0
• Collapsed Length (IN): 13.11
• Boot Included: Blue Straight
• Valving Identifier: 300/120
• Body Design: Stock Mount Smooth Body
• Collapsed Length (MM): 333.0
• Upper Mount Type: Bar Pin
• Compression @0.52m/s: 805
• Rebound @0.52m/s: 2730
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Series: AK Series
• Piston Type: Digressive
• Lower Mount Type: Cantilever

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 3.5500 x 3.5500 inches
• Weight: 4.4000 lb
