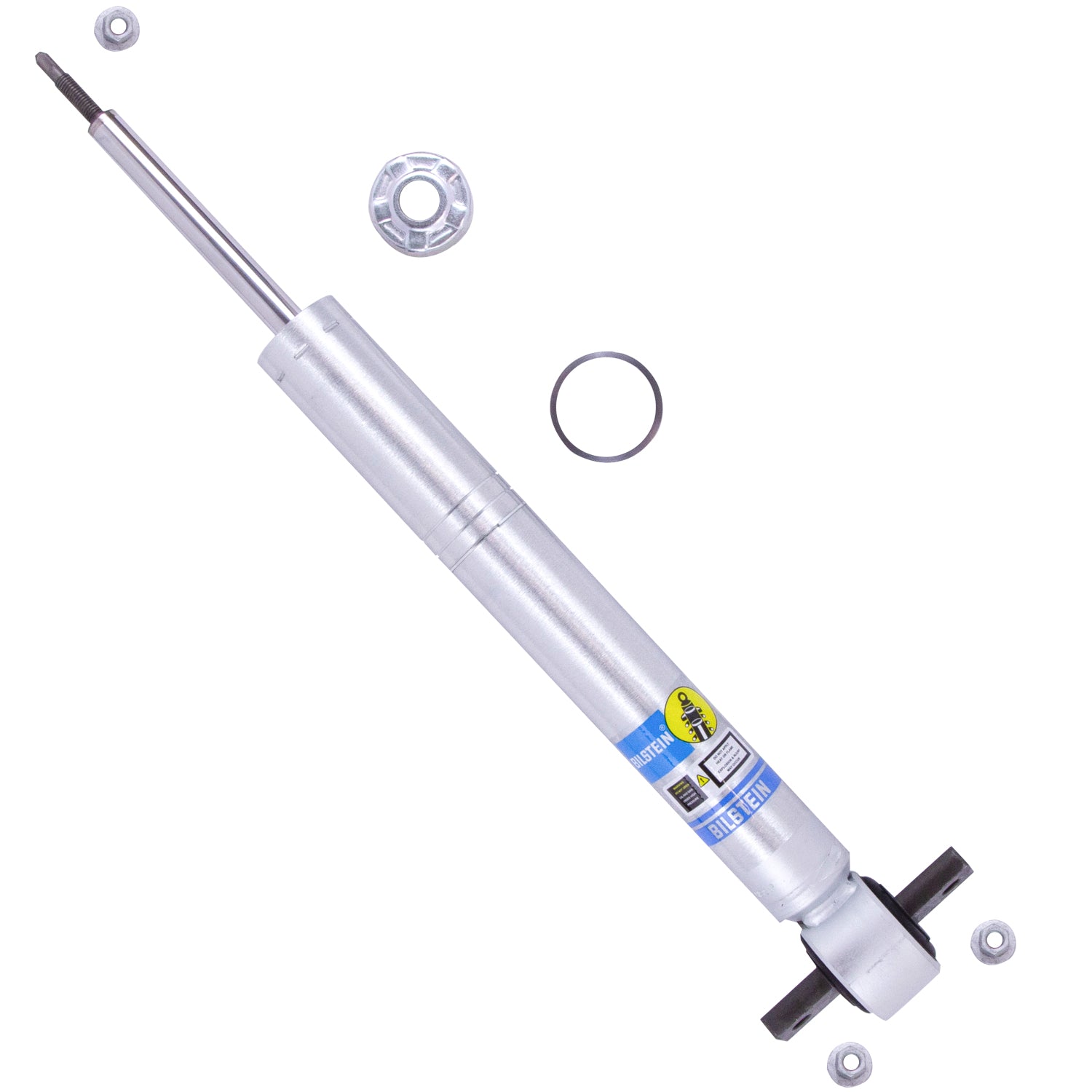

Bilstein Shock Absorbers 24-309509

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Attributes:

• GTIN: 00651860857381
• Brand Name: Bilstein
• Body Design: Snap Ring Grooved Body (Coilover)
• Boot Included: No
• Collapsed Length (IN): 17.58
• Extended Length (MM): 558.0
• Finish: Zinc Plated
• Reservoir: No
• Extended Length (IN): 21.97
• Series: B8 5100 (Ride Height Adjustable)
• Upper Mount Type: Stem
• Body Diameter (ID): 46mm
• Adjustable Damping: Non-Adjustable
• Collapsed Length (MM): 446.6
• Lower Mount Type: Bar Pin
• Internal Design: Monotube
• Spring Seat Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 7.9000 lb
