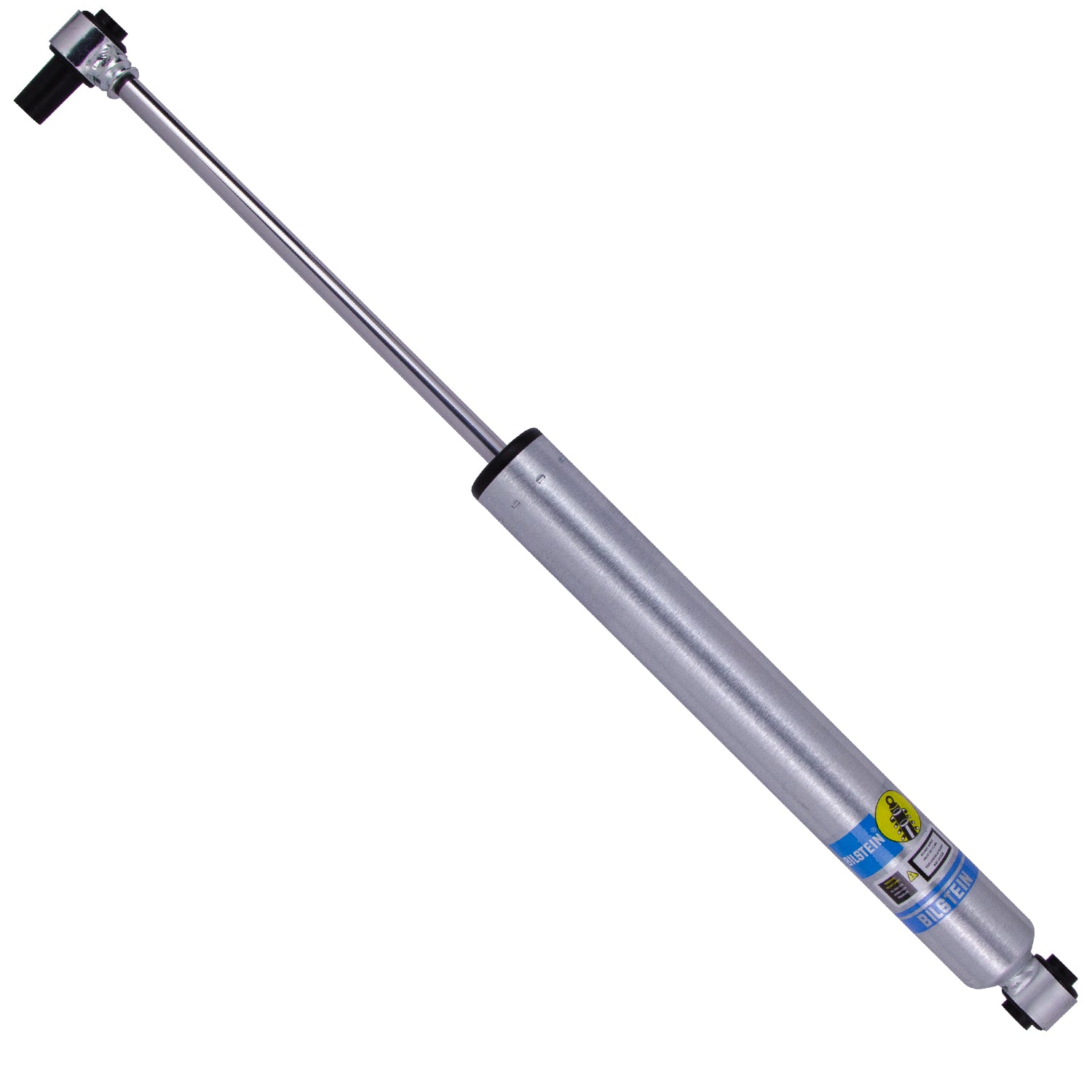

Bilstein Shock Absorbers 24-315067

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860865492
• Brand Name: Bilstein
• Internal Design: Monotube
• Body Diameter (ID): 46mm
• Extended Length (MM): 730.5
• Body Design: Smooth Body (Non-coilover)
• Collapsed Length (MM): 470.5
• Series: B8 5100
• Collapsed Length (IN): 18.52
• Upper Mount Type: Eye 12.8mm
• Reservoir: No
• Lower Mount Type: Eye 12.8mm
• Boot Included: No
• Adjustable Damping: Non-Adjustable
• Finish: Zinc Plated
• Spring Seat Included: No
• Extended Length (IN): 28.76

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 5.2000 lb
