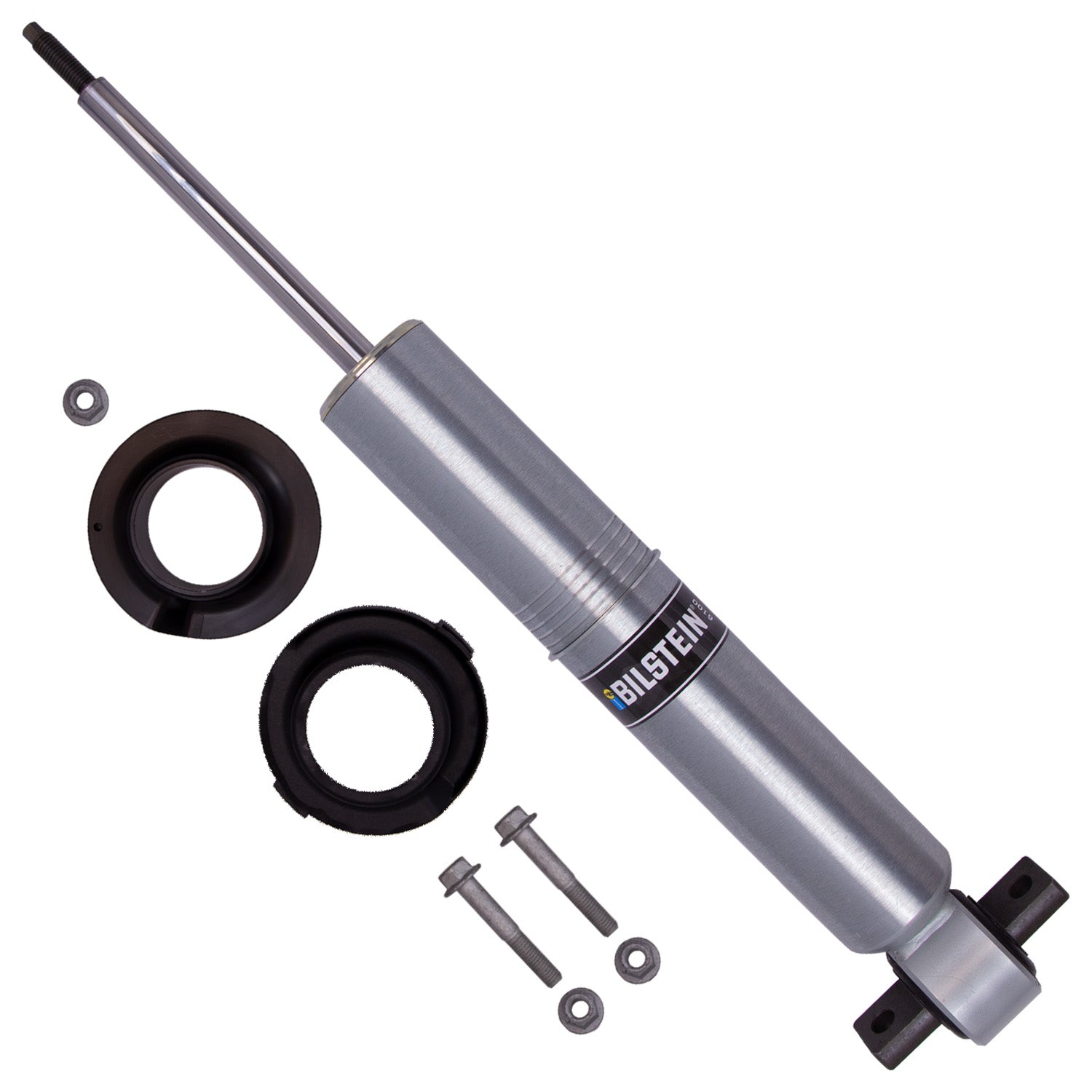

Bilstein Shock Absorbers 24-318594

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

Attributes:

• GTIN: 00651860887524
• Brand Name: Bilstein
• Extended Length (IN): 22.80
• Reservoir: No
• Boot Included: No
• Series: B8 6100 (Ride Height Adjustable)
• Body Design: Snap Ring Grooved Body (Coilover)
• Adjustable Damping: Non-Adjustable
• Body Diameter (ID): 60mm
• Internal Design: Monotube
• Extended Length (MM): 579.2
• Collapsed Length (IN): 16.62
• Lower Mount Type: Crossbar
• Finish: Zinc Plated
• Spring Seat Included: Yes
• Upper Mount Type: Stem
• Collapsed Length (MM): 422.2

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 12.3000 lb
