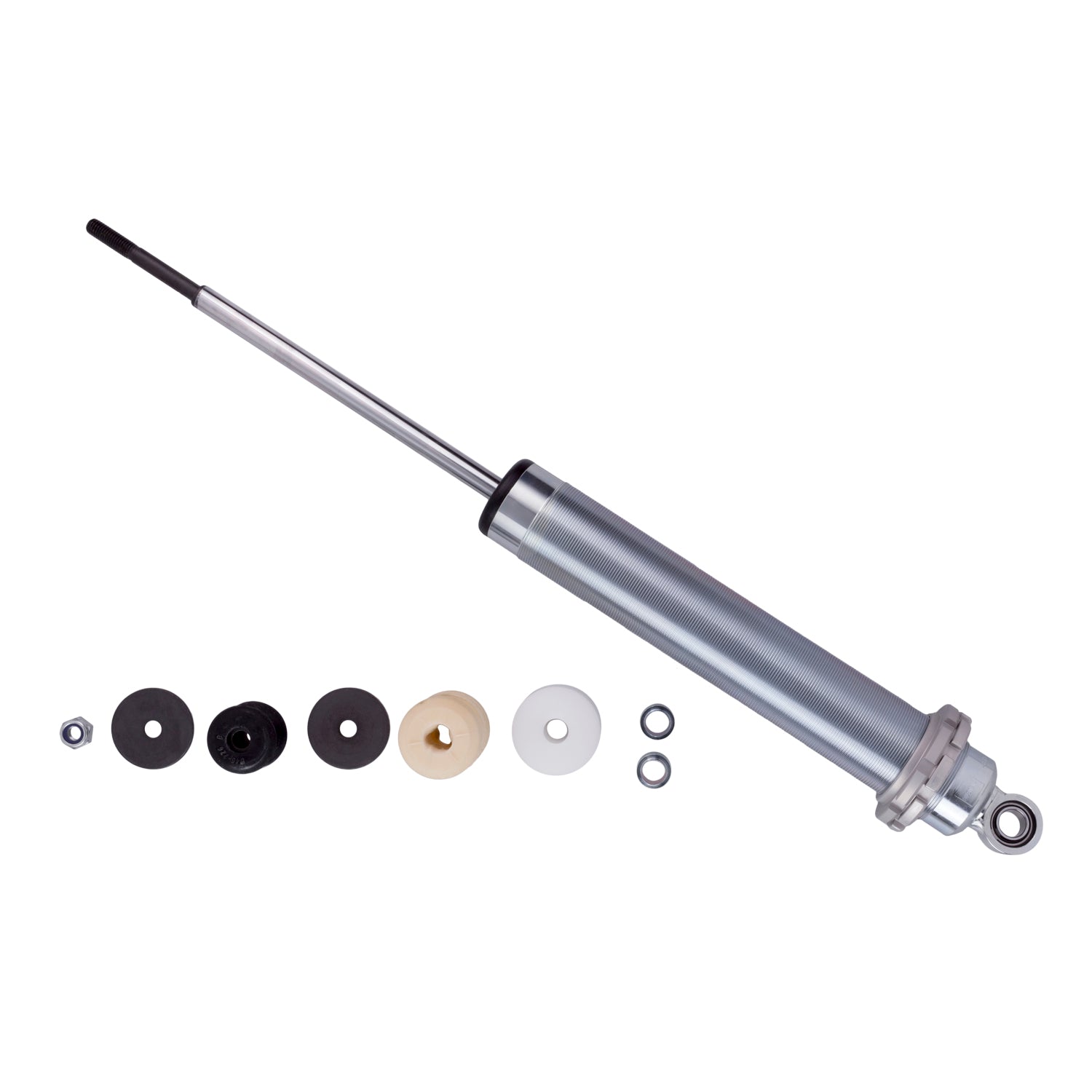

Bilstein Shock Absorbers 24-617321

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

Attributes:

• GTIN: 00651860753911
• Brand Name: Bilstein
• Compression @0.52m/s: 1875
• Lower Mount Type: 15mm Heim
• Body Diameter (ID): 46mm
• Upper Mount Type: Stem
• Collapsed Length (MM): 436.5
• Finish: Zinc Plated
• Valving Identifier: N/A
• Rebound @0.52m/s: 2040
• Collapsed Length (IN): 17.19
• Extended Length (IN): 21.57
• Internal Design: Monotube
• Spring Seat Included: Yes
• Boot Included: No
• Position: Rear
• Body Design: Threaded Body (Coilover)
• Extended Length (MM): 548.0
• Adjustable Damping: Non-Adjustable
• Series: Motorsports
• Body Material: Steel
• Piston Type: Linear

Extended Information:

• Country of Origin: Germany
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 3.5500 x 3.5500 inches
• Weight: 5.5600 lb
