Bilstein Shock Absorbers 25-194012

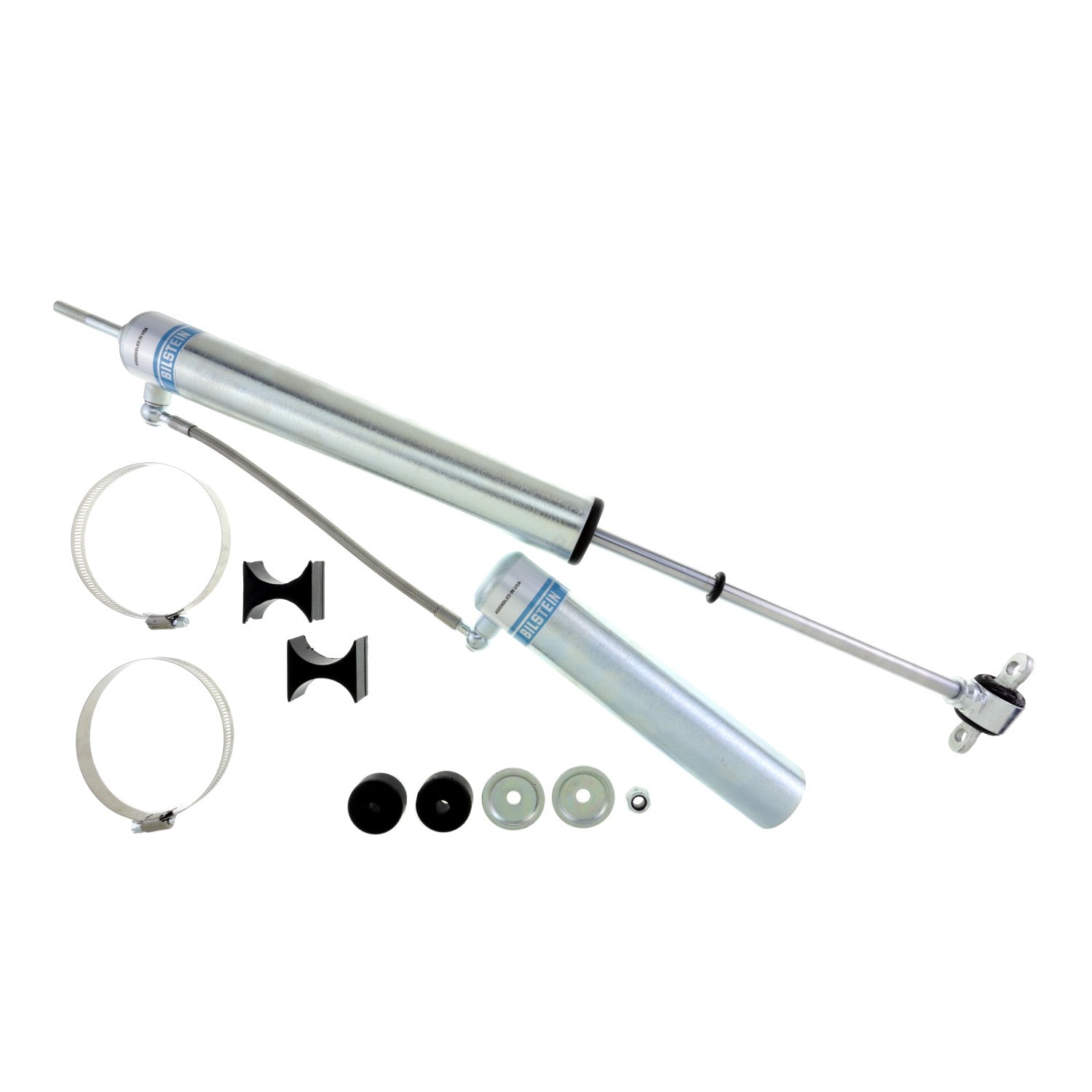

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Attributes:

• GTIN: 00651860667126
• Brand Name: Bilstein
• Body Diameter (ID): 46mm
• Billet Reservoir Clamp Included: No
• Adjustable Damping: Non-Adjustable
• Extended Length (MM): 670.4
• Series: B8 5160
• Optional Reservoir Clamp: 11-176015
• Collapsed Length (MM): 390.4
• Reservoir: Yes
• Body Design: Smooth Body (Non-Coilover)
• Internal Design: Monotube
• Spring Seat Included: No
• Lower Mount Type: Bar Pin
• Collapsed Length (IN): 15.37
• Extended Length (IN): 26.39
• Upper Mount Type: Stem
• Finish: Zinc Plated
• Boot Included: No

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 7.8900 lb
