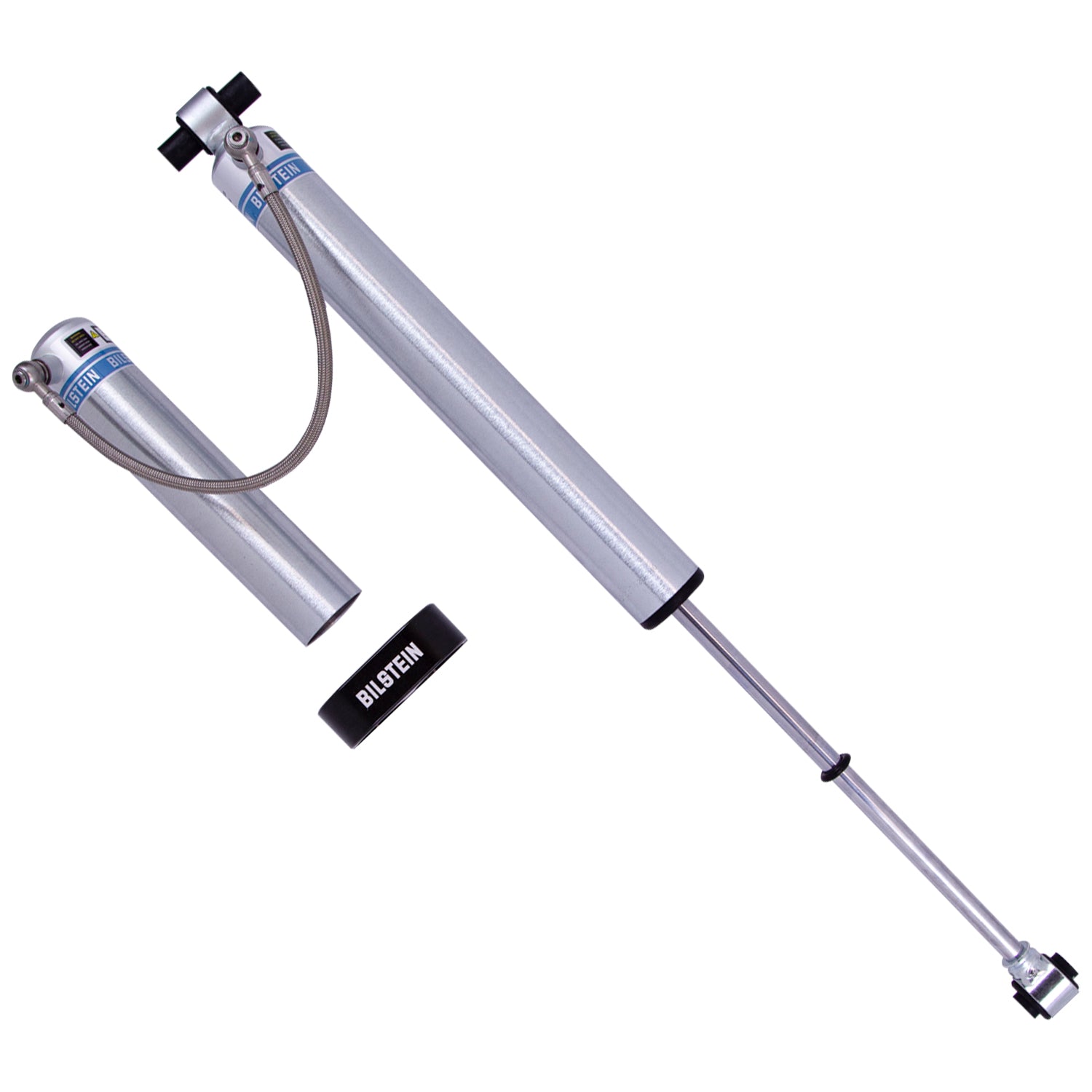

Bilstein Shock Absorbers 25-287523

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Attributes:

• GTIN: 00651860837901
• Brand Name: Bilstein
• Body Diameter (ID): 46mm
• Lower Mount Type: Eye 12.8mm
• Extended Length (IN): 29.38
• Adjustable Damping: Non-Adjustable
• Upper Mount Type: Eye 12.8mm
• Finish: Zinc Plated
• Collapsed Length (MM): 442.0
• Extended Length (MM): 746.2
• Billet Reservoir Clamp Included: Yes
• Internal Design: Monotube
• Series: B8 5160
• Optional Reservoir Clamp: N/A
• Spring Seat Included: No
• Body Design: Smooth Body (Non-Coilover)
• Boot Included: No
• Collapsed Length (IN): 17.40
• Reservoir: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 8.6000 lb
