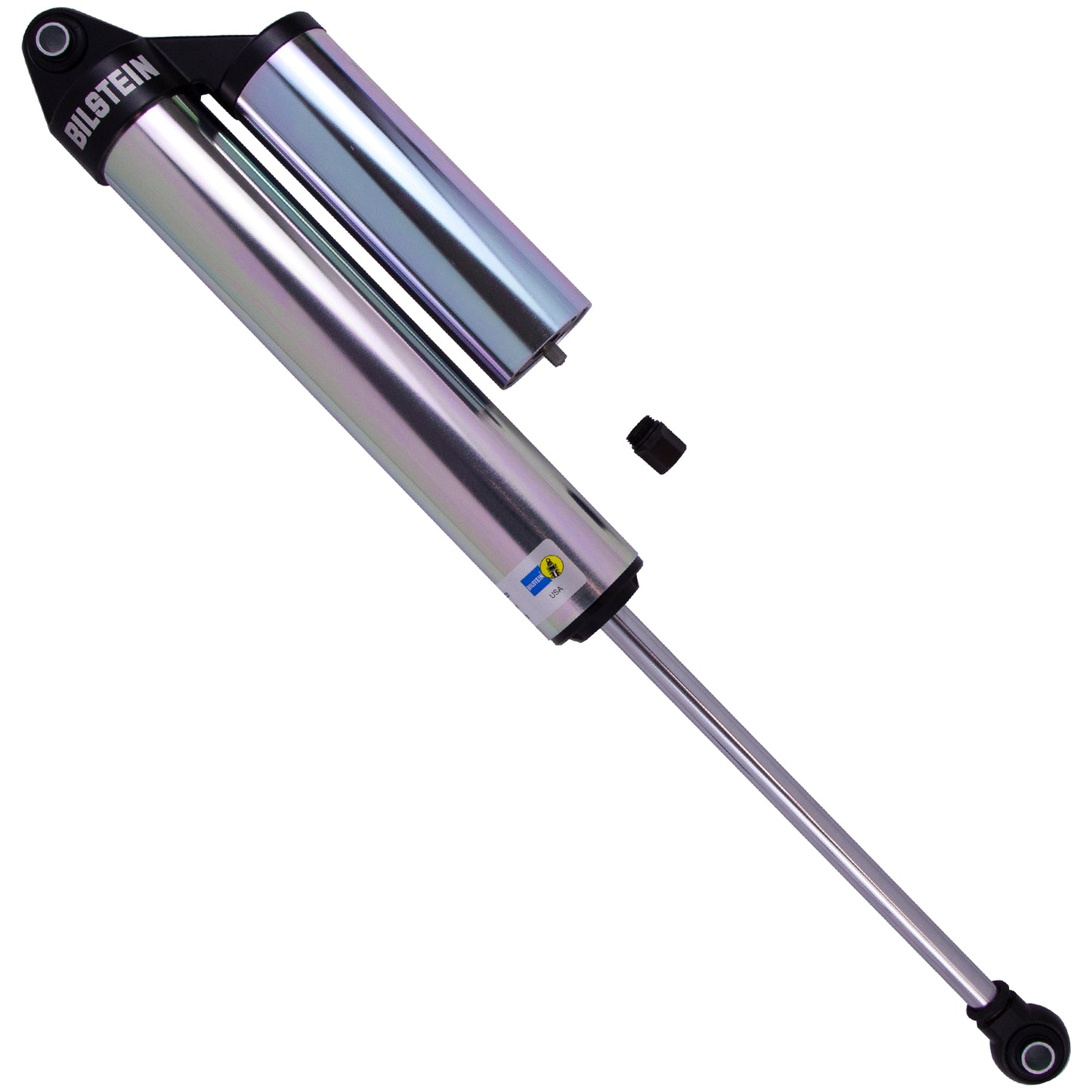

Bilstein Shock Absorbers 25-312522

Bilstein B8 8100 reservoir shock absorbers are a large bore 60mm direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Each B8 8100 offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 will allow you to tame the terrain in comfort.

Attributes:

• GTIN: 00651860863061
• Brand Name: Bilstein
• Finish: Zinc Plated
• Spring Seat Included: No
• Extended Length (IN): 29.33
• Collapsed Length (IN): 17.57
• Body Diameter (ID): 60mm
• Upper Mount Type: Eye 14.1mm
• Adjustable Damping: Non-Adjustable
• Reservoir: Yes
• Lower Mount Type: Eye 14.1mm
• Extended Length (MM): 745.0
• Internal Design: Monotube
• Boot Included: No
• Collapsed Length (MM): 446.3
• Body Design: 60mm ID Smooth Body (Non-Coilover)
• Series: B8 8100

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.2500 x 9.5000 x 5.0000 inches
• Weight: 17.2000 lb
