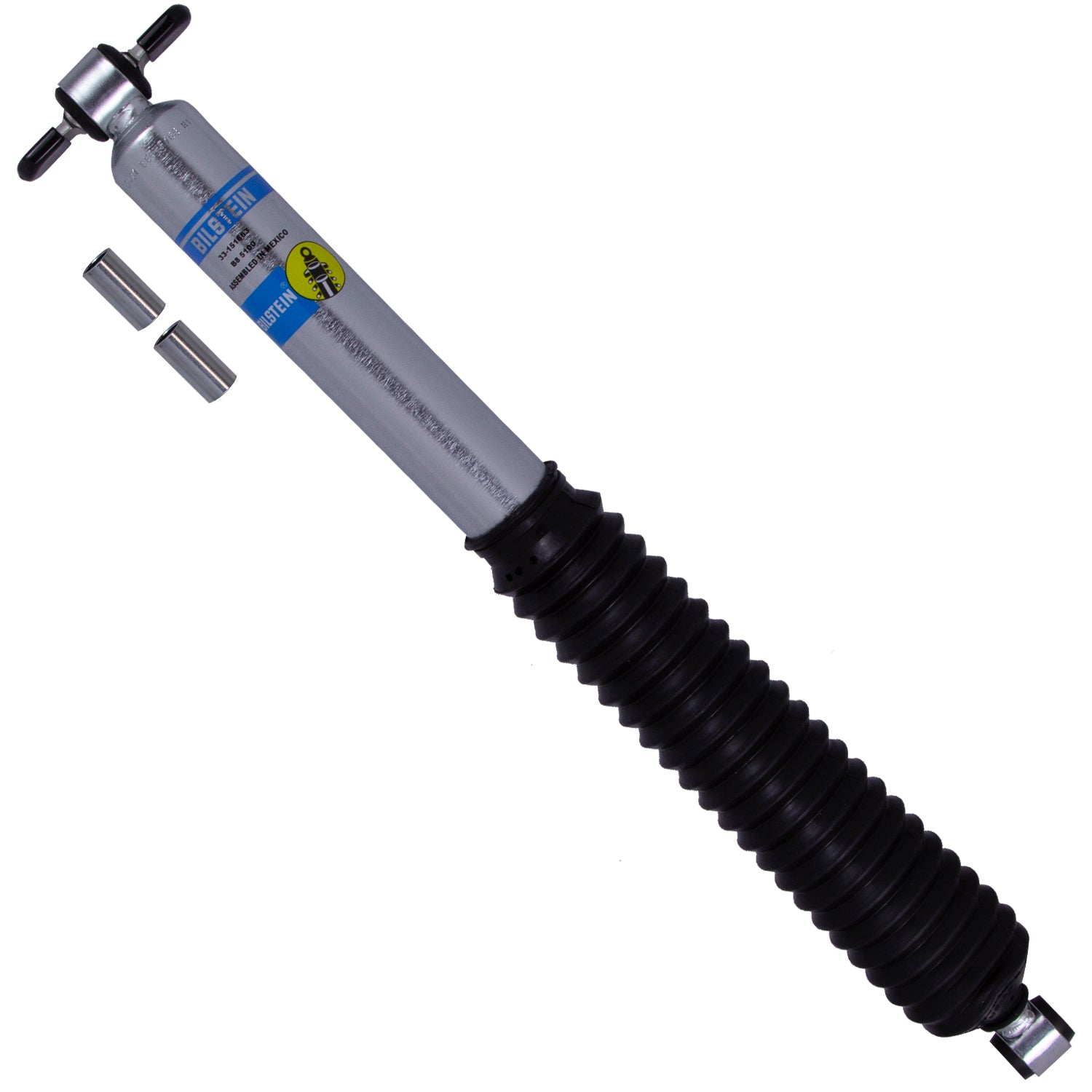

Bilstein Shock Absorbers 33-151663

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860604701
• Brand Name: Bilstein
• Internal Design: Monotube
• Collapsed Length (MM): 404.0
• Adjustable Damping: Non-Adjustable
• Series: B8 5100
• Collapsed Length (IN): 15.91
• Upper Mount Type: Bar Pin
• Extended Length (IN): 25.93
• Body Diameter (ID): 46mm
• Spring Seat Included: No
• Lower Mount Type: Eye 16mm
• Finish: Zinc Plated
• Extended Length (MM): 658.5
• Body Design: Smooth Body (Non-Coilover)
• Reservoir: No
• Boot Included: Black Bellows

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 5.3100 lb
