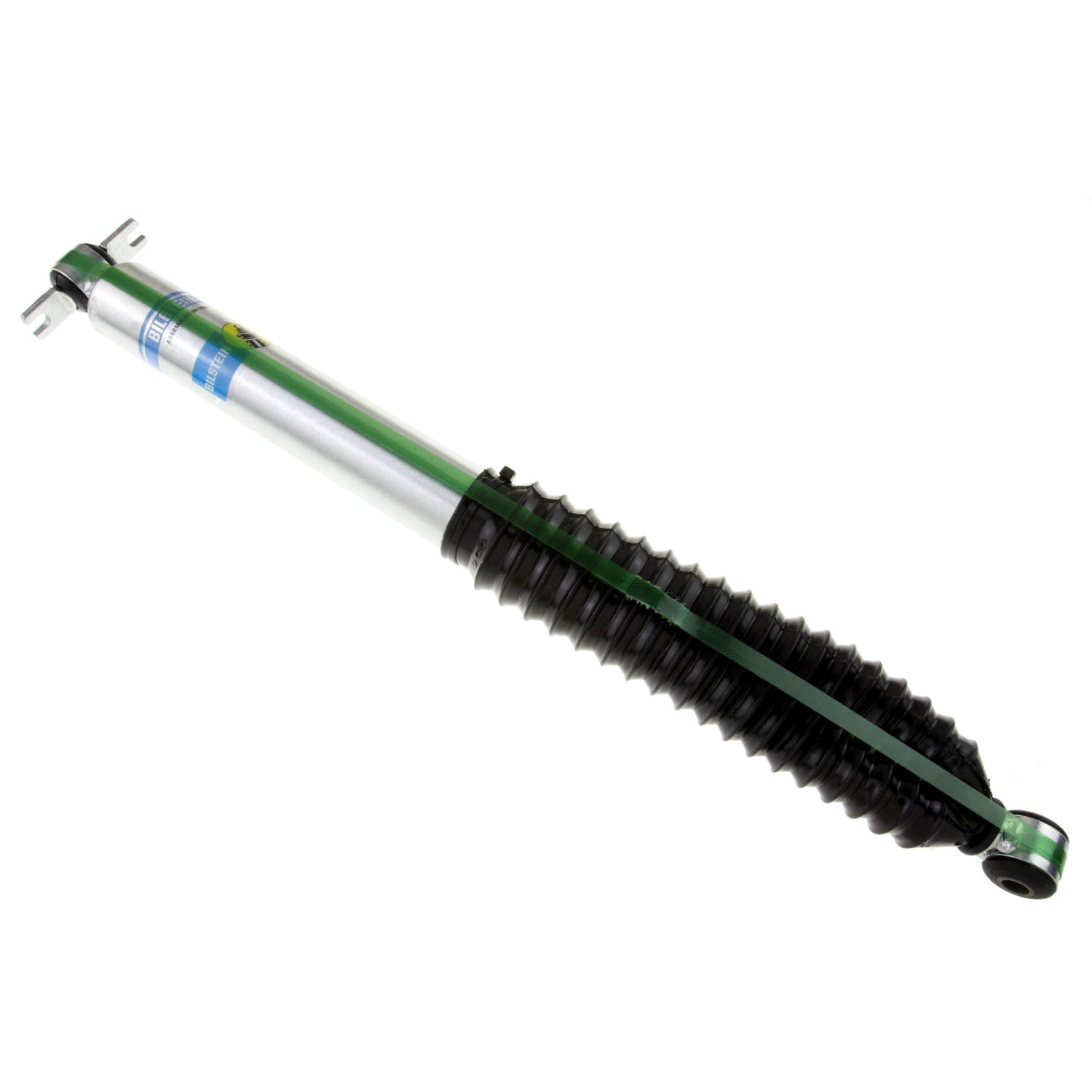

Bilstein Shock Absorbers 33-185514

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860453644
• Brand Name: Bilstein
• Body Design: Smooth Body (Non-Coilover)
• Reservoir: No
• Extended Length (IN): 25.00
• Collapsed Length (MM): 391.5
• Collapsed Length (IN): 15.41
• Extended Length (MM): 635.0
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Boot Included: Blue Bellows
• Finish: Zinc Plated
• Upper Mount Type: Bar Pin
• Body Diameter (ID): 46mm
• Series: B8 5100
• Lower Mount Type: Eye 12.7mm
• Internal Design: Monotube

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 3.5500 x 3.5500 inches
• Weight: 5.2000 lb
