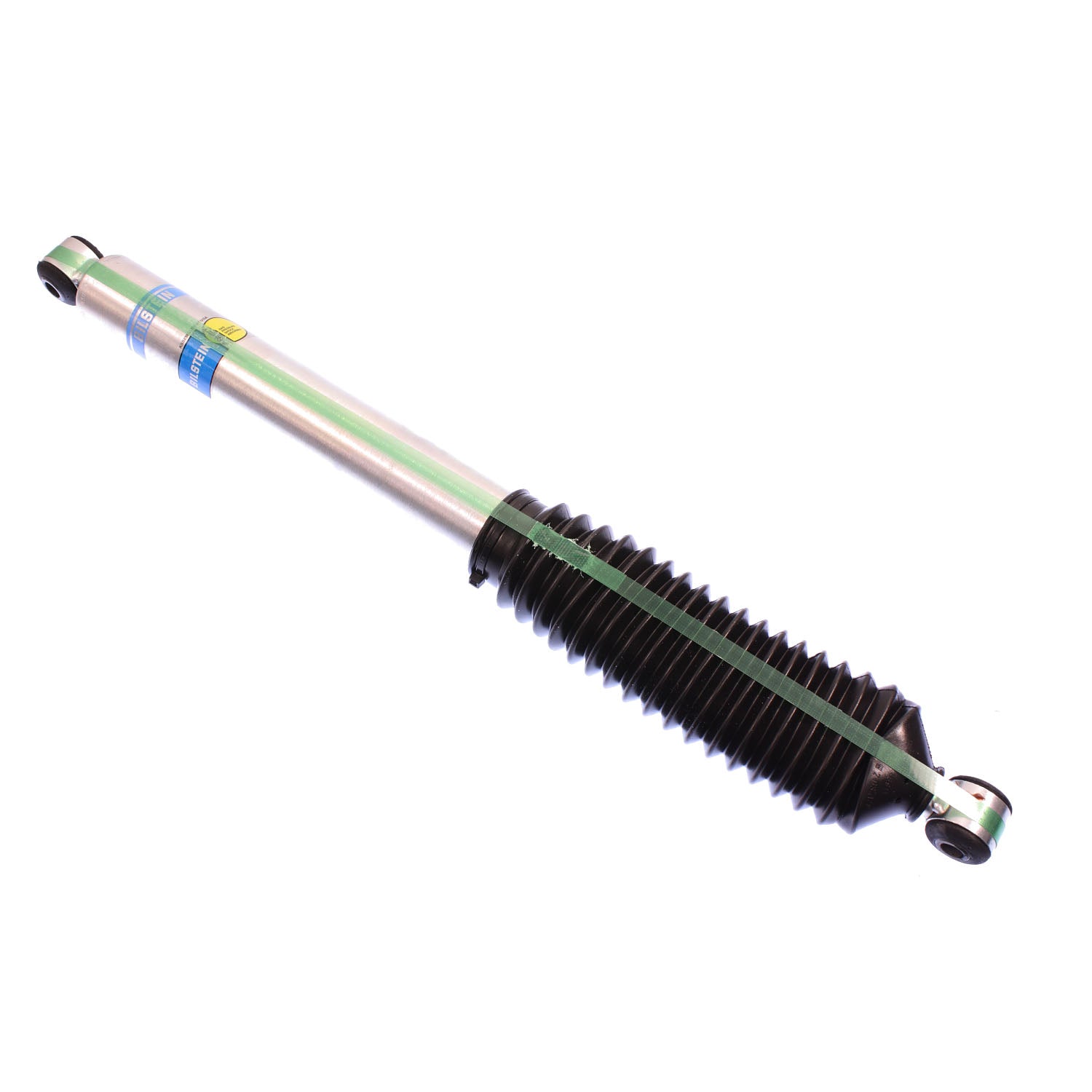

Bilstein Shock Absorbers 33-186009

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Attributes:

• GTIN: 00651860490311
• Brand Name: Bilstein
• Extended Length (MM): 688.5
• Spring Seat Included: No
• Lower Mount Type: Eye 12mm
• Upper Mount Type: Eye 12mm
• Adjustable Damping: Non-Adjustable
• Boot Included: Black Bellows
• Body Diameter (ID): 46mm
• Series: B8 5100
• Body Design: Smooth Body (Non-Coilover)
• Extended Length (IN): 27.11
• Reservoir: No
• Collapsed Length (MM): 424.0
• Finish: Zinc Plated
• Collapsed Length (IN): 16.69
• Internal Design: Monotube

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.6300 lb
