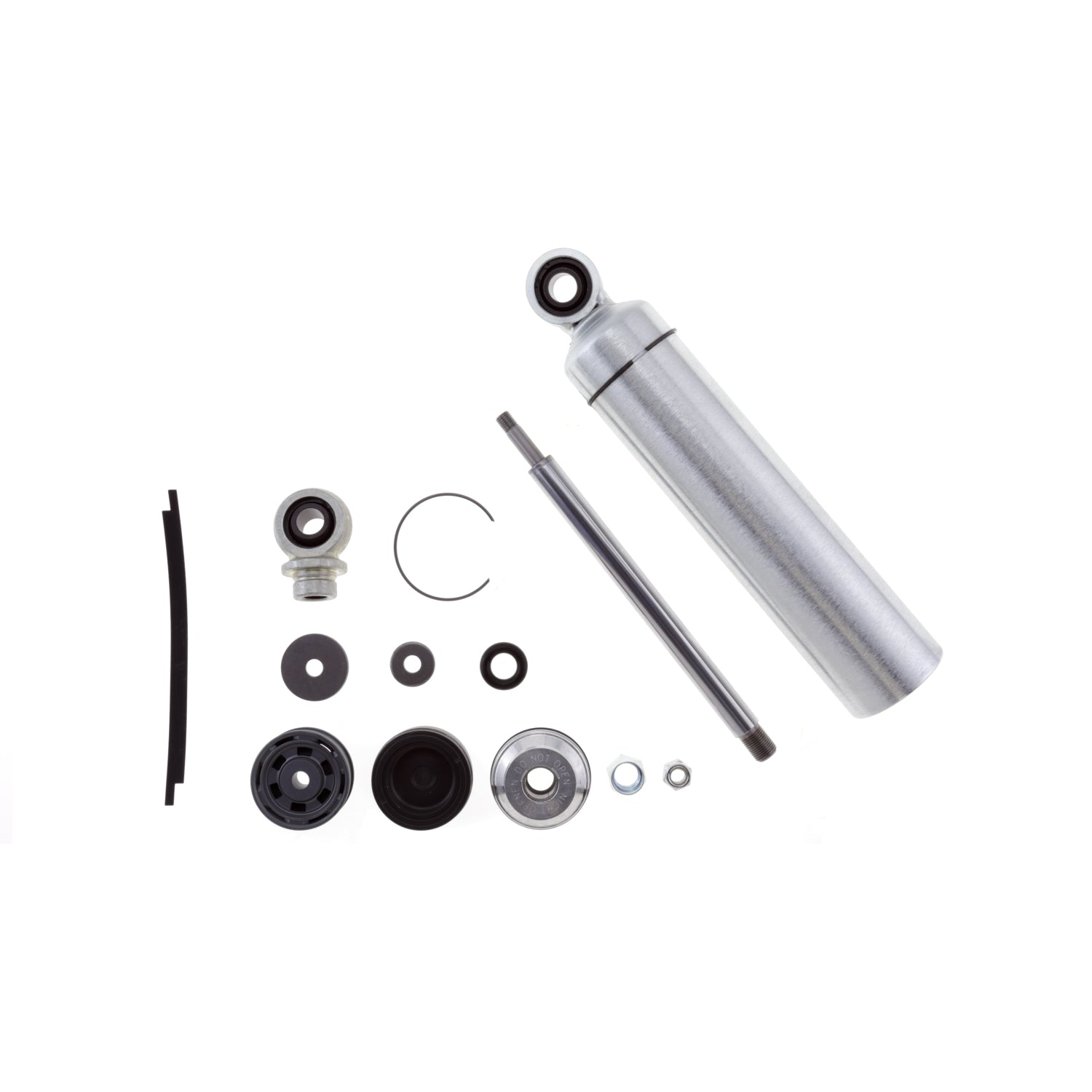

Bilstein Shock Absorbers 33-243429

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Attributes:

• GTIN: 00651860750309
• Brand Name: Bilstein
• Series: SZ Series
• Extended Length (IN): 16.28
• Body Diameter (ID): 46mm
• Lower Mount Type: 1/2in Heim
• Spring Seat Included: No
• Boot Included: No
• Extended Length (MM): 413.5
• Adjustable Damping: Non-Adjustable
• Piston Type: Digressive
• Body Material: Steel
• Body Design: Smooth Body (Non-coilover)
• Valving Identifier: Digressive Dry Kit (no valving)
• Collapsed Length (IN): 11.08
• Upper Mount Type: 1/2in Heim
• Internal Design: Monotube
• Collapsed Length (MM): 281.5
• Finish: Zinc Plated

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 2.9500 lb
