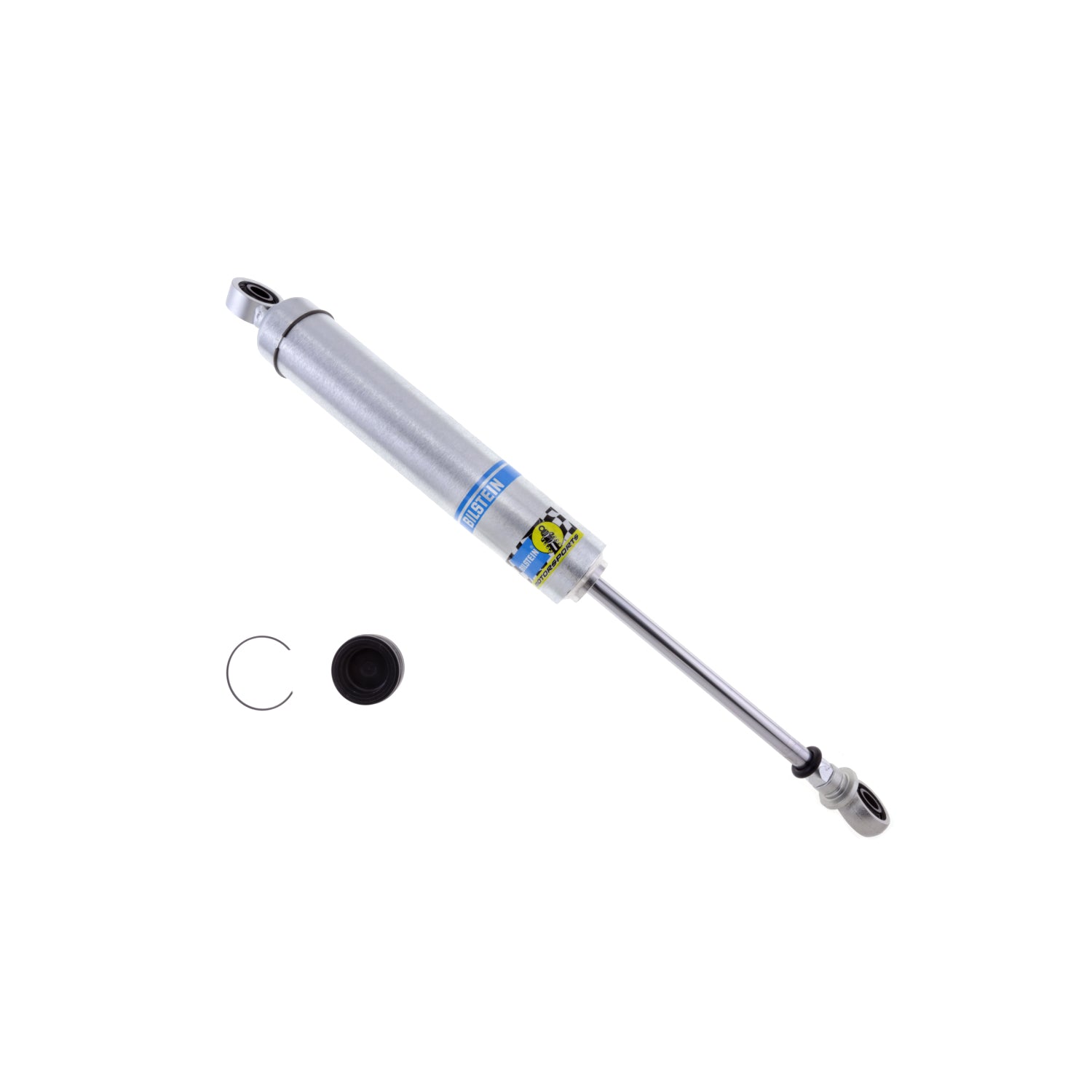

Bilstein Shock Absorbers 33-243443

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Attributes:

• GTIN: 00651860750323
• Brand Name: Bilstein
• Extended Length (MM): 510.0
• Finish: Zinc Plated
• Extended Length (IN): 20.08
• Collapsed Length (IN): 13.15
• Internal Design: Monotube
• Spring Seat Included: No
• Body Diameter (ID): 46mm
• Boot Included: No
• Body Design: Smooth Body (Non-coilover)
• Adjustable Damping: Non-Adjustable
• Body Material: Steel
• Collapsed Length (MM): 334.0
• Upper Mount Type: 1/2in Heim
• Valving Identifier: Digressive Dry Kit (no valving)
• Lower Mount Type: 1/2in Heim
• Piston Type: Digressive
• Series: SZ Series

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 3.3500 lb
