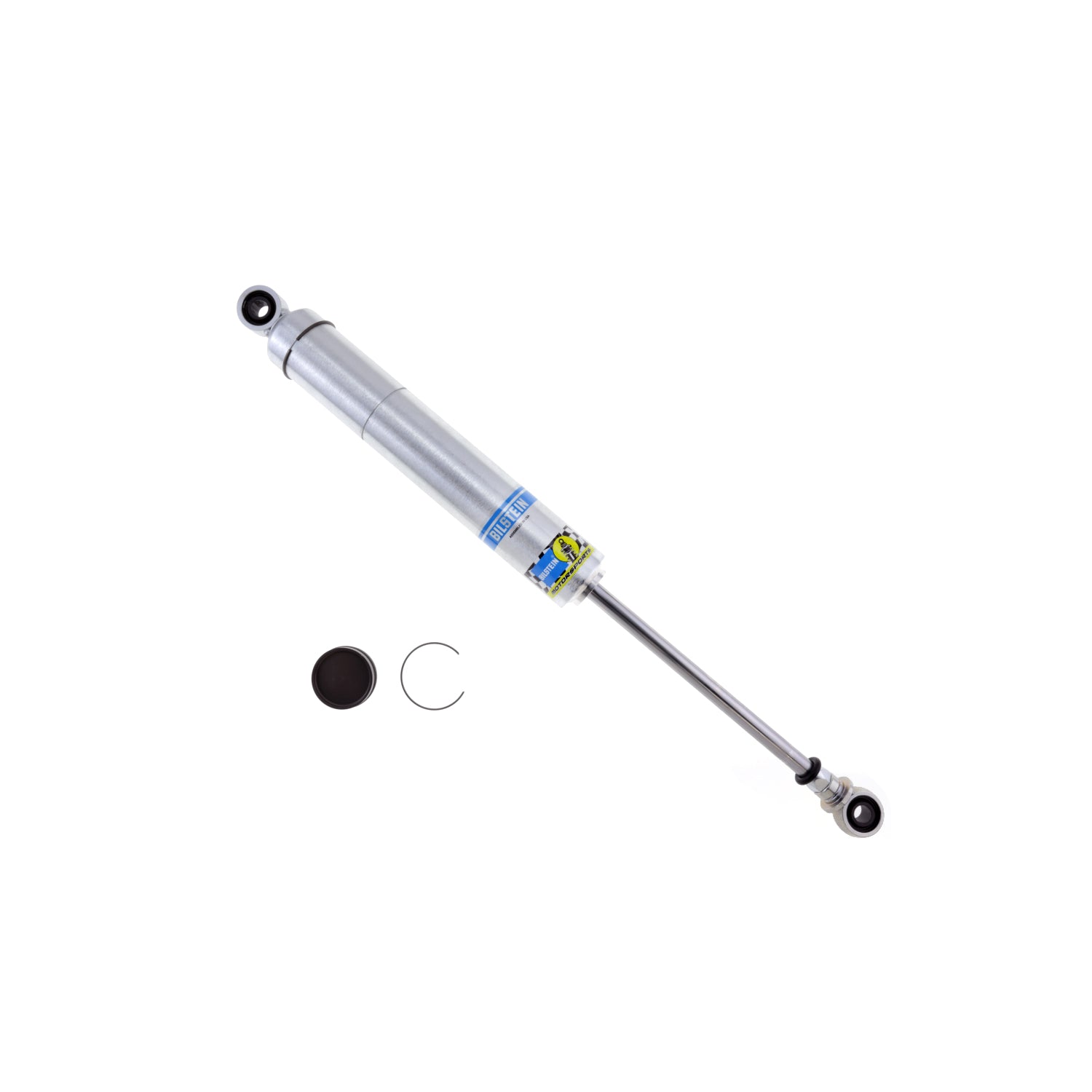

Bilstein Shock Absorbers 33-243450

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Attributes:

• GTIN: 00651860750330
• Brand Name: Bilstein
• Collapsed Length (IN): 14.25
• Valving Identifier: Digressive Dry Kit (no valving)
• Body Design: Smooth Body (Non-coilover)
• Series: SZ Series
• Lower Mount Type: 1/2in Heim
• Extended Length (IN): 22.20
• Boot Included: No
• Internal Design: Monotube
• Extended Length (MM): 564.0
• Piston Type: Digressive
• Spring Seat Included: No
• Collapsed Length (MM): 362.0
• Body Material: Steel
• Body Diameter (ID): 46mm
• Upper Mount Type: 1/2in Heim
• Adjustable Damping: Non-Adjustable
• Finish: Zinc Plated

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 3.5500 lb
